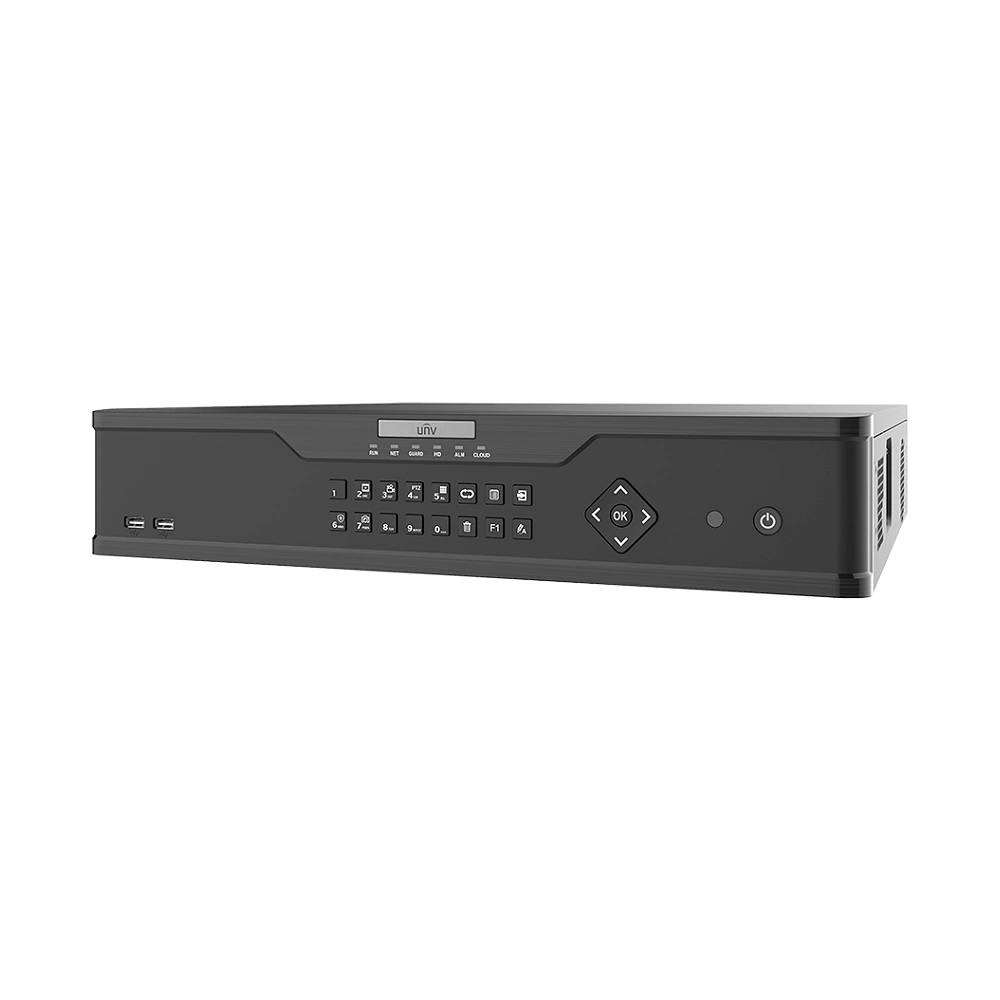

NVR308-64X 64-ch 8 SATA Network Video Recorder Up to 12 MP

Name: NVR308-64X 64-ch 8 SATA Network Video Recorder Up to 12 MP
Brand: UNV
SKU: NVR308-64X

SKU: NVR308-64X

64-ch 8 SATA Network Video Recorder Up to 12 MP

11 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Support Ultra H.265/H.265/H.264 video formats
64-channel input
Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840×2160) resolution
HDMI1, HDMI2, VGA independent outputs provided
Up to 12 Megapixels resolution recording
Support RAID 0, 1, 5, 6, 10
8 SATA HDDs, Up to 10TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
Support N+1 Hot spare
Support for 12V Power output
ANR technology to enhance the storage reliability when the network is disconnected

Product Manual

No related firmware found.

Additional information

Channels	64 Channel
Two-way Audio Input	1-ch , RCA
Incoming/Outgoing Bandwidth	384Mbps /384Mbps
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	16-ch
FTP/Schedule/Event Snapshot	64-ch snapshot, up to 4K resolution
Decoding format	Ultra 265, H.265, H.264
IP Video Input	64-ch
Capability	2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
HDD Support	8 HDD
Capacity	up to 10TB for each HDD
eSATA	1 eSATA interface
Interface Network	2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Power	100 to 240 VAC
Dimensions	442mm ×426mm× 89mm (17.4" × 16.8"× 3.5")
Weight (without HDD)	≤ 5.7Kg (12.57lb)
Certification	UL; CE; FCC; RoHS; WEEE
