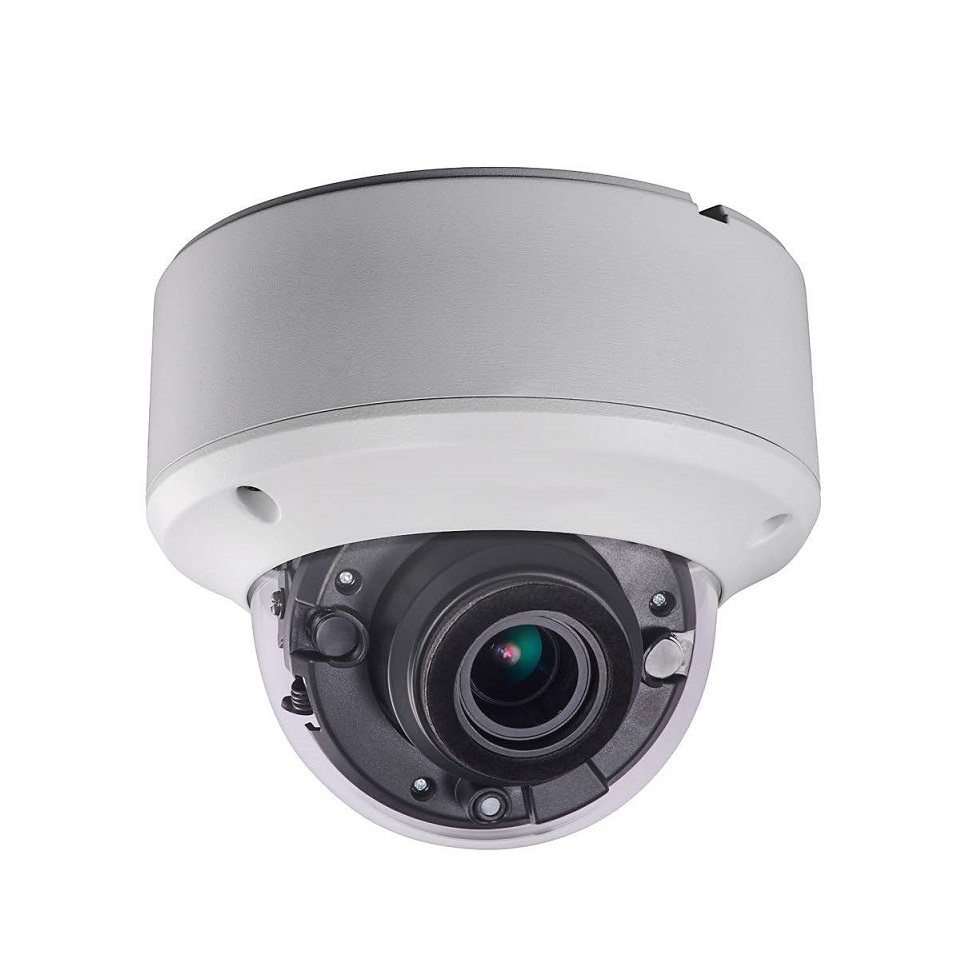

AC346D-OD4Z 5 MP ULTRA-LOW LIGHT EXIR MOTORIZED DOME CAMERA
Click to enlarge

AC346D-OD4Z 5 MP ULTRA-LOW LIGHT EXIR MOTORIZED DOME CAMERA

SKU: AC346D-OD4Z

5 MP ULTRA-LOW LIGHT EXIR MOTORIZED DOME CAMERA

Add to wishlist
Add to compare
20 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 5 MP high performance CMOS
  • Auto focus
  • 2560 x 1944 resolution
  • 2.7 mm to 13.5 mm motorized varifocal lens
  • EXIR 2.0, smart IR, up to 60 m IR distance
  • OSD menu, 3D DNR, 130 dB true WDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67, IK10
  • Up the coax (UTC-C)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Camera Style

Lens Type

Signal System

PAL/NTSC

Max. Resolution

2560 × 1944

Minimum Illumination

0 Lux with IR

,

AGC ON)

,

Color: 0.003 Lux@(F1.2

Shutter Speed

PAL: 1/25s to 1/50000s NTSC: 1/30s to 1/50000s

Lens Size

Horizontal Field of View

92.3° to 29.3°

Lens Mount

Φ14

Day & Night

IR cut filter

Angle Adjustment

Pan:0°to 355°;Tilt: 0°to 75°;Rotate:0°to 355°

Synchronization

Internal synchronization

Video Output

1 HD analog output

Power

‐A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC

Power Consumption

Max 8.0W

Protection

IK10

,

IP67

Material

Metal

IR Range

Up to 60 m

Dimension

Φ145.2 mm×124.1 mm(Φ7.1"×4.9")

Weight

Approx.640 g(1.41 lb.)
