IPC3614SR-ADF40KM-H 4MP HD Easystar WDR Fixed IR Eyeball Network Camera

SKU: IPC3614SR-ADF40KM-H
Sensor

1/3.0" CMOS

Min. Illumination

Color: 0.003 Lux (F1.6

,

AGC ON)

,

0 Lux with IR on

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 4.4 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.32 kg (0.71 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

IPC3614SR-ADF40KMC-DL-H 4MP Double Light WDR Intelligence Eyeball Network Camera

SKU: IPC3614SR-ADF40KMC-DL-H
Sensor

1/3.0" CMOS

Min. Illumination

Color: 0.003 Lux (F1.6

,

AGC ON)

,

0 Lux with light

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø110.5 mm × 97.2 mm (Ø4.4" × 3.8") (Ø × H)

Weight

0.32 kg (0.71 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

Power Consumption

Max. 8.0 W

IPC3615LB-AF28K-DL 5MP HD ColorHunter Fixed Eyeball Network Camera

SKU: IPC3615LB-AF28K-DL
Camera Resolutions

Lens Type

Resolution

5MP

Image Sensor

1/3.0" CMOS

Minimum Illumination

Colour: 0.01 lux(F1.6

,

AGC ON) 0 lux with IR

Day/Night

IR-cut filter with auto switch(ICR)

Adjustment angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

WDR

DWDR

Camera Style

Lens Size

Illumination Distance

30m

Wavelength

850nm

Video Compression

Ultra265;H.265;H.264;MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD,up to 128GB

Network Storage

ANR

,

NAS(NFS)

Audio

Power

DC 12V±25%

,

PoE (IEEE 802.3af)

Power Interface

5.5mm coaxial power plug

Dimensions

Φ126×93.6 mm(Φ5.0”x3.7”)

Weight

0.29kg(0.64lb)

Material

Metal+Plastic

Surge protection

4KV

IPC3615SB-ADF28KMC-I0 5MP Tri-Guard Fixed Dual-light Turret Network Camera

SKU: IPC3615SB-ADF28KMC-I0
Sensor

1/2.7" CMOS

Min. Illumination

Color: 0.002 Lux (F1.6

,

AGC ON)

,

0 Lux with light

Camera Resolutions

Lens Size

Lens Type

Camera Style

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 7.5 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.44 kg (0.970 lb)

Material

Metal + Plastic

Surge Protection

4 KV

Protection

IP67

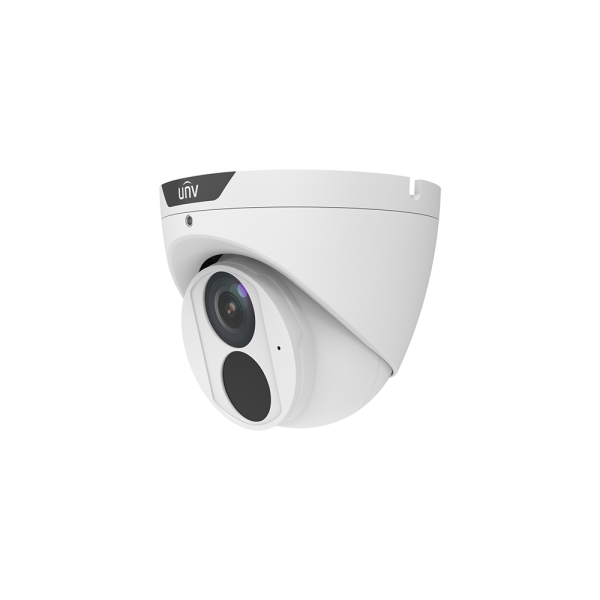

IPC3615SB-ADF40KM-I0 5MP LightHunter Fixed IR Turret Network Camera

SKU: IPC3615SB-ADF40KM-I0
Sensor

1/2.7" CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Min. Illumination

Color: 0.002 Lux (F1.6

,

AGC ON)

,

0 Lux with light

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.6

Illumination Distance (IR)

30 m (98.5 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 4.0 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø110.5 mm × 94.1 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.42 kg (0.93 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

IPC3615SB-ADF40KMC-I0 5MP Tri-Guard Fixed Dual-light Turret Network Camera

SKU: IPC3615SB-ADF40KMC-I0
Sensor

1/2.7" CMOS

Min. Illumination

Color: 0.002 Lux (F1.6

,

AGC ON)

,

0 Lux with light

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 7.5 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.44 kg (0.970 lb)

Material

Metal + Plastic

Protection

IP67

Surge Protection

4 KV

IPC3615SR-ADF28KM-H 5MP HD Easystar WDR Fixed IR Eyeball Network Camera

SKU: IPC3615SR-ADF28KM-H
Sensor

1/2.7" CMOS

Min. Illumination

Color: 0.003 Lux (F1.6

,

AGC ON)

,

0 Lux with IR on

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.32 kg (0.71 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

Power Consumption

Max. 4.4 W

IPC3615SR-ADF40KM-H 5MP HD Easystar WDR Fixed IR Eyeball Network Camera

SKU: IPC3615SR-ADF40KM-H
Sensor

1/2.7" CMOS

Min. Illumination

Color: 0.003 Lux (F1.6

,

AGC ON)

,

0 Lux with IR on

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.32 kg (0.71 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

Power Consumption

Max. 4.4 W

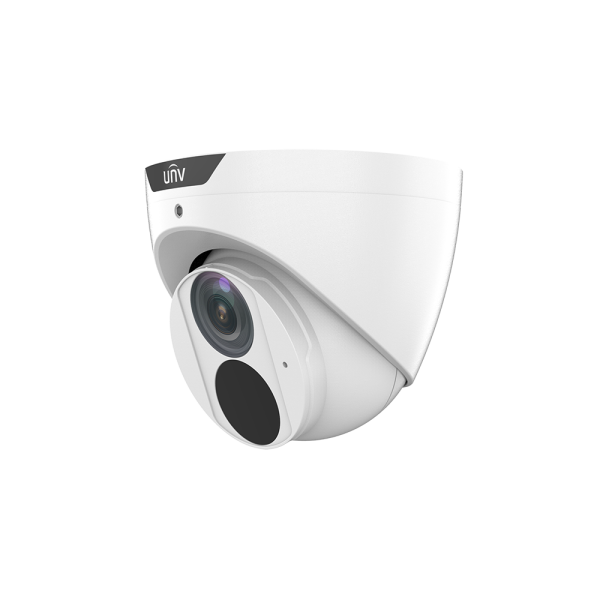

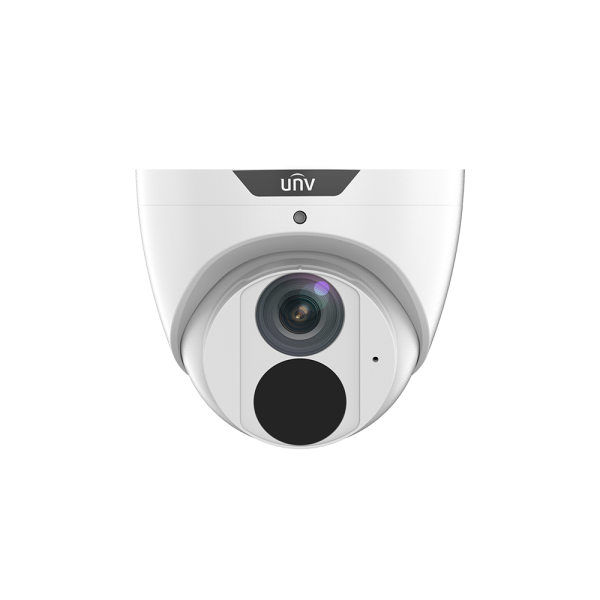

IPC3618SB-ADF28KM-I0 8MP LightHunter Fixed IR Turret Network Camera

SKU: IPC3618SB-ADF28KM-I0
Sensor

1/2.7" CMOS

Min. Illumination

Color: 0.0025 Lux (F1.6

,

AGC ON)

,

0 Lux with IR on

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.6

Illumination Distance (IR)

30 m (98.5 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 6.0 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.41 kg (0.90 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

IPC3618SB-ADF40KM-I0 8MP LightHunter Fixed IR Turret Network Camera

SKU: IPC3618SB-ADF40KM-I0
Sensor

1/2.7" CMOS

Min. Illumination

Color: 0.0025 Lux (F1.6

,

AGC ON)

,

0 Lux with IR on

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.6

Illumination Distance (IR)

30 m (98.5 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 6.0 W

Audio

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.41 kg (0.90 lb)

Material

Metal

Protection

IP67

Surge Protection

4 KV

IPC3618SB-ADF40KMC-I0 8MP Tri-Guard Fixed Dual-light Turret Network Camera

SKU: IPC3618SB-ADF40KMC-I0
Sensor

1/2.8" CMOS

Min. Illumination

Color: 0.0025 Lux (F1.6

,

AGC ON)

,

0 Lux with ligh

Camera Resolutions

Lens Size

Lens Type

WDR

120 dB

Camera Style

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 80°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 8.0 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.45 kg (0.992 lb)

Material

Metal + Plastic

Surge Protection

4 KV

Protection

IP67

IPC3618SR-ADF28KM-H 8MP HD Easystar WDR Fixed IR Eyeball Network Camera

SKU: IPC3618SR-ADF28KM-H
Sensor

1/2.8" CMOS

Min. Illumination

Support Easystar: color: 0.005 Lux ( F1.6

,

AGC ON)

,

0 Lux with IR on

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.32 kg (0.71 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

Power Consumption

Max. 5.0 W

IPC3618SR-ADF40KM-H 8MP HD Easystar WDR Fixed IR Eyeball Network Camera

SKU: IPC3618SR-ADF40KM-H
Sensor

1/2.8" CMOS

Min. Illumination

Support Easystar: color: 0.005 Lux ( F1.6

,

AGC ON)

,

0 Lux with IR on

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)

Weight

0.32 kg (0.71 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

Power Consumption

Max. 5.0 W

IPC3618SR-ADF40KMC-DL-H 8MP ColorHunter Fixed Dual-light Turret Network Camera

SKU: IPC3618SR-ADF40KMC-DL-H
Sensor

1/2.8" CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Min. Illumination

Color: 0.005 Lux (F1.6

,

AGC ON)

,

0 Lux with light

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 90°

,

Rotate: 0° to 360°

S/N

>56 dB

IR On/Off Control

Auto/Manual

Iris

F1.6

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø110.5 mm × 97.2 mm (Ø4.4" × 3.8") (Ø × H)

Weight

0.32 kg (0.71 lb)

Material

Metal

Power Consumption

Max. 5.0 W

Surge Protection

4 KV

Protection

IP67

IPC3624SR-ADF28KM-WP 4MP WDR ColourHunter Eyeball Network Camera

SKU: IPC3624SR-ADF28KM-WP
Sensor

1/1.8" CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.0

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Power

DC 12 V±25%

,

PoE (IEEE 802.3af) Power consumption: Max. 2.8 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)

Weight

0.48 kg (1.06 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

IPC3624SR-ADF40KM-WP 4MP WDR ColourHunter Eyeball Network Camera

SKU: IPC3624SR-ADF40KM-WP
Sensor

1/1.8" CMOS

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.0

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af) Power consumption: Max. 2.8 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)

Weight

0.48 kg (1.06 lb)

Material

Metal

Protection

IP67

Surge Protection

4 KV

IPC3628SR-ADF28KM-WP 8MP ColorHunter Wise-ISP Warm Light Turret Network Camera

SKU: IPC3628SR-ADF28KM-WP
Sensor

1/1.8" CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 90°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.0

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)

Weight

0.48 kg (1.06 lb)

Material

Metal

Power Consumption

Max. 3.9 W

Surge Protection

4 KV

Protection

IP67

IPC3628SR-ADF40KM-WP 8MP ColorHunter Wise-ISP Warm Light Turret Network Camera

SKU: IPC3628SR-ADF40KM-WP
Sensor

1/1.8" CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 90°

,

Rotate: 0° to 360°

S/N

>52 dB

IR On/Off Control

Auto/Manual

Iris

F1.0

Illumination Distance (IR)

30 m (98.4 ft)

Wavelength

850nm

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 6144 Kbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

Micro SD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Network Interface

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)

Weight

0.48 kg (1.06 lb)

Material

Metal

Power Consumption

Max. 3.9 W

Surge Protection

4 KV

Protection

IP67
