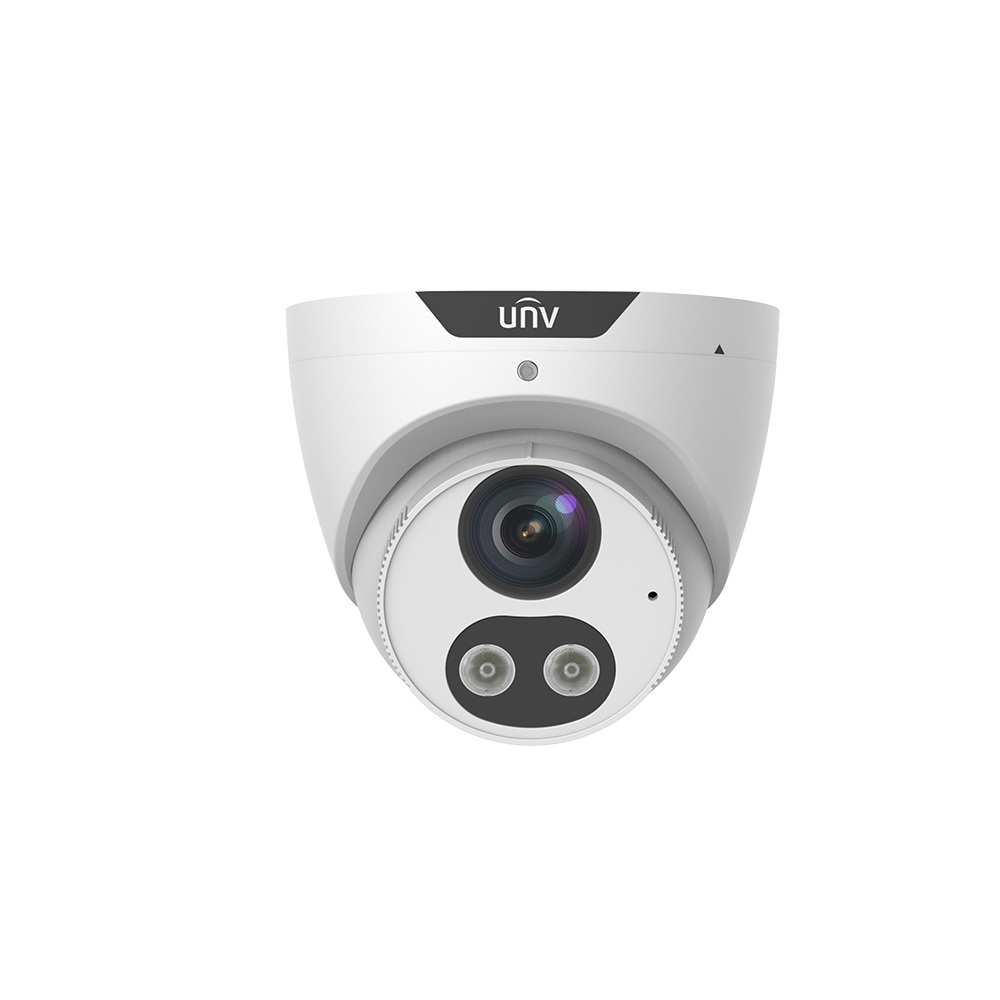

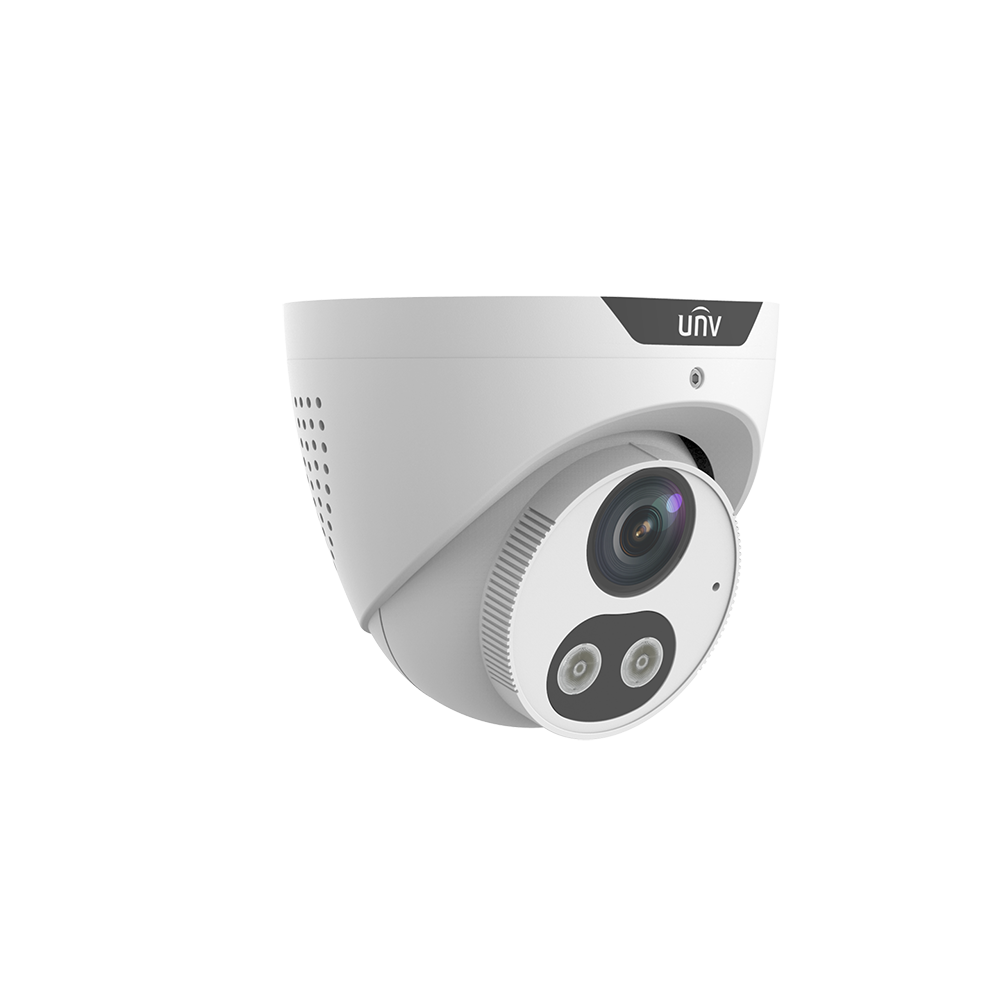

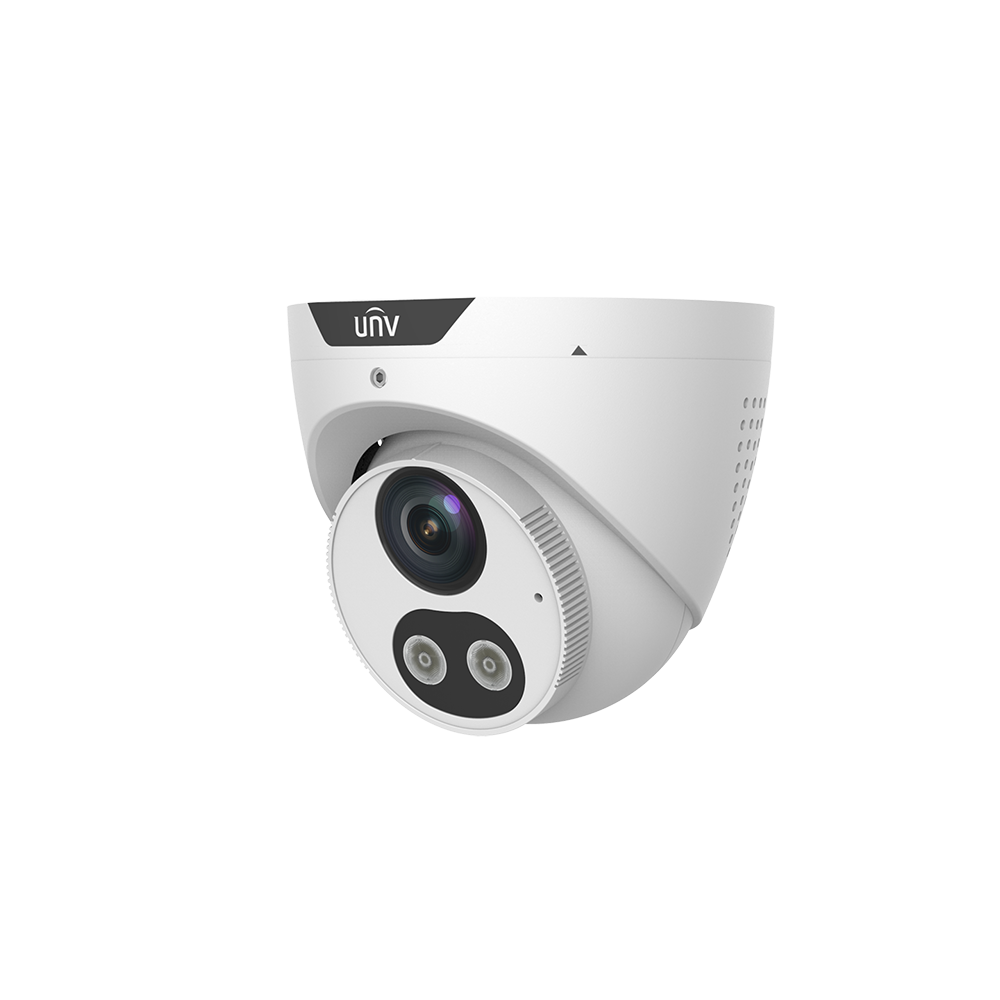

IPC3618SB-ADF40KMC-I0 8MP Tri-Guard Fixed Dual-light Turret Network Camera

Name: IPC3618SB-ADF40KMC-I0 8MP Tri-Guard Fixed Dual-light Turret Network Camera
Brand: UNV
SKU: IPC3618SB-ADF40KMC-I0

SKU: IPC3618SB-ADF40KMC-I0

8MP Tri-Guard Fixed Dual-light Turret Network Camera

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

High quality image with 8 MP, 1/2.8″ CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
Supports sound and light alarm linkage. When smart intrusion prevention is triggered, the camera links sound alarm and light linkage
automatic selection of best snapshots, supports face detection masked area
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic and speaker
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IP67 protection

Product Manual

No related firmware found.

Additional information

Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.0025 Lux (F1.6 , AGC ON) , 0 Lux with ligh
Camera Resolutions	8 MP
Lens Size	4mm
Lens Type	Fixed Lens
WDR	120 dB
Camera Style	Turret
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360° , Tilt: 0° to 80° , Rotate: 0° to 360°
S/N	>52 dB
Iris	F1.6
Illumination Distance (IR)	30 m (98.4 ft)
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	MicroSD , up to 512 GB
Network Storage	ANR , NAS (NFS)
Interface Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Audio	Built-in Two-Way Audio
Power	DC 12 V±25% , PoE (IEEE 802.3af)
Power Consumption	Max. 8.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)
Weight	0.45 kg (0.992 lb)
Material	Metal + Plastic
Surge Protection	4 KV
Protection	IP67
