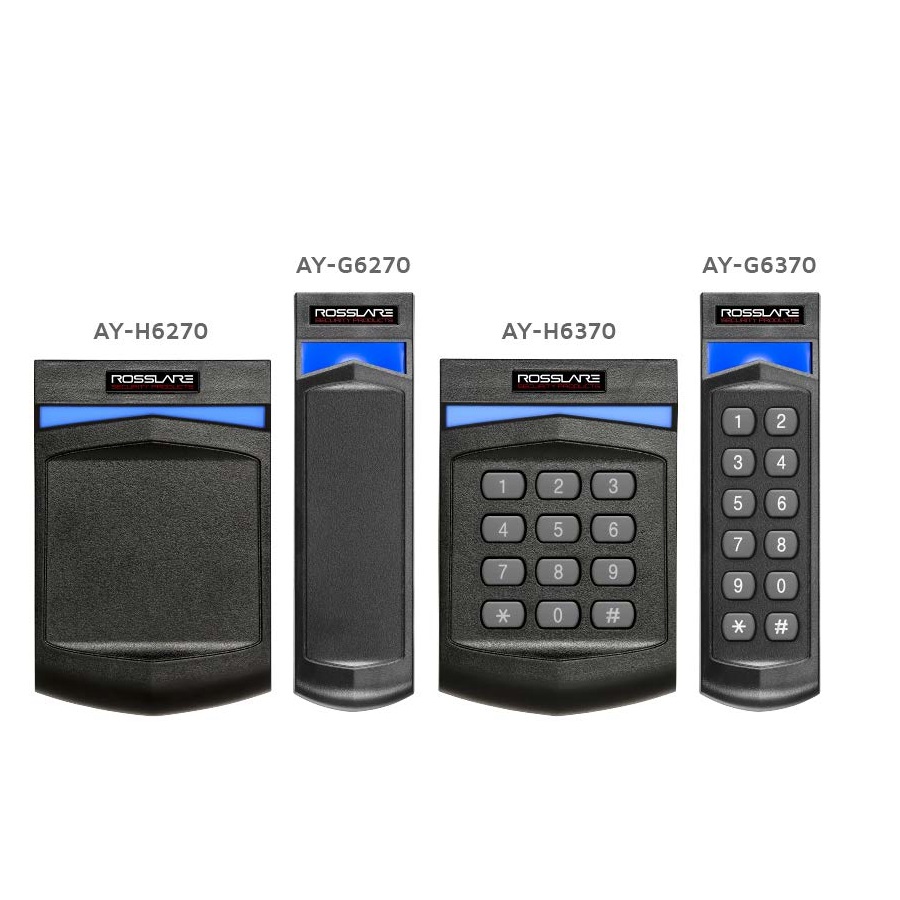

AY-H6270B+P00 AY H SERIES OPEN TO SECURE

SKU: AY-H6270B+P00

AY H SERIES OPEN TO SECURE

13 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Contactless smart card reader (13.56 MHz)
Meets ISO14443 Type A Standard
AES 128-bit encryption during transmission
Reads O2S ID data from O2S credentials
Reads CSN of non-O2S credentials
Output formats:
Wiegand (per format on O2S credential)
OSDP via RS-485 (selected models)
RGB multicolor light indicator
Blue backlit tact switch keypad
IP68 water and dust resistant for AY-x6270 pigtail models
IP65 water and dust resistant for AY-x6270 terminal block models and AY-x6370 models
IK08 vandal resistant for all AY-x6x70 models
Optical back tamper sensor
Two LED control and buzzer control inputs
Pigtail or terminal block connectivity
Antimicrobial technology reduces level of microbes on reader by up to 99.99%.

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	6 to 16V DC
Input Current at 12V	Stand by: 85mA, Maximum: 110mA
MIFARE Classic ELED ControlV1 MIFARE Plus	40 to 45mTwo Inputs: Green LED CTL and RED LED CTL–TTLm (1.5 to 1.8 in.) 30 mm (1.2 in.)
Auxiliary Input	Buzzer CTL or Hold CTL–TTL
Auxiliary Output	Tamper Output (OC, active low, max. sink current 30mA)
Supported Protocol	Wiegand OSDP Secure Channel V2
Output Format	O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available
Maximum Cable Distance to Controller	Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable
Compatible Cards	MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K)
Operating Temperature	-31ºC to 63ºC(-24ºF to 145ºF)
Operating Humidity Range	0% to 95% (non-condensing)
Outdoor Usage	Weather-resistant, epoxy potted, suitable for outdoor use
Operating Environment	UV-resistant, epoxy-potted, suitable for indoor and outdoor use
Vandal Resistance	IK08
Antimicrobial efficacy	Inhibits bacteria proliferation by up to 99.9%
Dimensions of Pigtail Models (H x W x D)	120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.)
Dimensions of Terminal Block and OSDP Models (H x W x D)	120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.)
Weight	217 g (7.7 oz)
