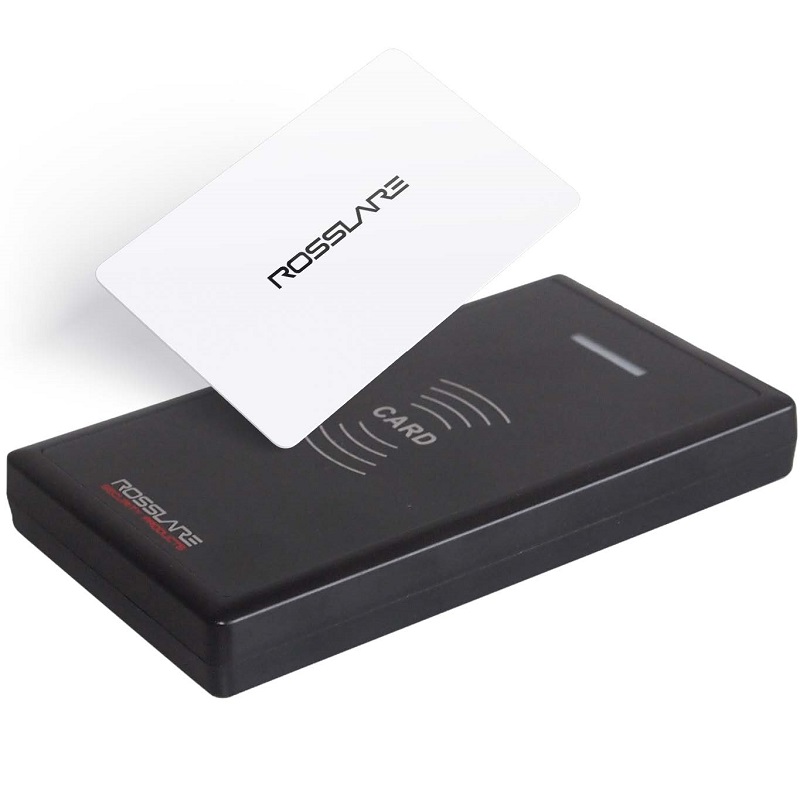

DR-6280 MIFARE ENROLLMENT READER
Click to enlarge

DR-6280 MIFARE ENROLLMENT READER

ROSSLARE
SKU: DR-6280

Call for price

MIFARE ENROLLMENT READER

Add to wishlist
Add to compare
18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Contactless Smart Card Reader (13.56 MHz)
  • Meets ISO14443 Type A Standard
  • Reads O2S ID data from an O2S credential
  • Uses NXP SAM AV2 for identity and communication cryptography
  • AES 128-bit encryption during the transmission of an ID from a MIFARE DESFire EV1 credential
  • Reads CSN of non-O2S MIFARE credentials
  • Bi-Colored LED
  • Supports USB 2.0 Standard (compatible with USB 1.1), meets the EIA Standard

Download

Product Manual

No related firmware found.
Additional information
Operating Voltage

5VDC (USB powered)

Operation Current

Standby:87mA, Max:135mA

Supported Transponders

MIFARE Classic EV1 MIFARE DESFire EV1

Read Card Distance

Up to 50mm (2.0 in.)

RF Modulation

ASK

Operation Frequency

13.56 MHz

Output Format

O2S-Preprogrammed key Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bitand customized*

OS Support

Windows 7 32-bit and 64-bit Windows 10 32-bit and 64-bit

Operating Environment

Indoor use

Operating Temperature Range

0°C to 63°C (32°F to 145°F)

Storage Temperature Range

-20°C to 63°C (-4°F to 145°F)

Enclosure Dimensions

123 x 70 x 16mm (4.9 x 2.8 x 0.6 in.)

Weight

130g (4.6oz.)
