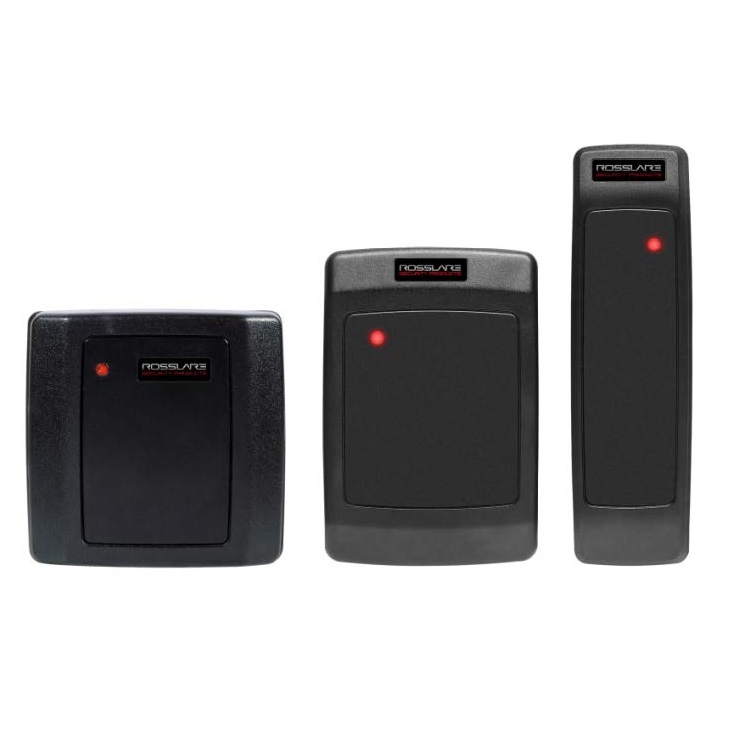

AY-H12C 26 BIT WEIGAND READER WEATHERPRF PROX US GANG
Click to enlarge

AY-H12C 26 BIT WEIGAND READER WEATHERPRF PROX US GANG

ROSSLARE
SKU: AY-H12C

Call for price

26 BIT WEIGAND READER WEATHERPRF PROX US GANG

Add to wishlist
Add to compare
14 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
  • Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
  • Wide range operating voltage: 5 to 16 VDC
  • 45 cm (18 in.) pigtail cable

Download

Product Manual

No related firmware found.
Additional information
Operating Voltage Range

5–16 VDC, from a regulated power supply

Standby Input Current

60 mA @ 12 V

Maximum Input Current

120 mA @ 12 V

Tamper Output

Open collector, active low, max. sink current 16 mA

LED Control Input

Dry Contact, N.O.

Output Form

Wiegand 26-Bit, RS-232, or Clock & Data

Audio/Visual

Tri-colored LED indicator, built-in sounder

Design

Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments.

Operating Environment

Water resistant, suitable for outdoor use (IP65)

Operating Temperature

-31ºC to 63ºC (-25ºF to 145ºF)

Operating Humidity

0% to 95% (non-condensing)

Dimensions (H x W x D)

110 x 75 x 15 mm (4.3 x 3.0 x 0.6 in.)

Weight

100 g (3.5 oz)
