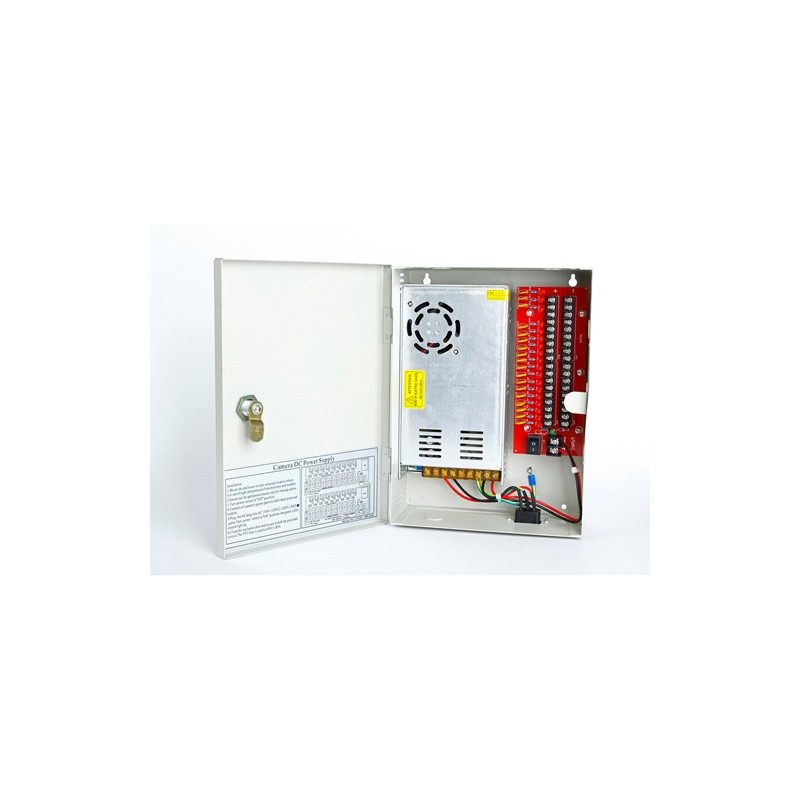

W-12VDC-18P/30A 18CHANNELS 30AMPS CAMERA DC POWER SUPPLY
Click to enlarge

W-12VDC-18P/30A 18CHANNELS 30AMPS CAMERA DC POWER SUPPLY

SKU: W-12VDC-18P/30A

18CHANNELS 30AMPS CAMERA DC POWER SUPPLY

Add to wishlist
Add to compare
13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Input 110/ 220 V AC
  • Output 12V DC DC，18channels
  • 30Amp Supply Current
  • Integral Surge Protection
  • Individual LED Power Indication
  • Individual PTC Output Protection
  • Max. Amp: 2. 2Amp/ch

Download

Product Manual

No related firmware found.
Additional information
Channels

Specification

350W 12V 33A 18P

Shape Dimension

28.5*21*9cm

Input Voltage

110/220VAC

Input Voltage Frequency

50Hz～60Hz

Average Input Current

100Vac≤4.0A

Efficiency

≥80%

Output Voltage

Output Voltage

Output Current

30A，18channels for 18 sets load

Type /Rating

PTC 2.2A/60V

Insulating strength Input to output

≥20MΩ/500VDC@25℃

Leakage Current

≤0.09ma @AC110V（220V）/25℃

RG

≤0.005Ω@DC8V/25A/25℃

Weight

2.9kg
