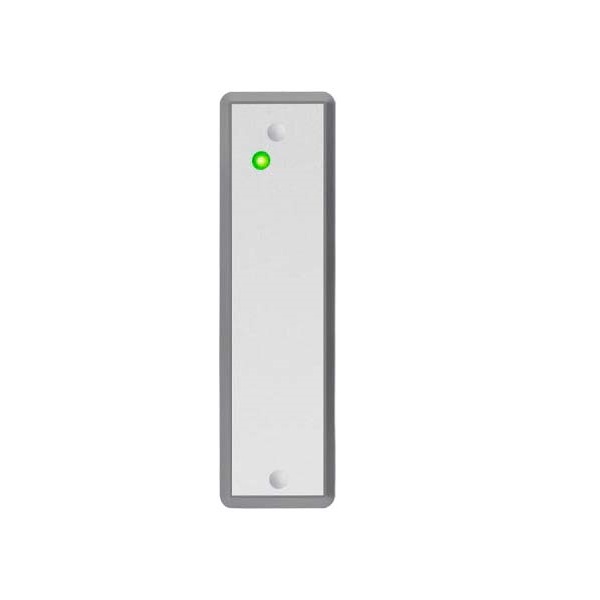

AY-E20 ULTRA SLIM PROX READER
SKU:
AY-E20
| Operating Voltage Range |
5 to 16 VDC from a regulated power supply (power usually supplied from host controller) |
|---|---|
| Input Current |
Standby: 40 mA @ 12 VDC Maximum: 100 mA @ 16 VDC |
| Tamper Output |
Open collector, active low, 16 mA max sink current |
| Power Supply Type |
Linear type recommended |
| Cable Distance to Host Controller |
Up to 150 m (500 ft) using an 18-AWG cable |
| Proximity Card Read Range* |
3.5 cm (1.37 in.) * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. |
| Proximity Card Modulation |
ASK at 125 KHz |
| Proximity Card Compatibility |
EM cards |
| Card Transmit Format |
Wiegand 26-Bit, Clock & Data, Serial RS232 |
| LED Indicato |
One bi-colored LED |
| Operating Environmen |
Outdoor usage Weather-resistant, meets IP68, epoxy potte |
| Operating Temperature |
-31°C to 63°C (-25°F to 145°F) |
| Operating Humidity |
0 to 95% (non condensing) |
| Dimensions (H x W x D) |
155 x 45 x 8 mm (6.10 x 1.77 x 0.31 in.) |
| Weight |
135 g (4.76 oz) |
| SYSTEM COMPONENTS |
The AY-E20 is compatible with a variety of Rosslare's Wiegand 26-bit supported single/double/multi door controllers (AC-215, AC-225, AC525), proximity cards and key fobs, and many third-party access control systems. |
| PRODUCT WARRANTY |
5-Year Limited Product Warranty |

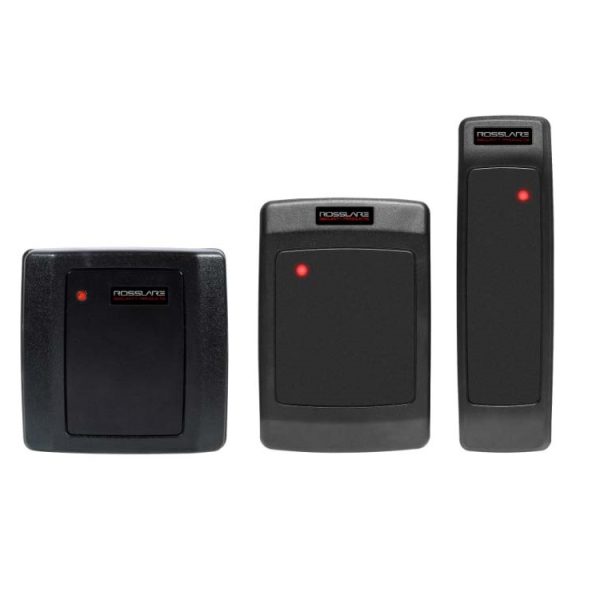

AY-H12C 26 BIT WEIGAND READER WEATHERPRF PROX US GANG
SKU:
AY-H12C
| Operating Voltage Range |
5–16 VDC, from a regulated power supply |
|---|---|
| Standby Input Current |
60 mA @ 12 V |
| Maximum Input Current |
120 mA @ 12 V |
| Tamper Output |
Open collector, active low, max. sink current 16 mA |
| LED Control Input |
Dry Contact, N.O. |
| Output Form |
Wiegand 26-Bit, RS-232, or Clock & Data |
| Audio/Visual |
Tri-colored LED indicator, built-in sounder |
| Design |
Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Operating Environment |
Water resistant, suitable for outdoor use (IP65) |
| Operating Temperature |
-31ºC to 63ºC (-25ºF to 145ºF) |
| Operating Humidity |
0% to 95% (non-condensing) |
| Dimensions (H x W x D) |
110 x 75 x 15 mm (4.3 x 3.0 x 0.6 in.) |
| Weight |
100 g (3.5 oz) |

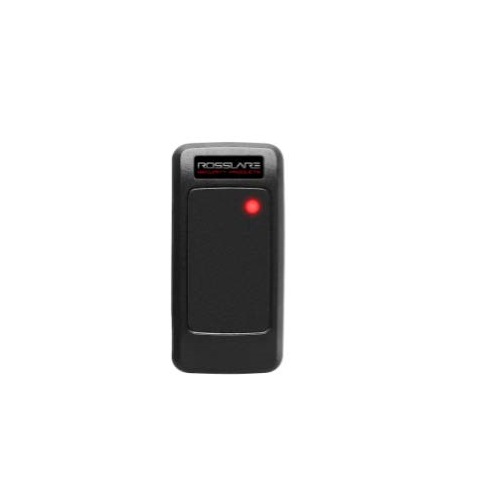

AY-K12C 26 BIT WEIGAND READER WEATHERPRF PROX MULLION
SKU:
AY-K12C
| Operating Voltage Range |
5–16 VDC, from a regulated power supply |
|---|---|
| Standby Input Current |
60 mA @ 12 V |
| Maximum Input Current |
120 mA @ 12 V |
| Tamper Output |
Open collector, active low, max. sink current 16 mA |
| LED Control Input |
Dry Contact, N.O. |
| Output Form |
Wiegand 26-Bit, RS-232, or Clock & Data |
| Audio/Visual |
Tri-colored LED indicator, built-in sounder |
| Design |
Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Operating Environment |
Water resistant, suitable for outdoor use (IP65) |
| Operating Temperatur |
-31ºC to 63ºC (-25ºF to 145ºF) |
| Operating Humidity |
0% to 95% (non-condensing) |
| Dimensions (H x W x D) |
80 x 40 x 12.8 mm (3.2 x 1.6 x 0.5 in.) |
| Weight |
70.5 g (2.5 oz) |
AY-L12C 26 BIT WEIGAND REALER WEATHEPRF PROX MULLION L
SKU:
AY-L12C
| Operating Voltage Range |
5–16 VDC, from a regulated power supply |
|---|---|
| Standby Input Current |
60 mA @ 12 V |
| Maximum Input Current |
120 mA @ 12 V |
| Tamper Output |
Open collector, active low, max. sink current 16 mA |
| LED Control Input |
Dry Contact, N.O. |
| Output Form |
Wiegand 26-Bit, RS-232, or Clock & Data |
| Audio/Visual |
Tri-colored LED indicator, built-in sounder |
| Design |
Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Operating Environment |
Water resistant, suitable for outdoor use (IP65) |
| Operating Temperatur |
-31ºC to 63ºC (-25ºF to 145ºF) |
| Operating Humidity |
0% to 95% (non-condensing) |
| Dimensions (H x W x D) |
145 x 43 x 20 mm (5.7 x 1.7 x 0.8 in.) |
| Weight |
116 g (4.1 oz) |

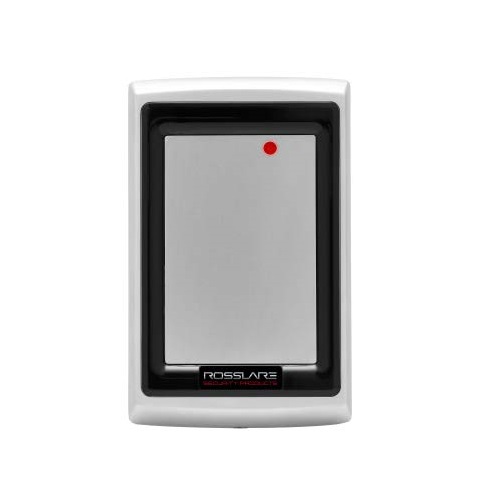

AY-Q12C 26-BIT WEIGAND READER VANDAL PROX US GANG
SKU:
AY-Q12C
| Operating Voltage Range |
5–16 VDC, from a regulated power supply |
|---|---|
| Standby Input Current |
60 mA @ 12 V |
| Maximum Input Current |
120 mA @ 12 V |
| Tamper Output |
Open collector, active low, max. sink current 16 mA |
| LED Control Input |
Dry Contact, N.O. |
| Output Format |
Wiegand 26-Bit, RS-232, or Clock & Data |
| Audio/Visual |
Tri-colored LED indicator, built-in sounder |
| Design |
Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Operating Environment |
Water resistant, suitable for outdoor use (IP65) |
| Operating Temperatu |
-31ºC to 63ºC (-25ºF to 145ºF) |
| Operating Humidity |
0% to 95% (non-condensing) |
| Dimensions (H x W x D) |
120 x 76 x 20 mm (4.7 x 3.0 x 0.8 in.) |
| Weight |
480 g (17.0 oz) |
| SYSTEM COMPONENTS |
The AY-Q12is compatible with a variety of Rosslare's controllers, as well as with many third-party access control systems. A mounting spacer is available for installations over metallic surface for selected models. |
| PRODUCT WARRANTY |
5-Year Limited Product Warranty |

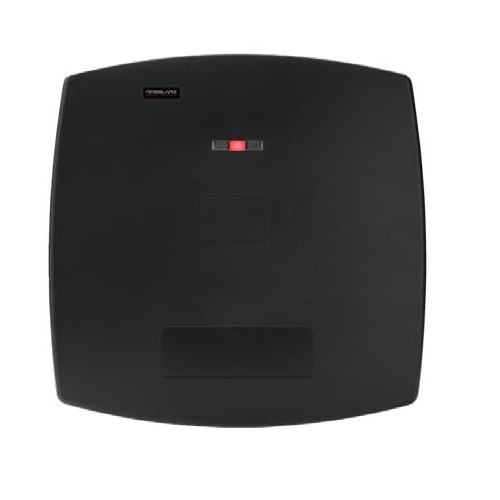

AY-Z12 LONG RANGE PROX READER
SKU:
AY-Z12
| Operating Voltage Range |
10-16 VDC, from a regulated power supply |
|---|---|
| Input Current |
Standby: 280 mA at 12 VDC Maximum: 330 mA at 12 VDC |
| LET Control |
Dry Contact, N.O. |
| Tamper |
Optical back tamper sensor, O.C. active low 30 mA max sink current |
| Output Format |
Wiegand 26-bit |
| Audio/Visual |
Tri-color LED indicator, Built-in sounder |
| Design |
Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Suitable for harsh environments |
| Operating Environment |
IP54 |
| Operating Temperature |
-30˚C to 63˚C (-22˚F to 145˚F) |
| Operating Humidity |
0 to 95% (non-condensing) |
| Dimensions (H x W x D) |
30 x 30 x 2.5 cm (11.8 x 11.8 x 1 in.) |
| Weight |
1.066 kg (2.35 lbs) |
| SYSTEM COMPONENTS |
The AY-Z12A is compatible with a variety of Rosslare's access controllers (AC-215, AC-115, AC-020, AC 015), as well as with many third-party access control systems. |
| PRODUCT WARRANTY |
5-year Limited Product Warranty |
AYC-E60B ULTRA-SLIM PIEZO MULLION BACKLIT GOPROX & PIN READER CONVERTIBLE BLACK
SKU:
AYC-E60B
| Operating Voltage Range |
5–16 VDC |
|---|---|
| Standby Input Current |
100 mA |
| Maximum Input Current |
140 mA |
| Tamper Output |
Open collector, active low, max. sink current 32 mA |
| LED Control Input |
Dry Contact N.O. |
| Cable Distance Host Controller |
Up to 150 m (500 ft) using an 18 AWG cable |
| Max Proximity Card Range |
60 mm (2.36 in.) |
| Proximity Card Modulation |
ASK and FSK at 125 kHz |
| Card Transmit Format (Reader) |
Rosslare PROX – EM cards: Wiegand 26-Bit, or Clock & Data FSK cards: According to card type |
| LED Indicators |
Two tri-colored LEDs |
| Compatible Cards |
125 kHz and/or dual technology ISO cards, clamshell and tags |
| Operating Temperature |
-30ºC to 65ºC (-22ºF to 150ºF) |
| Outdoor Usage |
Weather-resistant, meets IP-65, epoxy potted, suitable for outdoor use |
| Dimensions |
155 x 44 x 9 mm (6.1 x 1.7 x 0.35 in.) |
| Weight |
143 g 0.31 lbs |

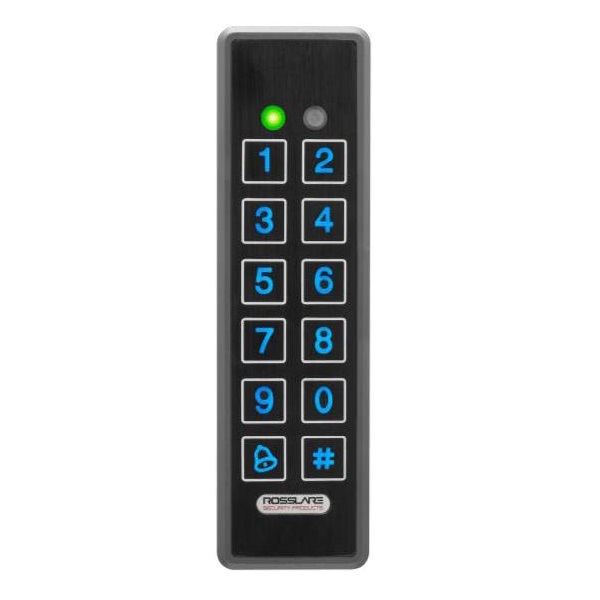

AYC-E65BB CONVERTIBLE 2X6 ULTRA-SLIM BACKLIT PIN & PROX RDR CONTROLLER
SKU:
AYC-E65BB
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
|---|---|
| Input Current |
Standby: 92 mA @ 12 VDC, Maximum: 105 mA @ 16 VDC |
| Tamper |
Open collector, active low, 30 mA max sink current |
| Keypad |
2×6 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry |
| Design |
Epoxy potted, fully sealed in a rugged thin metal enclosure, highly strong construction and highly sensitive piezoelectric keys. Suitable for extremely harsh environments |
| Audio/Visual |
Two tri-colored LED indicators, built-in buzzer |
| LED Control |
Dry contact, N.O. |
| Facility Code |
Programmable |
| Card Read Formats |
Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats |
8 selectable formats, from 1 to 8-digit length PIN Codes |
| Capacity |
500 users, single/dual PIN code each |
| User Levels |
Normal, Secure and Maste |
| Security Modes |
Normal, Bypass and Secure |
| Outputs |
Lock Strike output, Auxiliary output (PS-x25T series) |
| Inputs |
REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| Operating Environment |
All weather, indoor and outdoor use, meets IP 68 |
| Operating Temperature |
-30˚C to 65˚C (-22˚F to 150˚F) |
| Dimensions |
155 x 44 x 9 mm (6.1 x 1.73 x 0.354 in |
| Weight |
143 g (0.315 lbs) |
| SYSTEM COMPONENTS |
AYC-E65B (Reader mode) is compatible with standard access controllers. With Rosslare’s PS-x25T intelligent power supplies series, it automatically converts into a 500-user secure controller. |
| PRODUCT WARRANTY |
5-year Limited Product Warranty |

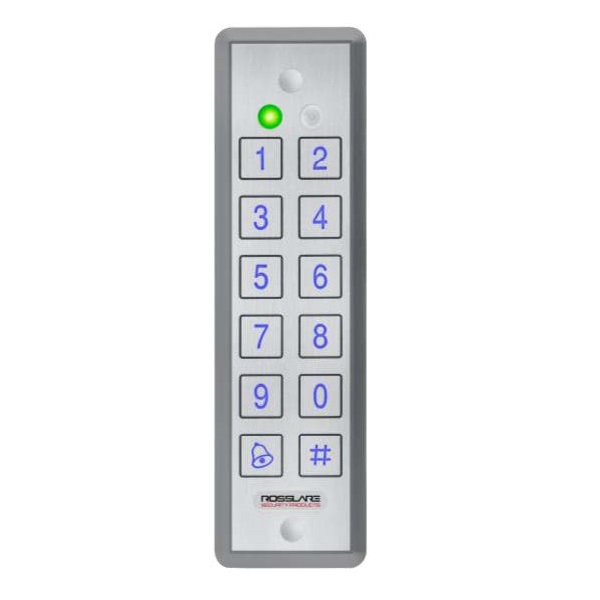

AYC-E65BG CONVERTIBLE, ULTRA THIN PIN/PROX, BACKLIT, MULLION
SKU:
AYC-E65BG
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
|---|---|
| Input Current |
Standby: 92 mA @ 12 VDC, Maximum: 105 mA @ 16 VDC |
| Tamper |
Open collector, active low, 30 mA max sink current |
| Keypad |
2×6 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry |
| Design |
Epoxy potted, fully sealed in a rugged thin metal enclosure, highly strong construction and highly sensitive piezoelectric keys. Suitable for extremely harsh environments |
| Audio/Visual |
Two tri-colored LED indicators, built-in buzzer |
| LED Control |
Dry contact, N.O. |
| Facility Code |
Programmable |
| Card Read Formats |
Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats |
8 selectable formats, from 1 to 8-digit length PIN Codes |
| Capacity |
500 users, single/dual PIN code each |
| User Levels |
Normal, Secure and Maste |
| Security Modes |
Normal, Bypass and Secure |
| Outputs |
Lock Strike output, Auxiliary output (PS-x25T series) |
| Inputs |
REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| Operating Environment |
All weather, indoor and outdoor use, meets IP 68 |
| Operating Temperature |
-30˚C to 65˚C (-22˚F to 150˚F) |
| Dimensions |
155 x 44 x 9 mm (6.1 x 1.73 x 0.354 in |
| Weight |
143 g (0.315 lbs) |
| SYSTEM COMPONENTS |
AYC-E65B (Reader mode) is compatible with standard access controllers. With Rosslare’s PS-x25T intelligent power supplies series, it automatically converts into a 500-user secure controller. |
| PRODUCT WARRANTY |
5-year Limited Product Warranty |

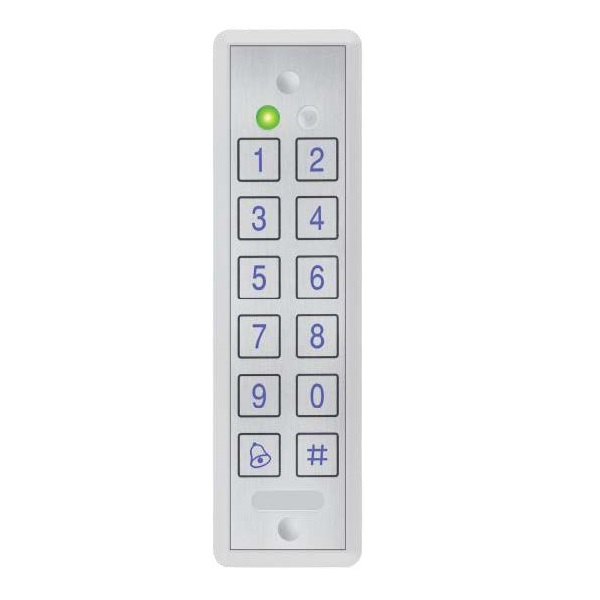

AYC-E65BW NATURAL COLOUR ANODIZED HOUSING WITH WHITE ANTENNA FRAME
SKU:
AYC-E65BW
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
|---|---|
| Input Current |
Standby: 92 mA @ 12 VDC, Maximum: 105 mA @ 16 VDC |
| Tamper |
Open collector, active low, 30 mA max sink current |
| Keypad |
2×6 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry |
| Design |
Epoxy potted, fully sealed in a rugged thin metal enclosure, highly strong construction and highly sensitive piezoelectric keys. Suitable for extremely harsh environments |
| Audio/Visual |
Two tri-colored LED indicators, built-in buzzer |
| LED Control |
Dry contact, N.O. |
| Facility Code |
Programmable |
| Card Read Formats |
Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats |
8 selectable formats, from 1 to 8-digit length PIN Codes |
| Capacity |
500 users, single/dual PIN code each |
| User Levels |
Normal, Secure and Maste |
| Security Modes |
Normal, Bypass and Secure |
| Outputs |
Lock Strike output, Auxiliary output (PS-x25T series) |
| Inputs |
REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| Operating Environment |
All weather, indoor and outdoor use, meets IP 68 |
| Operating Temperature |
-30˚C to 65˚C (-22˚F to 150˚F) |
| Dimensions |
155 x 44 x 9 mm (6.1 x 1.73 x 0.354 in |
| Weight |
143 g (0.315 lbs) |
| SYSTEM COMPONENTS |
AYC-E65B (Reader mode) is compatible with standard access controllers. With Rosslare’s PS-x25T intelligent power supplies series, it automatically converts into a 500-user secure controller. |
| PRODUCT WARRANTY |
5-year Limited Product Warranty |
AYC-F60 US SINGLE GANG BACKLIT GOPROX & PIN READER CONVERTIBLE
SKU:
AYC-F60
| Operating Voltage Range |
5–16 VDC |
|---|---|
| Standby Input Current |
100 mA |
| Maximum Input Current |
140 mA |
| Tamper Output |
Open collector, active low, max. sink current 32 mA |
| LED Control Input |
Dry Contact N.O. |
| Cable Distance Host Controller |
Up to 150 m (500 ft) using an 18 AWG cable |
| Max Proximity Card Range |
60 mm (2.36 in.) |
| Proximity Card Modulation |
ASK and FSK at 125 kHz |
| Card Transmit Format (Reader) |
Rosslare PROX – EM cards: Wiegand 26-Bit, or Clock & Data FSK cards: According to card type |
| LED Indicators |
Two tri-colored LEDs |
| Compatible Cards |
125 kHz and/or dual technology ISO cards, clamshell and tags |
| Operating Temperature |
-30ºC to 65ºC (-22ºF to 150ºF) |
| Outdoor Usage |
Weather-resistant, meets IP-65, epoxy potted, suitable for outdoor use |
| Dimensions |
120 x 76 x 21 mm (4.72 x 3 x 0.87 in.) |
| Weight |
480 g 1.05 lbs |

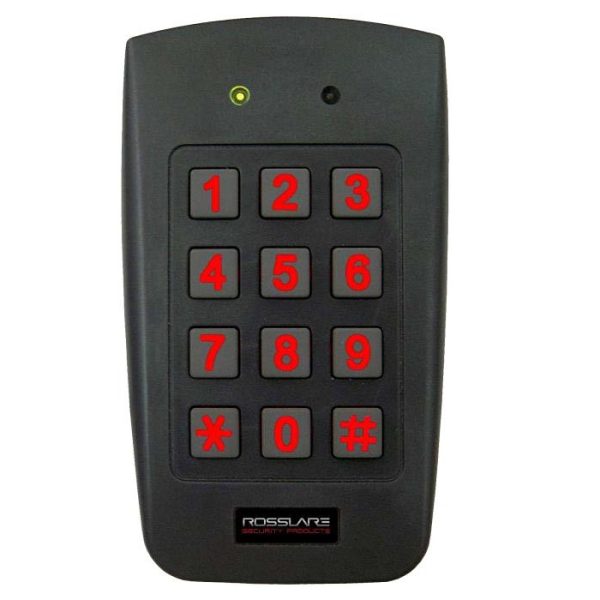

AYC-F64 PIN/PROX GANG BOX PLASTIC SECURED CONTROLLER AND 26 BIT READER
SKU:
AYC-F64
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
|---|---|
| Input Current |
Standby: 105 mA at 12 VDC Maximum: 140 mA at 16 VDC |
| Tamper |
Open collector, active low, 32 mA max sink curren |
| Keypad |
3×4 keys for local programming and 4 to 8 digit PIN codes entry |
| Design |
Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| Audio/Visual |
Two tri-color LED indicators, built-in buzzer |
| LED Control |
Dry contact, N.O. |
| Facility Code |
Programmable |
| Card Read Formats |
Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats |
8 selectable formats, from 1- to 8-digit length PIN codes |
| Capacity |
500 Users, dual code/card or code + card each |
| User Levels |
Normal, Secure, Master |
| Security Modes |
Normal, Bypass, Secure |
| Outputs |
Lock Strike output; Auxiliary output (PS-x25T series) |
| Inputs |
REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| Operating Environment |
Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use |
| Operating Temperature |
-35°C to 66°C (-31°F to 151°F) |
| Dimensions |
120 x 76 x 21 mm (4.7 x 3.0 x 0.8 in.) |
| Weight |
215 g (7.6 oz) |
| SYSTEM COMPONENTS |
AYC-F64 is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series, it automatically converts into a 500-user secure controller. |
| PRODUCT WARRANTY |
5-Year Limited Product Warranty |

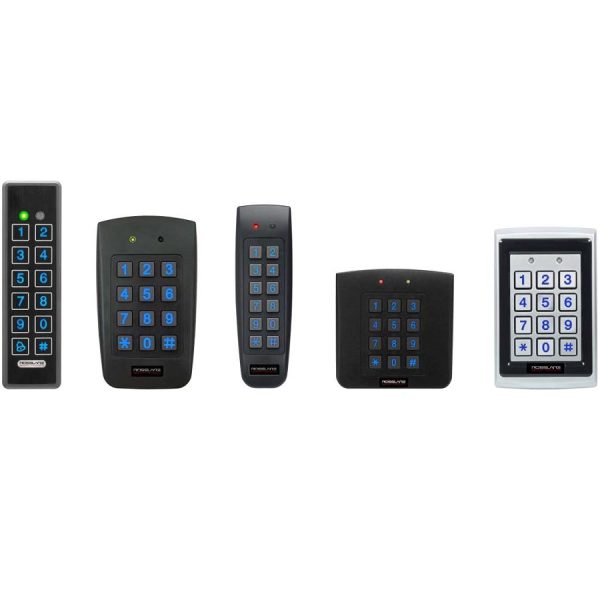

AYC-G60 MULLION BACKLIT GOPROX & PIN READER CONVERTIBLE
SKU:
AYC-G60
| Operating Voltage Range |
5–16 VDC |
|---|---|
| Standby Input Current |
100 mA |
| Maximum Input Current |
140 mA |
| Tamper Output |
Open collector, active low, max. sink current 32 mA |
| LED Control Input |
Dry Contact N.O. |
| Cable Distance Host Controller |
Up to 150 m (500 ft) using an 18 AWG cable |
| Max Proximity Card Range |
60 mm (2.36 in.) |
| Proximity Card Modulation |
ASK and FSK at 125 kHz |
| Card Transmit Format (Reader) |
Rosslare PROX – EM cards: Wiegand 26-Bit, or Clock & Data FSK cards: According to card type |
| LED Indicators |
Two tri-colored LEDs |
| Compatible Cards |
125 kHz and/or dual technology ISO cards, clamshell and tags |
| Operating Temperature |
-30ºC to 65ºC (-22ºF to 150ºF) |
| Outdoor Usage |
Weather-resistant, meets IP-65, epoxy potted, suitable for outdoor use |
| Dimensions |
137 x 44 x 21 mm (5.39 x 1.73 x 0.83 in.) |
| Weight |
160 g 0.35 lbs |

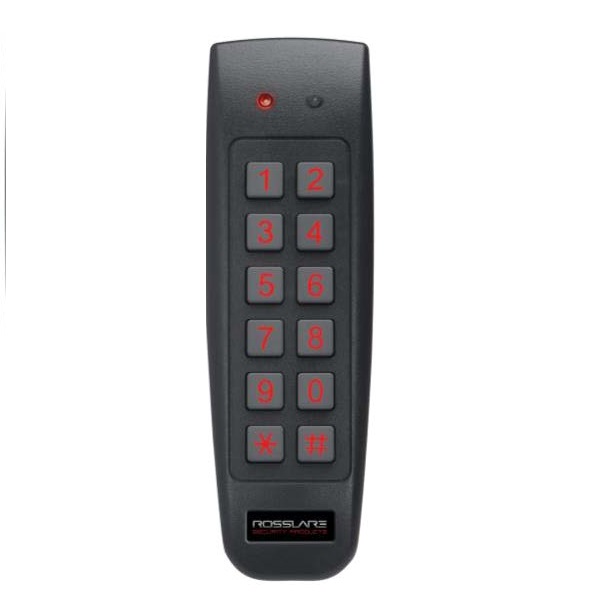

AYC-G64 PLASTIC MULL. PIN/PROX SECURED CTRL AND 26 BIT RDR BACKLIT
SKU:
AYC-G64
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
|---|---|
| Input Current |
Standby: 105 mA at 12 VDC; Maximum: 140 mA at 16 VDC |
| Proximity Card Reader |
Maximum read range*: 80 mm (3.2 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM cards |
| Tamper |
Open collector, active low, 32 mA max sink current |
| Keypad |
2×6 keys for local programming and 4- to 8-digit PIN codes entry |
| Design |
Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| Audio/Visual |
Two tri-colored LEDs, built-in buzzer |
| LED Control |
Dry contact, N.O. |
| Facility Code |
Programmable |
| Read Card Format |
Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats |
8 selectable formats, from 1- to 8-digit length PIN codes |
| Capacity |
500 users, dual code/card or code + card each |
| User Levels |
Normal, Secure, Master |
| Security Modes |
Normal, Bypass, Secure |
| Outputs |
Lock Strike output; Auxiliary output (PS-x25T series) |
| Inputs |
REX (Request-to-Exit) Auxiliary/door monitor with 10 programmable modes |
| Operating Environment |
Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use |
| Operating Temperature |
-35°C to 66°C (-31°F to 151°F) |
| Operating Humidity |
0 to 95% (non-condensing) |
| Dimensions |
137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.) |
| Weight |
160 g (5.6 oz) |
AYC-Q60 ANTI VANDAL US SINGLE GANG BACKLIT GOPROX & PIN RDR-CONVERTIBLE
SKU:
AYC-Q60
| Operating Voltage Range |
5–16 VDC |
|---|---|
| Standby Input Current |
100 mA |
| Maximum Input Current |
140 mA |
| Tamper Output |
Open collector, active low, max. sink current 32 mA |
| LED Control Input |
Dry Contact N.O. |
| Cable Distance Host Controller |
Up to 150 m (500 ft) using an 18 AWG cable |
| Max Proximity Card Range |
60 mm (2.36 in.) |
| Proximity Card Modulation |
ASK and FSK at 125 kHz |
| Card Transmit Format (Reader) |
Rosslare PROX – EM cards: Wiegand 26-Bit, or Clock & Data FSK cards: According to card type |
| LED Indicators |
Two tri-colored LEDs |
| Compatible Cards |
125 kHz and/or dual technology ISO cards, clamshell and tags |
| Operating Temperature |
-30ºC to 65ºC (-22ºF to 150ºF) |
| Outdoor Usage |
Weather-resistant, meets IP-65, epoxy potted, suitable for outdoor use |
| Dimensions |
120 x 76 x 22 mm (4.72 x 3 x 0.96 in.) |
| Weight |
480 g 1.05 lbs |

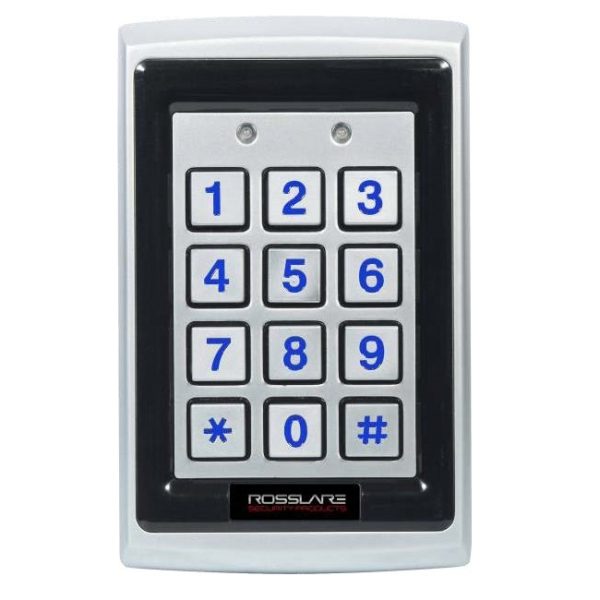

AYC-Q64B Anti-Vandal US Single Gang Backlit Standaone PROX + PIN 125 kHz Reader – Convertible
SKU:
AYC-Q64B
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
|---|---|
| Input Current |
Standby: 90 mA at 12 VDC Maximum: 130 mA at 16 VDC |
| Tamper |
Optical back tamper sensor, O.C. active low, 32 mA max. sink current |
| Keypad |
3×4 keys for local programming and 4- to 8-digit PIN codes entry |
| Design |
Epoxy potted, fully-sealed in a rugged metal enclosure, blue backlit metal keys, highly strong construction. Suitable for extremely harsh environments. |
| Audio/Visual |
Two tri-color LED indicators, built-in buzzer |
| LED Control |
Dry contact, N.O. |
| Facility Code |
Programmable |
| Read Card Format |
Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats |
8 selectable formats, from 1- to 8-digit length PIN codes |
| Capacity |
500 users, dual code/card or code + card each |
| User Levels |
Normal, Secure, Master |
| Security Modes |
Normal, Bypass, Secure |
| Outputs |
Lock Strike output Auxiliary output (PS-x25T series |
| Inputs |
REX (Request-to-Exit) Auxiliary/door monitor with 10 programmable modes |
| Operating Environment |
All weather, indoor and outdoor use, meets IP65 |
| Operating Temperature Range |
-35°C to 66°C (-31°F to 151°F) |
| Dimensions |
120 x 76 x 21 mm (4.7 x 3 x 0.8 in. |
| Weight |
480 g (1.1 lb) |
| SYSTEM COMPONENTS |
AYC-Q64B is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series it automatically converts into a 500-user secure controller. |
| PRODUCT WARRANTY |
5-year limited product warranty |

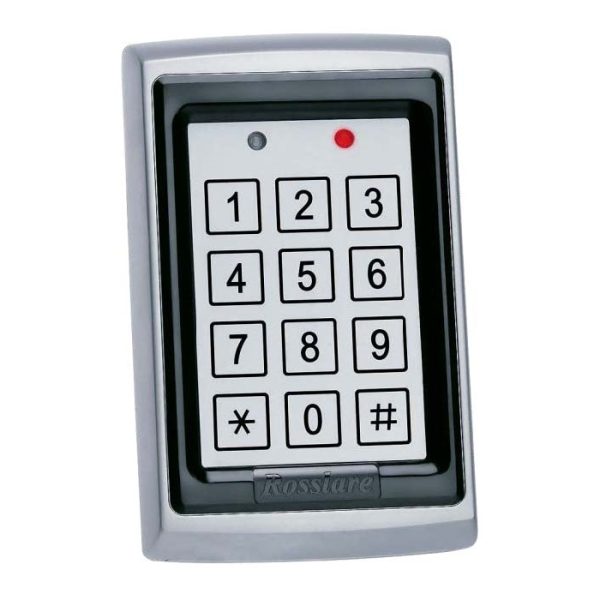

AYC-Q65 PROGRAM READER VANDAL PROX US GANG
SKU:
AYC-Q65
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
|---|---|
| Input Current |
Standby: 90 mA at 12 VDC ; Maximum: 130 mA at 16 VDC |
| Tamper |
Optical back tamper sensor, O.C. active low, 30 mA max. sink current |
| Keypad |
3×4 keypad for local programming and 4- to 8-digit PIN codes entry |
| Design |
Epoxy-potted, fully-sealed in a rugged metal enclosure, metal piezoelectric keypad, highly strong construction. Suitable for extremely harsh environments. |
| Audio/Visual |
2 tri-color LED indicators, built-in buzzer |
| LED Control |
Dry contact, N.O. |
| Facility Code |
Programmable |
| Read Card Format |
Selectable Wiegand 26-Bit, Clock & Data, Card & PIN |
| PIN Code Formats |
9 selectable formats, from 4- to 8-digit length PIN codes |
| Capacity |
500 users, dual code/card or code + card each |
| User Levels |
Normal, Secure, Master |
| Security Modes |
Normal, Bypass, Secure |
| Outputs |
Lock Strike output ; Auxiliary output (PS-x25T series) |
| Inputs |
REX (Request-to-Exit) Auxiliary/door monitor with 10 programmable modes |
| Operating Environment |
All weather, indoor and outdoor use, meets IP65 |
| Operating Temperature |
-35°C to 66°C (-31°F to 151°F) |
| Dimensions |
120 x 76 x 21 mm (4.72 x 3 x 0.83 in.) |
| Weight |
480 g (1.05 lb) |
| SYSTEM COMPONENT |
AYC-Q65 is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series, it automatically converts into a 500-user secure controller. |
| PRODUCT WARRANTY |
5-Year Limited Product Warranty |

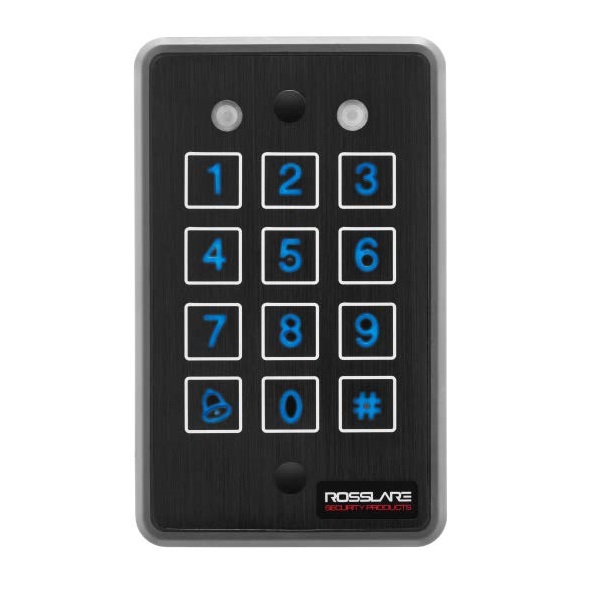

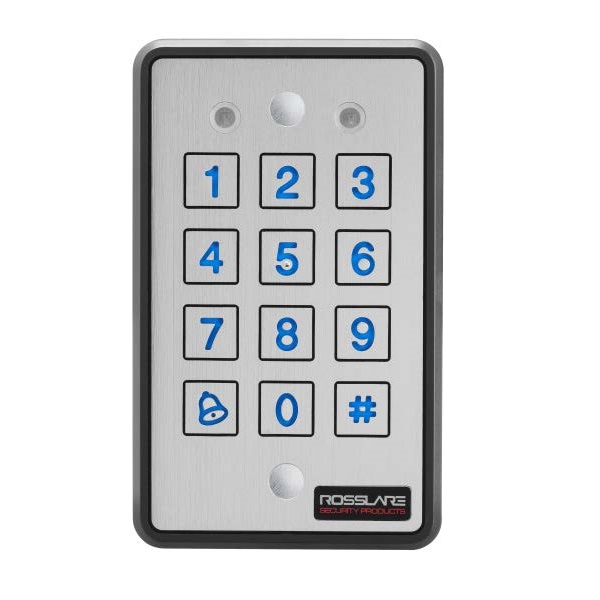

AYC-T65 (N/B) PIEZOELECTRIC BACKLIT PROXIMITY & PIN READER-CONVERTIBLE
SKU:
AYC-T65 (N/B)
| Operating Voltage Range |
Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
|---|---|
| Input Current |
Standby: 92 mA @ 12 VDC, Maximum: 105 mA @ 16 VDC |
| Tamper |
Open collector, active low, 30 mA max sink current |
| Keypad |
3×4 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry |
| Design |
Epoxy-potted, fully-sealed in a rugged thin metal enclosure, highly strong construction and high sensitive piezoelectric keys. Suitable for extremely harsh environments. |
| Audio/Visual |
Two tri-colored LED indicators, built-in buzzer |
| LED Control |
Dry contact, N.O |
| Facility Code |
Programmable |
| Card Read Formats |
Selectable Wiegand 26-Bit or Clock & Da |
| PIN Code Formats |
8 selectable formats, from 1- to 8-digit length PIN Code |
| Capacity |
500 users, single/dual PIN code each |
| User Levels |
Normal, Secure and Master |
| Security Modes |
Normal, Bypass and Secure |
| Outputs |
Lock Strike output, Auxiliary output (PS-x25T series) |
| Inputs |
REX (Request-to-Exit) Auxiliary/Door Monitor with 10 programmable modes |
| Operating Environment |
All weather, indoor and outdoor use, meets IP68 |
| Operating Temperature |
-30˚C to 65˚C (-22˚F to 150˚F) |
| Dimension |
121 x 70 x 8 mm (4.77 x 2.76 x 0.31 in.) |
| Weight |
121 g (0.27 lb) |
| SYSTEM COMPONENTS |
AYC-T65 (Reader mode) is compatible with standard access controllers. With Rosslare’s PS-x25T intelligent power supplies series, it automatically converts into a 500-user secure controller. |
| PRODUCT WARRANTY |
5-Year Limited Product Warranty |
