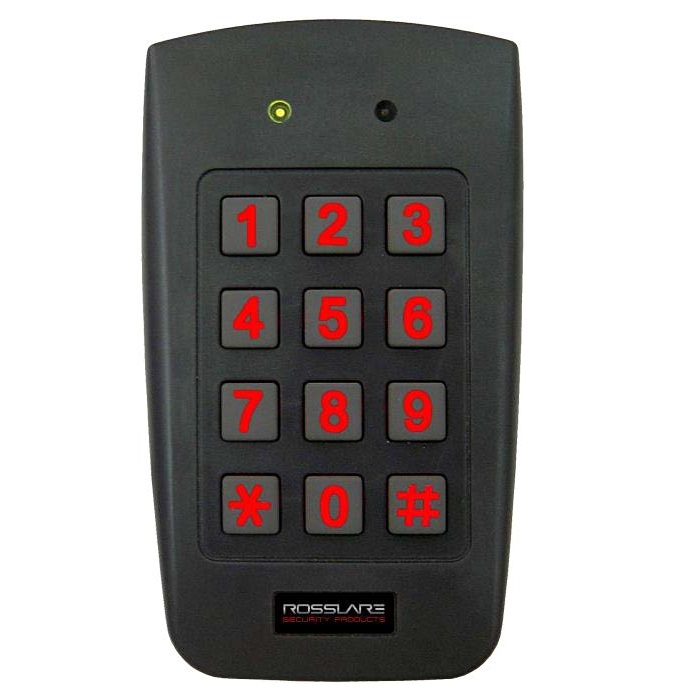

AYC-F64 PIN/PROX GANG BOX PLASTIC SECURED CONTROLLER AND 26 BIT READER

SKU: AYC-F64

PIN/PROX GANG BOX PLASTIC SECURED CONTROLLER AND 26 BIT READER

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, highly-visible RED backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User friendly menu, based on keypad, LED, and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies
Input Current	Standby: 105 mA at 12 VDC Maximum: 140 mA at 16 VDC
Tamper	Open collector, active low, 32 mA max sink curren
Keypad	3×4 keys for local programming and 4 to 8 digit PIN codes entry
Design	Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments.
Audio/Visual	Two tri-color LED indicators, built-in buzzer
LED Control	Dry contact, N.O.
Facility Code	Programmable
Card Read Formats	Selectable Wiegand 26-Bit or Clock & Data
PIN Code Formats	8 selectable formats, from 1- to 8-digit length PIN codes
Capacity	500 Users, dual code/card or code + card each
User Levels	Normal, Secure, Master
Security Modes	Normal, Bypass, Secure
Outputs	Lock Strike output; Auxiliary output (PS-x25T series)
Inputs	REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes
Operating Environment	Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use
Operating Temperature	-35°C to 66°C (-31°F to 151°F)
Dimensions	120 x 76 x 21 mm (4.7 x 3.0 x 0.8 in.)
Weight	215 g (7.6 oz)
SYSTEM COMPONENTS	AYC-F64 is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series, it automatically converts into a 500-user secure controller.
PRODUCT WARRANTY	5-Year Limited Product Warranty
