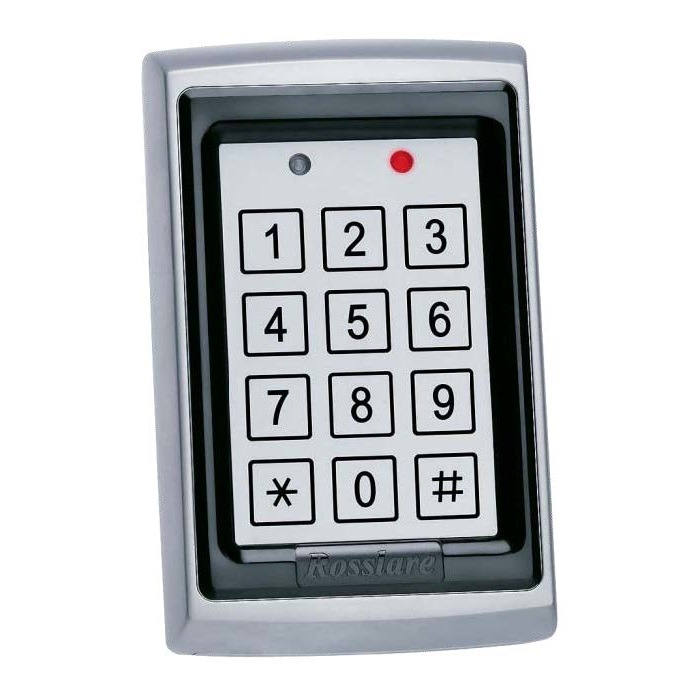

AYC-Q65 PROGRAM READER VANDAL PROX US GANG

SKU: AYC-Q65

PROGRAM READER VANDAL PROX US GANG

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, highly-visible piezoelectric keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu, based on LED and sounder indicators
Back and cover optical tamper detection and output.
Multi-format reader (Wiegand 26-Bit/Clock & Data/Card & PIN)
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies
Input Current	Standby: 90 mA at 12 VDC ; Maximum: 130 mA at 16 VDC
Tamper	Optical back tamper sensor, O.C. active low, 30 mA max. sink current
Keypad	3×4 keypad for local programming and 4- to 8-digit PIN codes entry
Design	Epoxy-potted, fully-sealed in a rugged metal enclosure, metal piezoelectric keypad, highly strong construction. Suitable for extremely harsh environments.
Audio/Visual	2 tri-color LED indicators, built-in buzzer
LED Control	Dry contact, N.O.
Facility Code	Programmable
Read Card Format	Selectable Wiegand 26-Bit, Clock & Data, Card & PIN
PIN Code Formats	9 selectable formats, from 4- to 8-digit length PIN codes
Capacity	500 users, dual code/card or code + card each
User Levels	Normal, Secure, Master
Security Modes	Normal, Bypass, Secure
Outputs	Lock Strike output ; Auxiliary output (PS-x25T series)
Inputs	REX (Request-to-Exit) Auxiliary/door monitor with 10 programmable modes
Operating Environment	All weather, indoor and outdoor use, meets IP65
Operating Temperature	-35°C to 66°C (-31°F to 151°F)
Dimensions	120 x 76 x 21 mm (4.72 x 3 x 0.83 in.)
Weight	480 g (1.05 lb)
SYSTEM COMPONENT	AYC-Q65 is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series, it automatically converts into a 500-user secure controller.
PRODUCT WARRANTY	5-Year Limited Product Warranty
