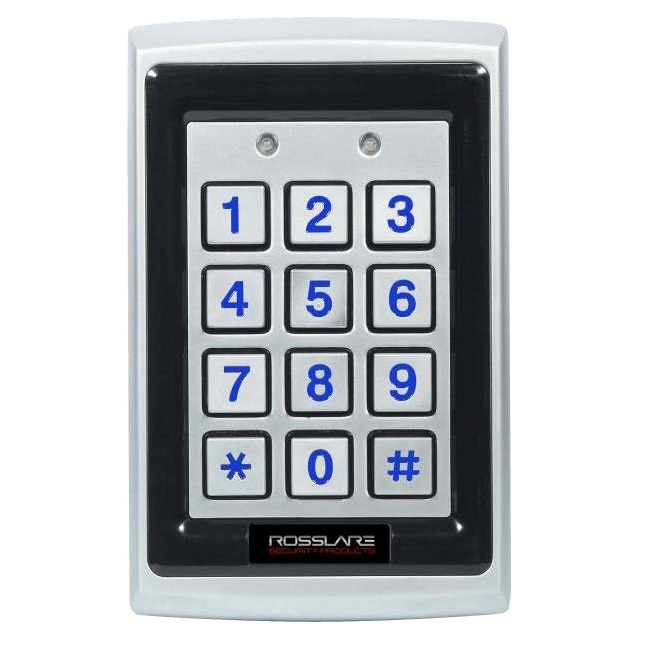

AYC-Q64B Anti-Vandal US Single Gang Backlit Standaone PROX + PIN 125 kHz Reader – Convertible

SKU: AYC-Q64B

Anti-Vandal US Single Gang Backlit Standaone PROX + PIN 125 kHz Reader – Convertible

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, highly-visible blue backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User friendly menu, based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies
Input Current	Standby: 90 mA at 12 VDC Maximum: 130 mA at 16 VDC
Tamper	Optical back tamper sensor, O.C. active low, 32 mA max. sink current
Keypad	3×4 keys for local programming and 4- to 8-digit PIN codes entry
Design	Epoxy potted, fully-sealed in a rugged metal enclosure, blue backlit metal keys, highly strong construction. Suitable for extremely harsh environments.
Audio/Visual	Two tri-color LED indicators, built-in buzzer
LED Control	Dry contact, N.O.
Facility Code	Programmable
Read Card Format	Selectable Wiegand 26-Bit or Clock & Data
PIN Code Formats	8 selectable formats, from 1- to 8-digit length PIN codes
Capacity	500 users, dual code/card or code + card each
User Levels	Normal, Secure, Master
Security Modes	Normal, Bypass, Secure
Outputs	Lock Strike output Auxiliary output (PS-x25T series
Inputs	REX (Request-to-Exit) Auxiliary/door monitor with 10 programmable modes
Operating Environment	All weather, indoor and outdoor use, meets IP65
Operating Temperature Range	-35°C to 66°C (-31°F to 151°F)
Dimensions	120 x 76 x 21 mm (4.7 x 3 x 0.8 in.
Weight	480 g (1.1 lb)
SYSTEM COMPONENTS	AYC-Q64B is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series it automatically converts into a 500-user secure controller.
PRODUCT WARRANTY	5-year limited product warranty
