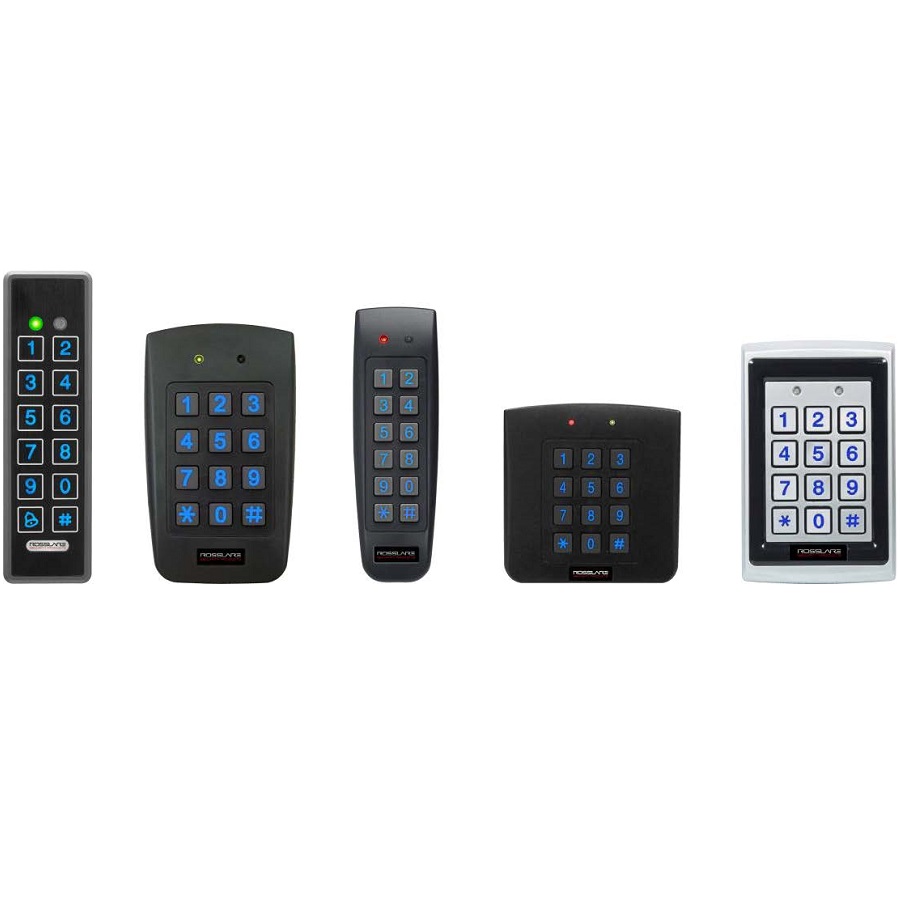

AYC-G60 MULLION BACKLIT GOPROX & PIN READER CONVERTIBLE

SKU: AYC-G60

MULLION BACKLIT GOPROX & PIN READER CONVERTIBLE

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Advanced, secure, multi-application functionality for intelligent installations
Smooth, attractive design, with all-weather indoor and outdoor operation
2 tri-colored LEDs and an integral sounder for programming and operation
Unique backlit piezoelectric keys
User-friendly menu based on keypad, LED, and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology™ formats, Wiegand 26-Bit, Clock & Data)
Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	5–16 VDC
Standby Input Current	100 mA
Maximum Input Current	140 mA
Tamper Output	Open collector, active low, max. sink current 32 mA
LED Control Input	Dry Contact N.O.
Cable Distance Host Controller	Up to 150 m (500 ft) using an 18 AWG cable
Max Proximity Card Range	60 mm (2.36 in.)
Proximity Card Modulation	ASK and FSK at 125 kHz
Card Transmit Format (Reader)	Rosslare PROX – EM cards: Wiegand 26-Bit, or Clock & Data FSK cards: According to card type
LED Indicators	Two tri-colored LEDs
Compatible Cards	125 kHz and/or dual technology ISO cards, clamshell and tags
Operating Temperature	-30ºC to 65ºC (-22ºF to 150ºF)
Outdoor Usage	Weather-resistant, meets IP-65, epoxy potted, suitable for outdoor use
Dimensions	137 x 44 x 21 mm (5.39 x 1.73 x 0.83 in.)
Weight	160 g 0.35 lbs
