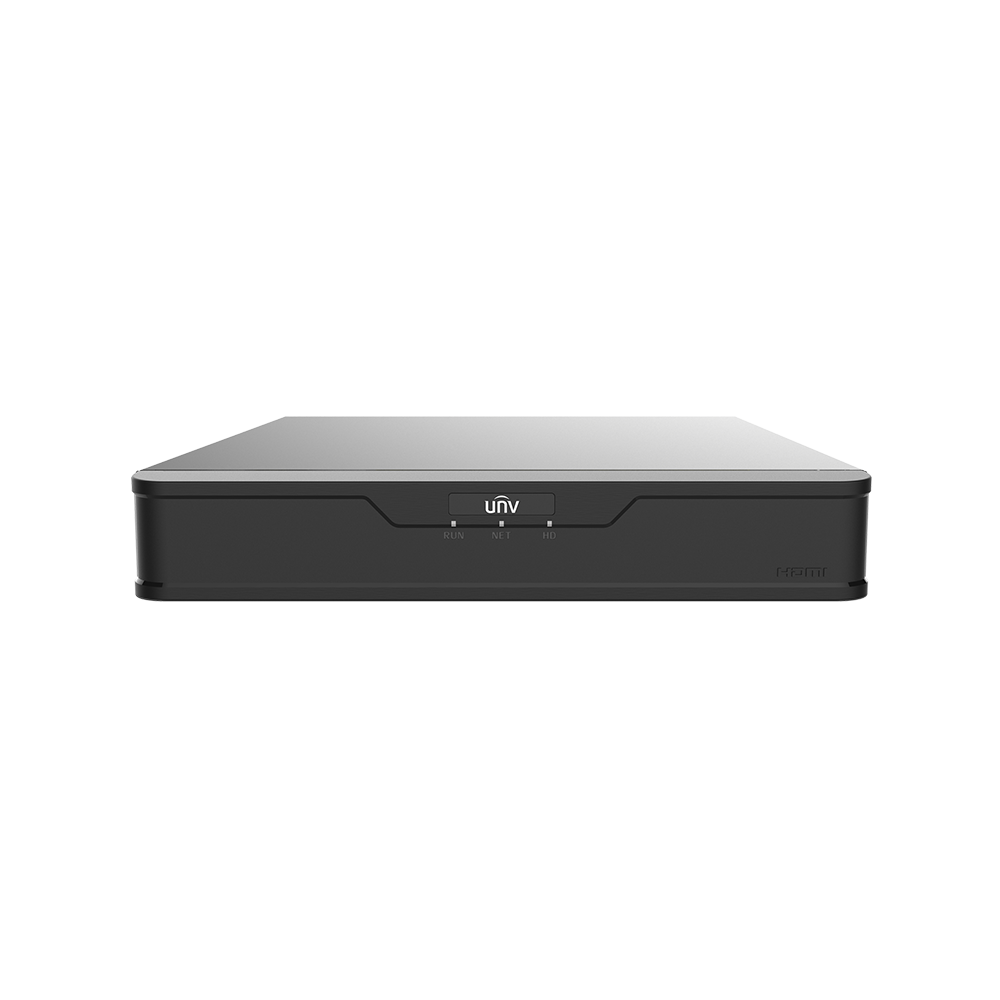

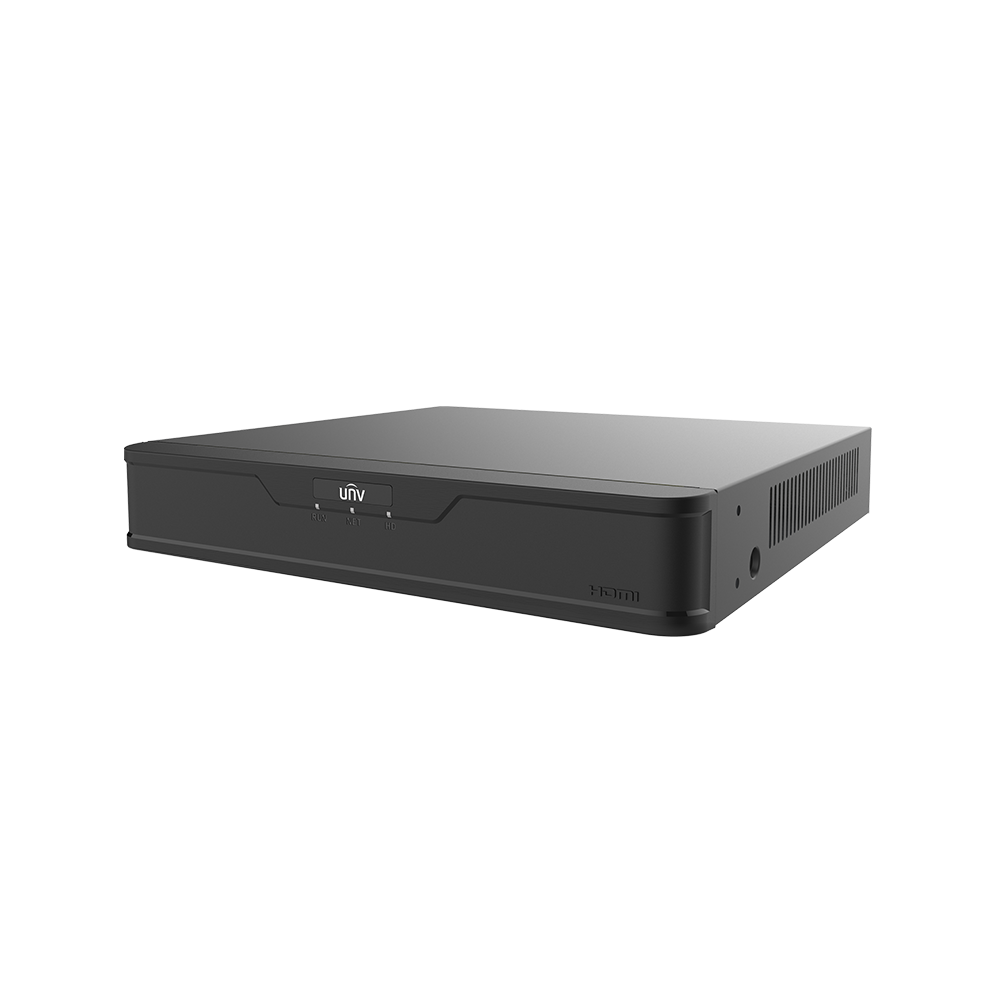

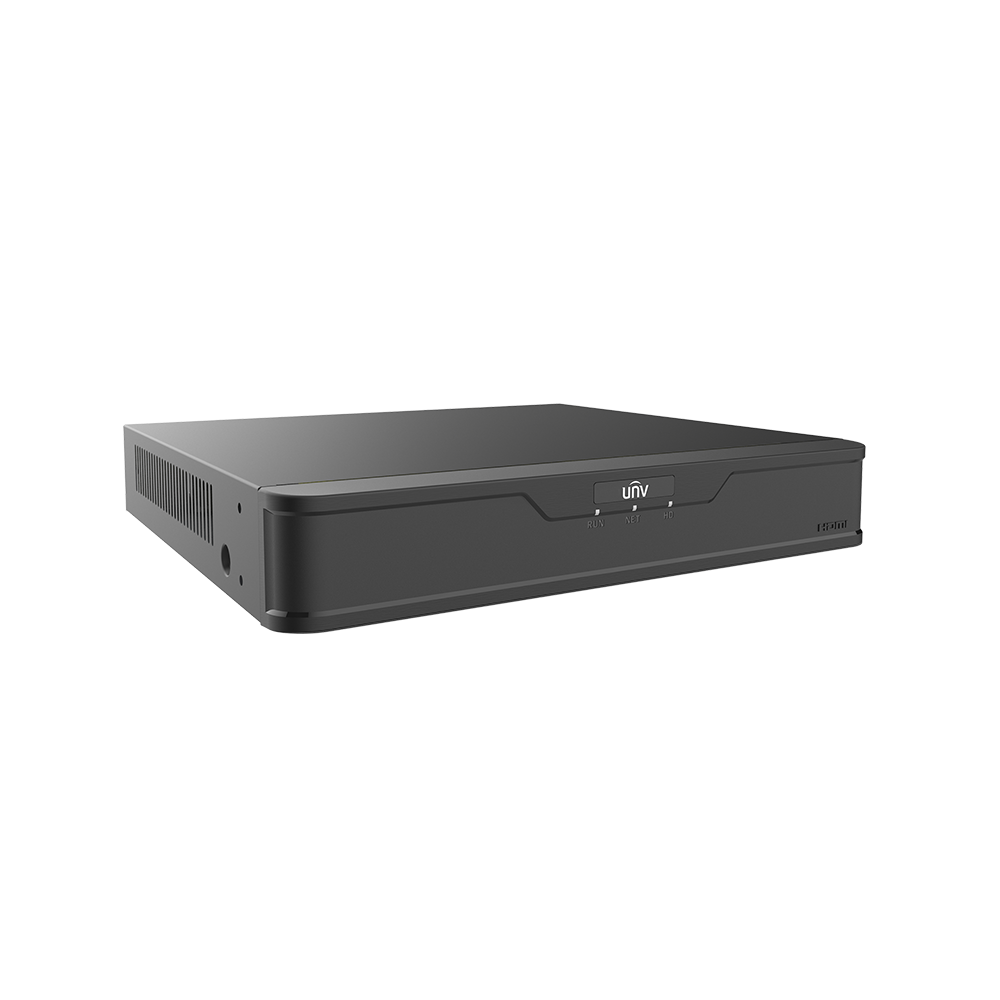

XVR301-04U3 1 HDD 4-ch 1U Digital Video Recorder

Name: XVR301-04U3 1 HDD 4-ch 1U Digital Video Recorder
Brand: UNV
SKU: XVR301-04U3

SKU: XVR301-04U3

1 HDD 4-ch 1U Digital Video Recorder

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Support Ultra 265/H.265/H.264 video formats
Support audio over coaxial cable (TVI cameras)
Control the dual-light of UNV analog cameras under TVI
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4/8-channel BNC input
Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols

Product Manual

No related firmware found.

Additional information

Channels	4 Channel
HDD Support	1 HDD
Built-in PoE Ports	N/A
IP Video Input	4-ch
Analog Video Input	4-ch , BNC
Max IP Video Input	8-ch
HDMI Output	HDMI: 4K (3840 × 2160)/30 Hz , 1920 × 1080/60 Hz , 1920 × 1080/50 Hz , 1600 × 1200/60 Hz , 1280 × 1024/60 Hz , 1280 × 720/60 Hz , 1024 × 768/60 Hz
VGA Output	VGA: 1920 × 1080/60 Hz , 1920 × 1080/50 Hz , 1600 × 1200/60 Hz , 1280 × 1024/60 Hz , 1280 × 720/60 Hz , 1024 × 768/60 Hz
Live View Display	HDMI/VGA: 1/4/6/8/9
Recording Resolution	8MP/5MP/4MP/1080P/720P/D1
Decoding Capability	Analog: 4 x 8MP @8 , 4 x 5MP @12 , 4 x 4MP @15 , 4 x 1080P@25 , 4 x 720@30 IP: 1 x 8MP@30 , 2 x 4MP@30 , 4 x 1080P@30 , 8 x 720P@30
Two-way Audio	1-ch , RCA (Using the audio input and output)
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	64Mbps
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB	Rear panel: 2 × USB2.0
Power Supply	DC 12 V/2 A
Power Consumption (without HDD)	≤ 10W
Weight (without HDD)	≤1.1 Kg ( 2.42lb )
Dimensions	260mm ×251mm× 46mm (10.2" × 9.9"×1.8")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U
