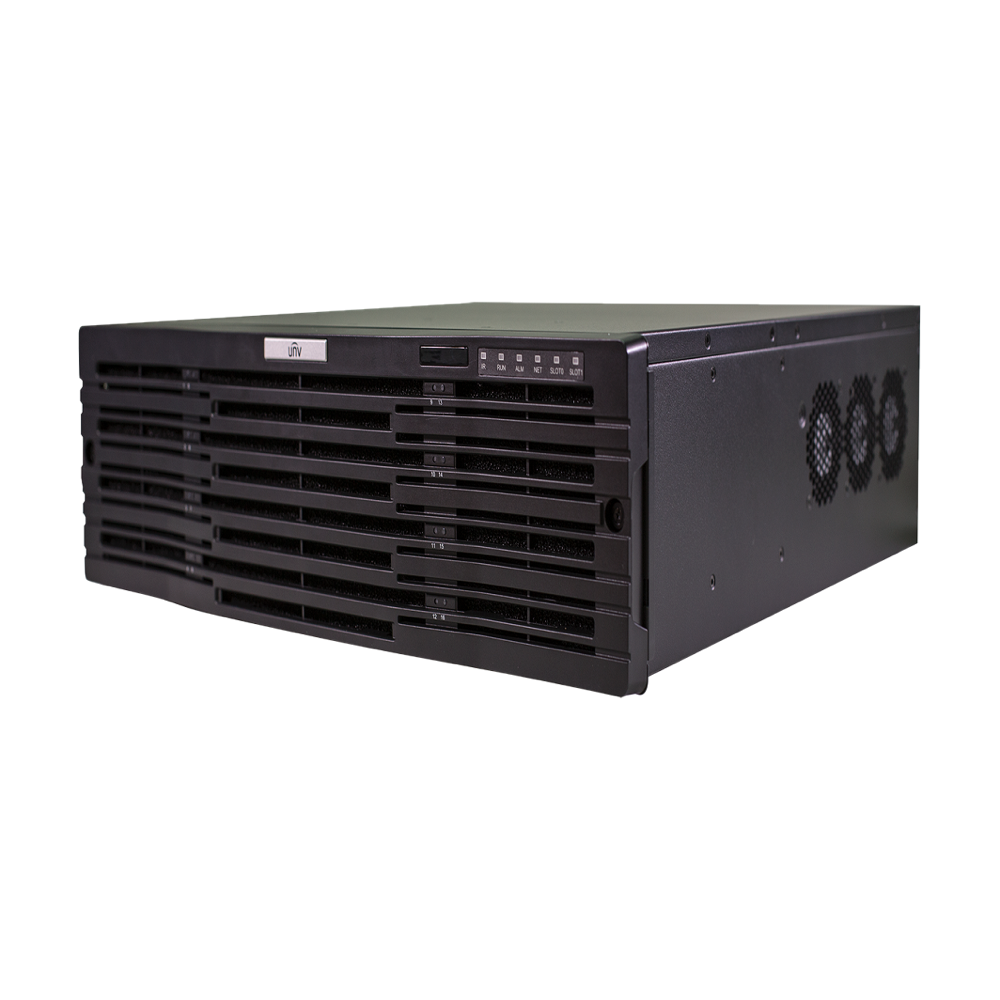

Unicorn UNV Embed All in One VMS Server

SKU: Unicorn

Call for price

UNV Embed All in One VMS Server

Add to wishlist

Add to compare

19 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Powerful connection: 1,000 devices, 2000 channels in stand-alone mode; 2,000 devices, 4,000 channels in primary/replica mode
Unified management: IPC, NVR, smart device, smart recognition access control device, entrance & exit device, cloud device, decoder, network keyboard, access control, alarm control, expansion disk enclosure, etc.
Huge storage: Max 16 SATA HDDs, and two 16-slot disk enclosures via miniSAS interfaces; expandable up to 48 disks for recording storage
Powerful decoding: Outputs 16x1080P videos to three screens (2xHDMI, 1xVGA)
High bandwidths: 512Mbps incoming bandwidth, 512Mbps storage bandwidth, and 384Mbps forwarding bandwidth
Strong compatibility: Standard ONVIF, VSS, VIID, and RTSP
High scalability: Primary/replica expansion for enhanced forwarding performance and storage capacity
Rich functionality: Basic functions including live view, playback, sequence, view, video wall, e-map, two-way audio, broadcast, alarm linkage; smart functions including perimeter protection, person detection, person recognition, LPR, entrance & exit management, access control, attendance management, mixed-traffic detection, people counting, and data search
Flexible access: PC client (C/S and B/S), mobile client (iOS and Android)
Stability: Embedded Linux OS, dual-BIOS, redundant power, and 1+1 hot standby
Security and reliability: 802.1x authentication, ARP protection, HTTPS, SSH enabling/disabling, network fault tolerance, load balancing, multi-IP configuration, secure password, and IP address filtering
Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online status, HDD status, online users, bandwidth usage, packet loss rate, log search, etc.
Abundant interfaces: 4 Gigabit copper interfaces, 2 Gigabit optical interfaces, 24 alarm inputs, 8 alarm outputs, 4 USB3.0 interfaces, 2 HDMI interfaces, and 1 VGA interface

Download

Product Manual

Unicorn

No related firmware found.

Additional information

Built-in PoE Ports	N/A
HDD Support	16 HDD
Incoming bandwidth	512Mbps
Outgoing bandwidth	384Mbps
Storage stream bandwidth	512Mbps
Decoding Capability	3 ports , total 4-ch 4K@30 , 16-ch 1080p@30 , 36-ch 720p@30 , 64-ch D1@30
Decoding resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
Built-in decoding output	2xHDMI , 1xVGA; supports simultaneous 4K output via dual HDMI ports (VGA will be unavailable in this case)
RAM	4GB
HDD	16 (No HDD is included at delivery)
USB	4*USB3.0
Alarm	24 in , 8 out
Storage expansion interface	2*miniSAS
Network interface	4GE copper interface + 2GE optical interface
12V DC output	1
Primary power input	Standard: 1 power module , optional: dual power modules , hot-pluggable
Power	100V to 240V AC Supports dual-power redundancy
Total power consumption	<50W (without HDD) ≤165W (with HDD)
Dimensions (with front panel) (H x D x W)	3U , fits in 19” standard cabinet 130.5mm×492mm×481.6mm (remove front panel for HDD installation)
Weight	≤ 10.0 kg (not including cards , power module , HDD)
