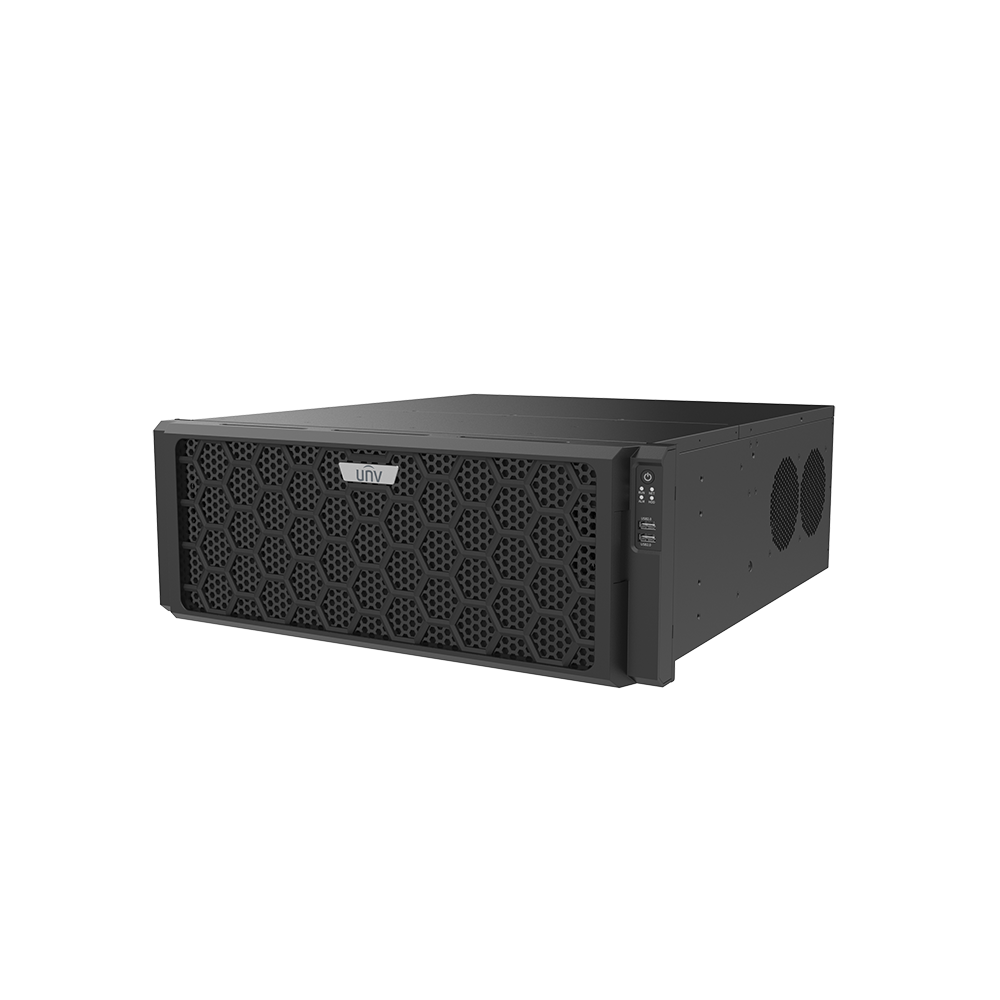

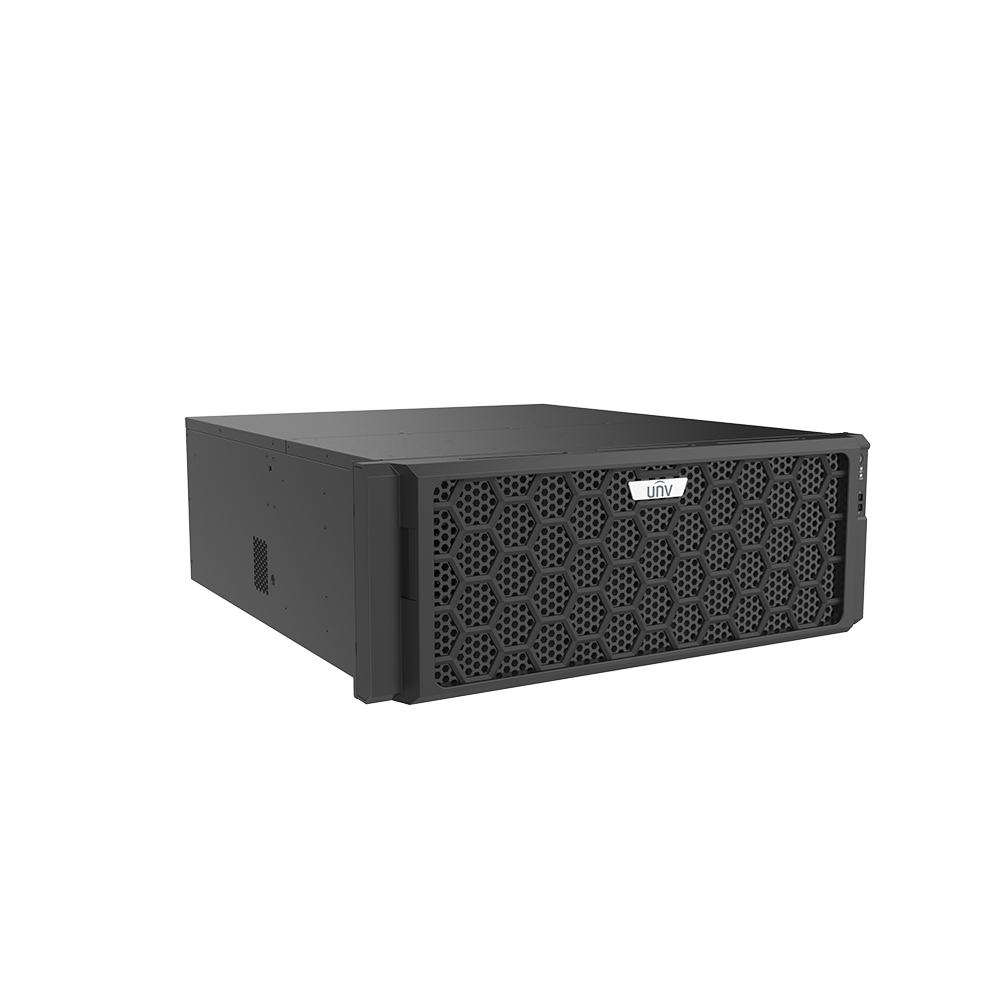

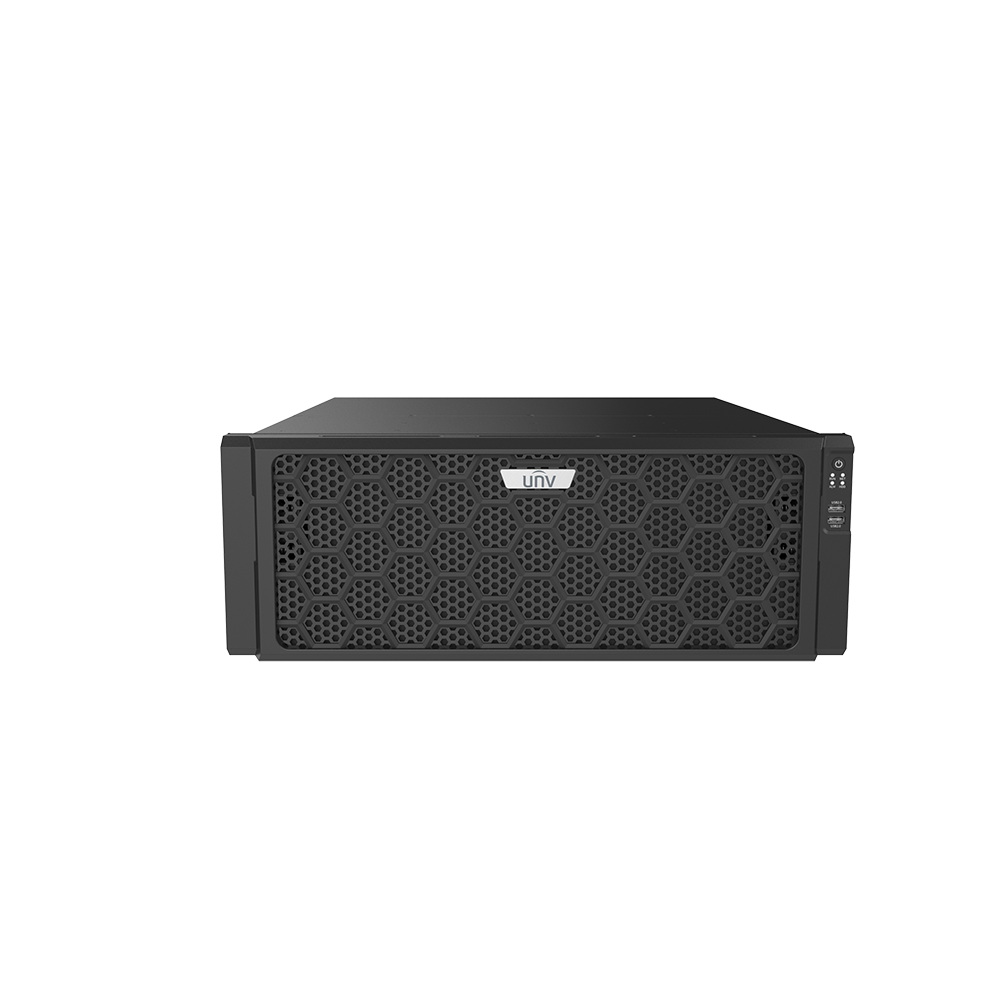

NVR524-256E 24 HDDs 256-ch 4U Network Video Recorder

SKU: NVR524-256E

24 HDDs 256-ch 4U Network Video Recorder

10 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Support Ultra 265/H.265/H.264 video formats
128/256-channel input
Support 2-ch HDMI, 2-ch VGA, HDMI1 at up to 8K(7680×4320) resolution
HDMI1/ VGA1 and HDMI2/VGA2 independent outputs provided
Up to 32 Megapixels resolution recording
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Product Manual

No related firmware found.

Additional information

Channels	256 Channel
HDD Support	24 HDD
Built-in PoE Ports	N/A
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	2 x 32MP@30 , 4 x 16MP@30 , 5 x 12MP@30 , 8 x 4K@30 , 12 x 5MP@30 , 20 x 3MP@30 , 32 x 1080P@30 , 64 x 720P@30 , 128 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 8640 pixels in length or width , For VGA/HDMI independent output , the VGA live video is output by default. To output the highest resolution video from the HDMI port , please clear the VGA video on the preview page.
Incoming Bandwidth	640Mbps
Outgoing Bandwidth	640Mbps
Remote Users	128
Recording Resolution	32MP/16MP/12MP/8MP/6MP/5MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB2.0 , Rear panel: 2 × USB3.0
Power Supply	AC 100 to 240 V
RS485	1
RS232	1
Alarm In	16-ch
Power Consumption (without HDD)	≤ 50W
Weight (without HDD)	≤ 10Kg (22.05lb)
Dimensions	485mm × 539mm × 175mm (19.1"×21.2"×6.9")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	4U
