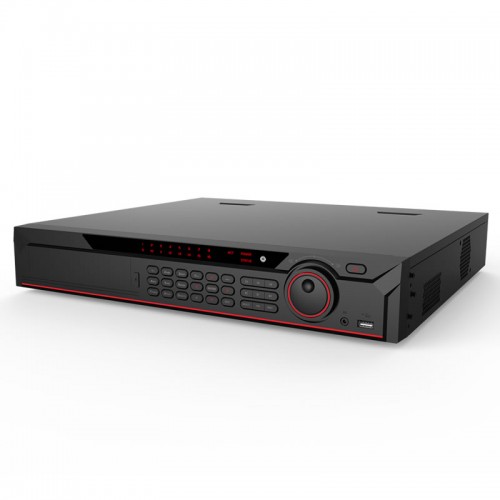

NVR524HP6-32-4KE 32 CHANNEL 1.5U 16POE 4K&H.265 PRO NETWORK VIDEO RECORDER

SKU: NVR524HP6-32-4KE

32 CHANNEL 1.5U 16POE 4K&H.265 PRO NETWORK VIDEO RECORDER

10 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Product Manual

Title	Description	Download
NVR5XX	NVR522HP6-16-4KE/ NVR522HP6-32-4KE/ NVR524HP6-16-4KE/ NVR524HP6-32-4KE	NVR5XXX-4KS2.210510

Additional information

Main Processor	Quad-core embedded processor
Operating System	Embedded LINUX
IP Camera Input	32 Channel
Two-way Talk	1 Channel Input, 2 Channel Output, RCA
Decoding Capacity	4-ch@8MP(30fps), 16-ch@1080P(30fps)
Multi-screen Display	1st Screen: 32CH: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16
OSD	Camera title, Time, Camera lock, Motion detection, Recording
Interface Network	1 RJ-45 Port (10/100/1000Mbps)
Built-in PoE Ports	16
Internal HDD	4 SATA III Ports, Up to 10 TB capacity for each HDD
USB/ RS232/ RS485	USB: 3 USB Ports (2 Rear USB 3.0 , 1 Front USB 2.0 ) RS232: 1 Port , for PC Communication and Keyboard RS485: 1 Port , for PTZ Control
Compression	Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution	12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Bit Rate	16Kbps ~ 20Mbps Per Channel
Record Mode	Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Sync Playback	1/4/9/16
Channels	32 Channel
HDD Support	4 HDD
Case	1.5U
Power	100 to 240 VAC
Power Consumption	NVR: <17.5W (Without HDD) PoE: Max 25.5W for single port, 150W total rated power, 80% control for protection
Dimensions	1.5U, 440mm x 411.2mm x 76mm ;(17.3" x 16.2" x 3.0")
Net Weight	4.65kg (10.3 lb) (without HDD)
Gross Weight	7kg (15.4 lb) (without HDD)
CE/ FCC/UL	CE: EN55032, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL 60950-1
