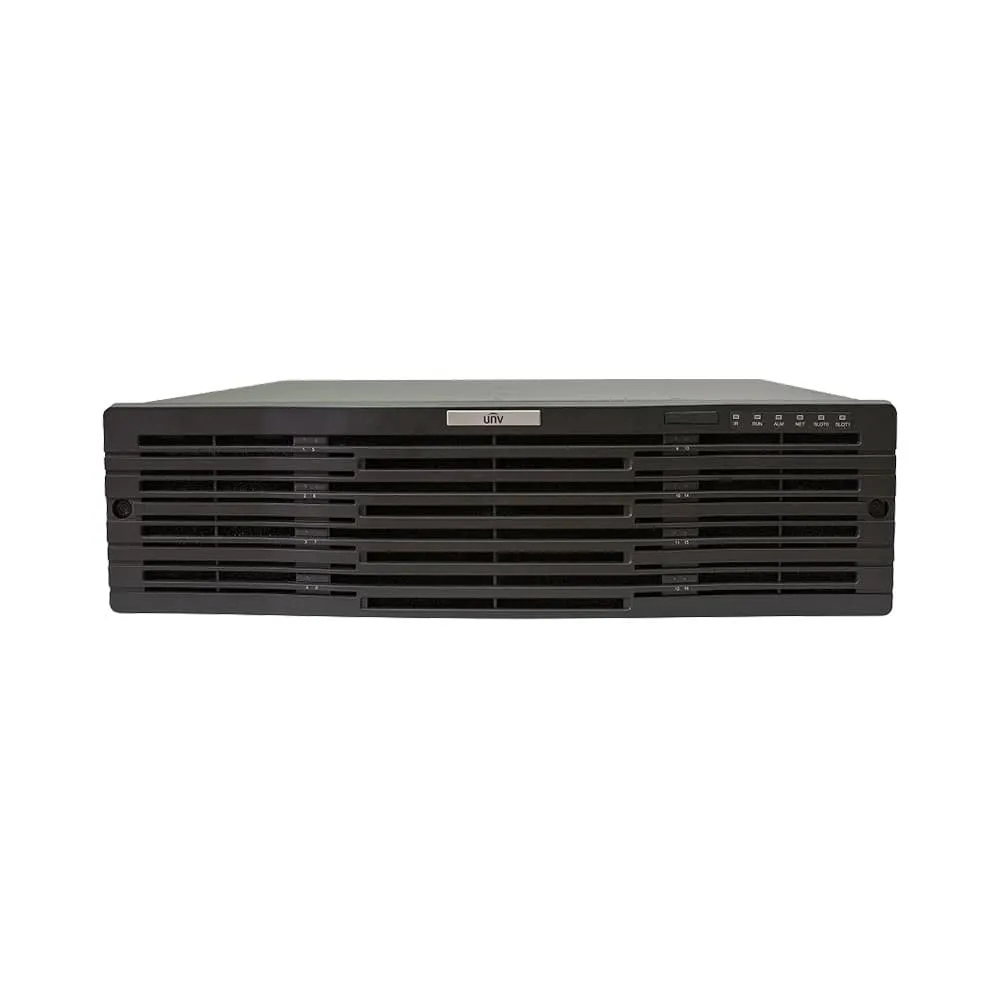

NVR516-128 128-ch 16 SATA Network Video Recorder

Name: NVR516-128 128-ch 16 SATA Network Video Recorder
Brand: UNV
SKU: NVR516-128

SKU: NVR516-128

128-ch 16 SATA Network Video Recorder

13 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Support Ultra 265/H.265/H.264 video formats
128-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
HDMI1, HDMI2 and VGA independent outputs provided
Up to 12 Megapixels resolution recording
Redundant power supply optional
2 decoding cards optional, up to 12-ch HDMI
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
16 SATA HDDs, up to 10TB for each HDD
Support 2 miniSAS Interfaces
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Product Manual

No related firmware found.

Additional information

IP Video Input	128-ch
Two-way Audio Input	1-ch , BNC
Incoming/Outgoing Bandwidth	512Mbps/384Mbps
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	16-ch
Decoding format	Ultra 265, H.265, H.264
Live view/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Channels	128 Channel
HDD Support	16 HDD
Capacity	up to 10TB for each HDD
eSATA	1 eSATA interface
Interface Network	4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface
Power Output	12V
Power	100 to 240 VAC
Power Consumption	≤ 50 W (without HDD)
Dimensions	482mm ×477mm × 131mm (18.8"× 19.0" ×5.1")
Weight (without HDD)	≤ 10 Kg (22.05 lb)
