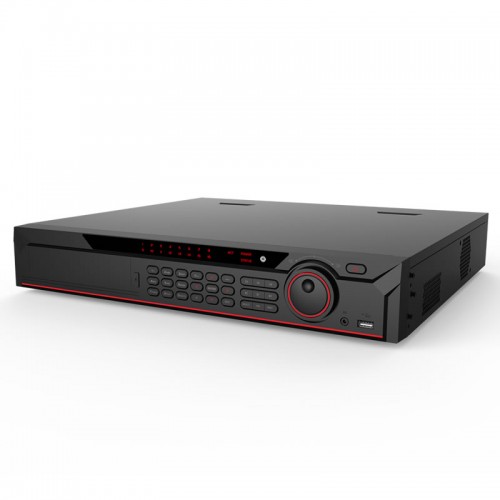

NVR424HP6-32-4K 32 CHANNEL 1.5U 16POE 4K&H.265 LITE NETWORK VIDEO RECORDER

SKU: NVR424HP6-32-4K

32 CHANNEL 1.5U 16POE 4K&H.265 LITE NETWORK VIDEO RECORDER

10 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • H.265/H.264 codec decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 8MP Resolution for Preview and Playback
  • Up to 2ch@4K/8ch@1080P decoding
  • HDMI/VGA simultaneous video output
  • Support IPC UPnP, 16 PoE ports

Download

Product Manual

Related Firmware

TitleDescriptionDownload
NVR4XXNVR421HP4-4-4K/ NVR422H-16-4K/ NVR422HP8-8-4K/ NVR422HP6-16-4K/ NVR424H-32-4K/ NVR424HP6-16-4K/ NVR424HP6-32-4KNVR4XXX-4KS2.201126
Additional information
Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

IP Camera Input

32 Channel

Two-way Talk

1 Channel Input

,

1 Channel Output

,

RCA

Decoding Capacity

2ch@4K 30fps, 8ch@1080P 30fps

Multi-screen Display

32CH: 1/4/8/9/16/25/36

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Interface Network

1 RJ-45 Port (10/100/1000Mbps)

Channels

Built-in PoE Ports

16

Internal HDD

4 SATA III Ports, Up to 6 TB capacity for each HDD

USB/ RS232/ RS485

USB: 2 ports(1 USB2.0

,

1 USB3.0) RS232: 1 Port

,

for PC Communication and Keyboard RS485: 1 Port

,

for PTZ Control

Compression

H.265/ H.264

Resolution

8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Recorde Rate

200Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Playback

1/4/9/16

HDD Support

Power

100 to 240 VAC

Power Consumption

NVR: <13.7W (Without HDD) PoE: Max 25.5w for single port, 150w in total

Case

Dimensions

1.5U, 440mm×411.1mm×76mm (17.3" x 16.2" x 3.0")

Net Weight

4.7kg (10.4lb) (without HDD)

Gross Weight

7.5kg(16.5 lb)(without HDD)

CE/FCC/UL

CE: EN55032, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL60950-1
