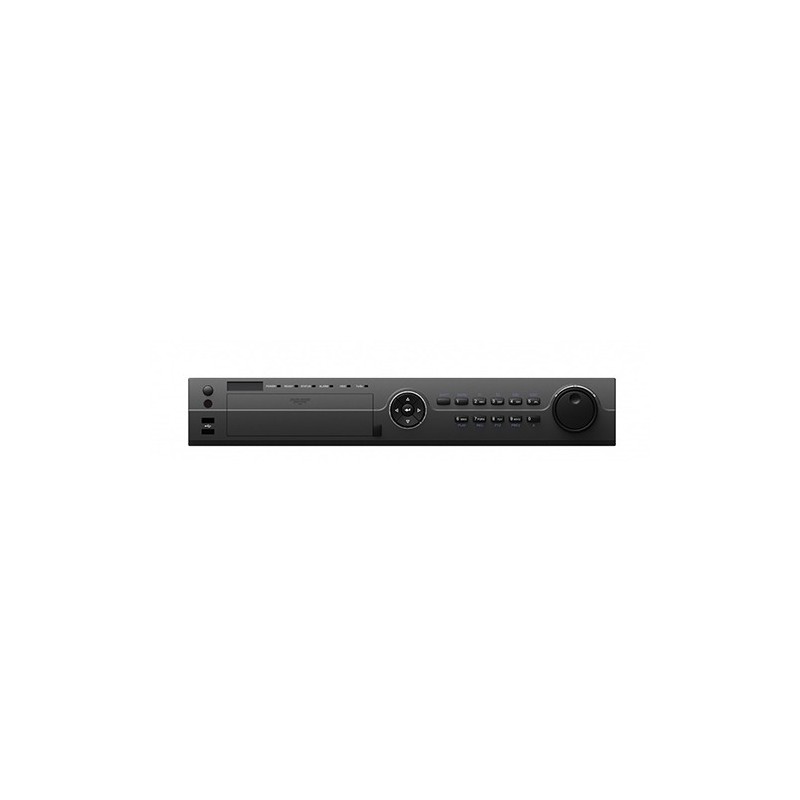

NR51P6-32

Please Log in For Pricing

16 Channel NVR

Features

Description

?4K Network Video Recorder
32CH IP Video
?16 Independent PoE Network Interfaces
?H.265, H.264+, H.264 Video Formats
?3rd Party Network Cameras Supported
?Up To 12MP Resolution Recording
?Up To 256 Mbps Incoming Bandwidth
?4 SATA Interfaces Up To 6TB Each HDD
?HDMI, VGA Outputs

Specifications
POE Interface
Interface N/A
POE supported standard IEEE 802.3 af/at
Power (POE) ≤ 40 W
General
Power Supply DC12V, PoE (802.3af)
Dimensions Φ70mm× 66mm× 155mm
Weight 0.42Kg
Consumption (without hard disks) ≤ 10W
Chassis 380 chassis
Working temperature (video recorder) -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working humidity (video recorder) 10 % ~ 90 %
Video/Audio input
IP Video Input 8-ch
Decoding
Synchronous Playback 16-ch
Live View / Playback Resolution 6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 8-ch@720P,6-ch@1080P
Network(NVR)
Remote Connections 128
Incoming bandwidth 50Mbps
Outgoing bandwidth 80Mbps
Hard disk
SATA 2 SATA interface for 2 HDDs
Capacity Up to 4TB for each disk
External Interface
Serial Interface 1 RS-485 (half-duplex), 1 RS-232
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Network interface (video recorder) 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Alarm in/out 16/4
Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
Recording resolution 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio output(video recorder) 1-ch, RCA (Linear, 1kΩ)
HDMI output resolution 1-ch, resolution:1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA output resolution 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
