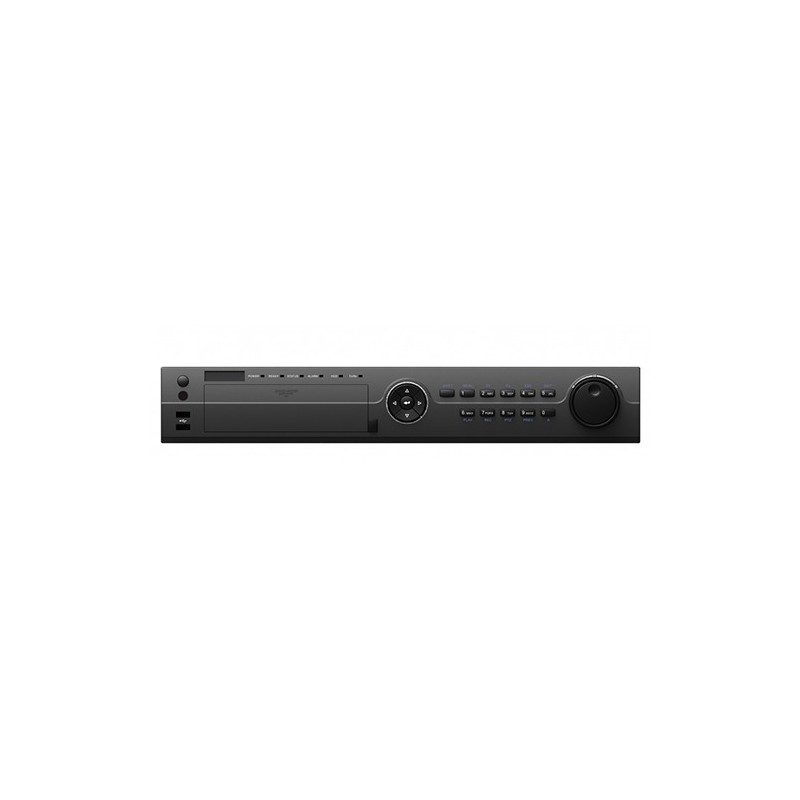

NR510-32

Please Log in For Pricing

32 Channel 320Mbps 1.5U 4K Network Video Recorder

Features

Description

32CH Embedded NVR
Total 256M Incoming Bandwidth
1-Port HDMI with 4K Output; 1-Port VGA Output @ 1080P
4-Port SATA up to 24TB HDD Capacity
?2 Self-Adaptive 10/100/1000M Network Interface

Specifications
Decoding
Synchronous Playback 16-ch
Live View / Playback Resolution 6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding format H.265/H.264/MPEG4
Capability 8-ch@720P,6-ch@1080P
Network(NVR)
Remote Connections 128
Incoming bandwidth 50Mbps
Outgoing bandwidth 80Mbps
Hard disk
SATA 2 SATA interface for 2 HDDs
Capacity Up to 4TB for each disk
eSATA (optional) 1 eSATA interface
External Interface
Serial Interface 1 RS-485 (half-duplex), 1 RS-232
Alarm in/out 16/4
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Network interface (video recorder) 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Video/Audio input
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1KΩ)
IP Video Input 8-ch
Video/Audio output
Audio output(video recorder) 1-ch, RCA (Linear, 1kΩ)
HDMI output resolution 1-ch, resolution:1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA output resolution 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
General
Power ≤80 W
Power Supply DC12V, PoE (802.3af)
Dimensions Φ70mm× 66mm× 155mm
Operating Humidity 90% or less
Consumption (without hard disks) ≤ 10W
Chassis 380 chassis
Weight (without hard disks) ≤ 1 kg
Custom
Operating Temperature -10°C to 50°C
