NR32P6-16

Please Log in For Pricing

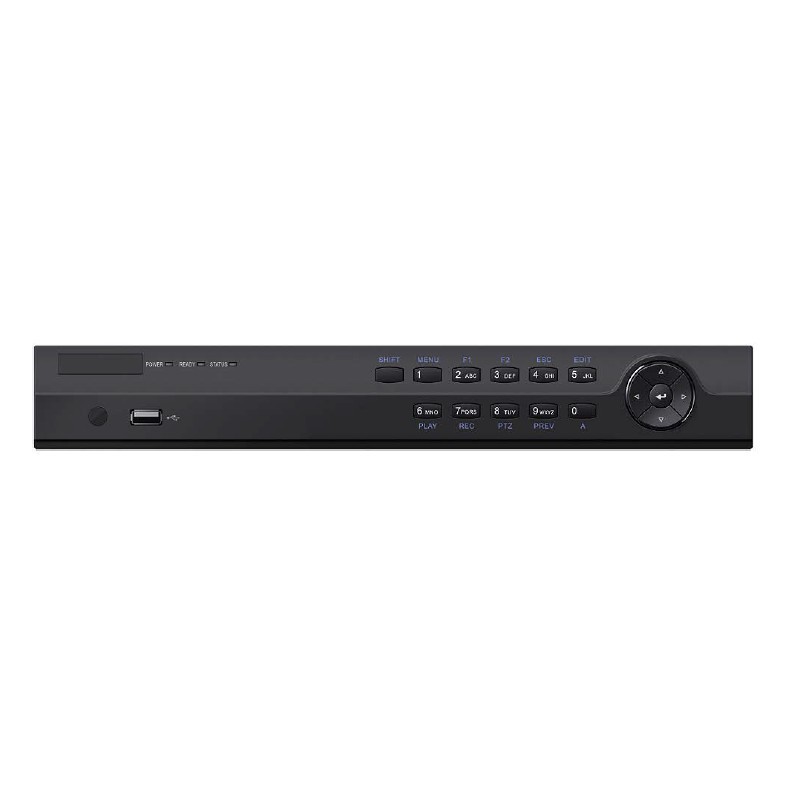

16 Channel 4K 160M 1U 16 POE NVR

Product specifications
POE Interface
Interface N/A
POE supported standard IEEE 802.3 af/at
Power (POE) ≤ 40 W
General
Power Supply DC12V, PoE (802.3af)
Dimensions Φ70mm× 66mm× 155mm
Weight 0.42Kg
Consumption (without hard disks) ≤ 10W
Chassis 380 chassis
Power ≤80 W
Working temperature (video recorder) -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working humidity (video recorder) 10 % ~ 90 %
Video/Audio input
IP Video Input 8-ch
Decoding
Synchronous Playback 16-ch
Capability 8-ch@720P,6-ch@1080P
Decoding format H.265/H.264/MPEG4
Network management
Network Protocols TCP/IP PPPoE DHCP EZVIZ Cloud P2P DNS DDNS NTP SADP NFS iSCSI UPnP™ HTTPS ONVIF
Hard disk
SATA 2 SATA interface for 2 HDDs
Capacity Up to 4TB for each disk
Network(NVR)
Incoming bandwidth 50Mbps
Outgoing bandwidth 80Mbps
Video/Audio output
Recording resolution 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio output(video recorder) 1-ch, RCA (Linear, 1kΩ)
HDMI output resolution 1-ch, resolution:1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA output resolution 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
External Interface
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Network interface (video recorder) 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Alarm in/out 16/4
Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Description

Description

  • H.265 / H.264 / H.264+ / MPEG4 Decoding format
  • 16CH IP Video Input
  • Video Output: HDMI & VGA
  • Up to 4K (3840 x 2160) resolution
  • Recording: 2-ch @ 4K, or 8-ch @ 1080p
  • Audio Output: 1H, RCA (Linear, 1KΩ)
  • Alarm I/O: 4CH / 1CH
  • Playback: 16CH
  • PoE: 16CH
  • 2 SATA interfaces for 2 HDD (Up to 6TB for each disk)
  • 1 10/100/1000Mbps Network interface
  • VCA detection alarm is supported
