NCA02-PHL

Please Log in For Pricing

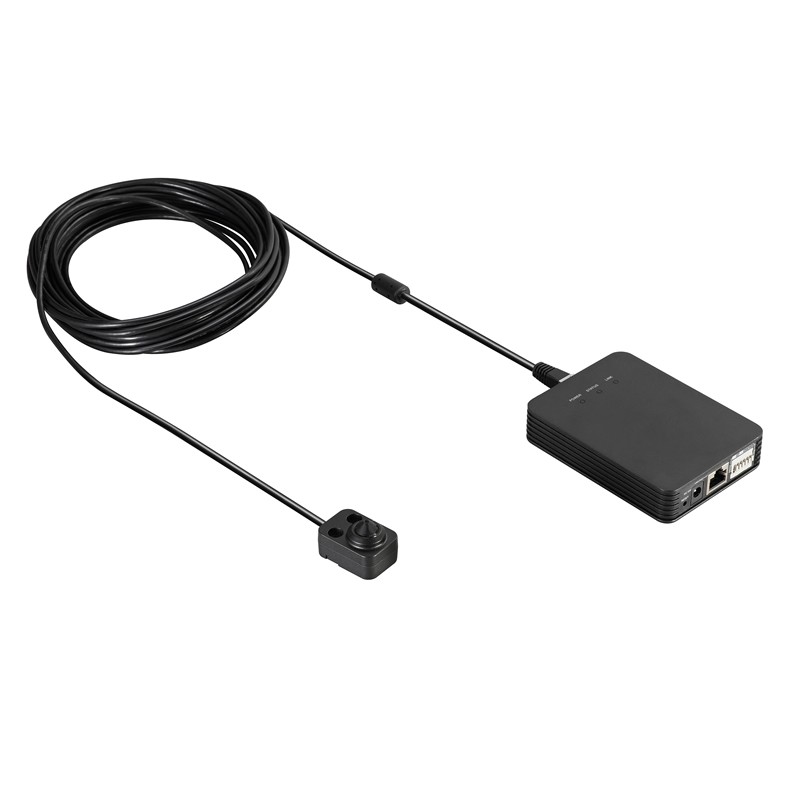

2MP Separated WDR Pinhole Covert Network Camera

Features

Description

1/2.7?? Progressive Scan CMOS
Up to 1920?1080@30fps for real-time output
True WDR, up to 120dB
PoE power supply is supportable
Built-in Micro SD / SDHC / SDXC card slot, up to 128GB Support HLC, Defog
Optional appearance of the front-end(the mini bullet and block) and brackets

Specifications
Camera
Image Sensor 1/4” 1Megapixel progressive scan CMOS
Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
Min. Illumination 0. 01Lux/F1.8( Color), 0Lux/F1.8 (IR on)
Frame Rate Main Stream: 720P(1 ~ 25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps)
Lens 4mm@ F2.0 (6mm, 12mm optional) 1920 × 1080:Angle of view: 79° 2048 × 1536: Angle of view: 70°
Lens Mount M12
Slow Shutter Support
Defog On / Off
DNR 3D DNR
Length of Lens Cable Optional 2m or 8m
Video
Video Bit Rate H.264H: 16K ~ 8Mbps
WDR 120dB
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Audio
Audio Interface 1/1 channel In/Out(-A)
Interface
Audio Interface 1/1 channel In/Out(-A)
Alarm Input (-A) 1
Alarm Output (-A) 1
Network
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Network Storage NAS
Alarm Trigger Motion detection, tampering alarm
Standard ONVIF, PSIA, CGI, ISAPI
General (Network) One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 4W
Working Environment -30°C~+60°C, Less than 95%RH
Dimensions Φ70mm× 66mm× 155mm
Communication Interface 1 RJ45 10M/100M Ethernet interface
Net Weight 0.4kg (0.88lb)
Shipping Weight 2m cable:
Max. Resolution 2048×1536
Image Settings Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
High Light Compensation Support
ROI Yes, up to 4 configurable areas
BLC Yes, zone configurable
Image Overlay Support 128 × 128 size BMP with 24-bit depth image overlay, zone optional
Compression Standard
Video Compression H.264/MJPEG
Audio Compression G.711/G.722.1/G.726/MP2L2 *only for –S models
H.264 Type Main Profile
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) *only for –S models
Menu
Day/Night Mode Auto / Timing / Alarm trigger
