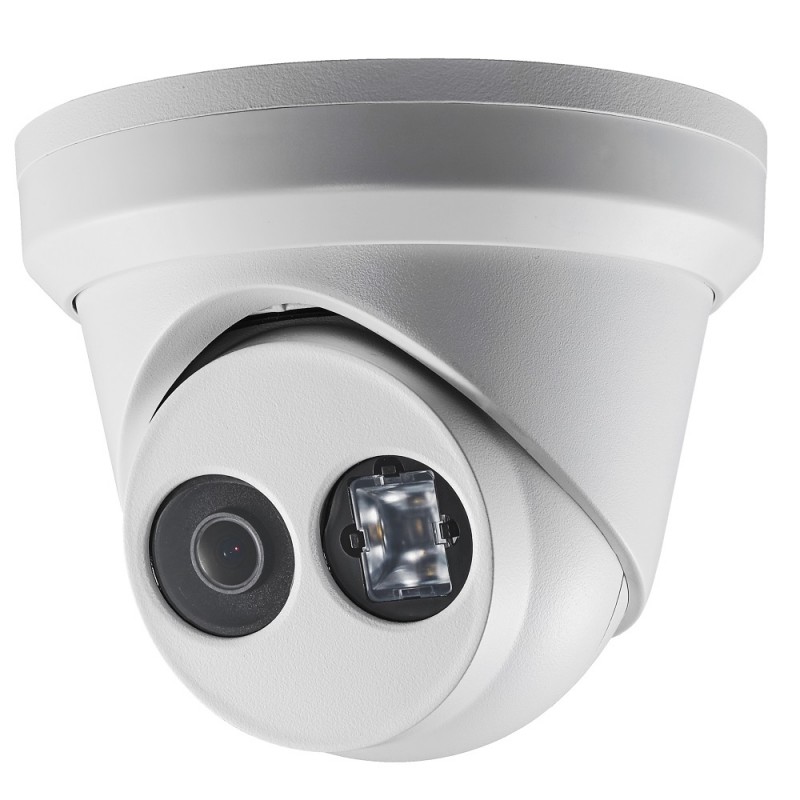

NC326-XD-W 6 MP IR Fixed Turret Network Camera
Click to enlarge

NC326-XD-W4MM 6 MP IR Fixed Turret Network Camera

SKU: NC326-XD-W4MM

6 MP IR Fixed Turret Network Camera

Add to wishlist
Add to compare
13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 1/2.9″ Progressive Scan CMOS
  • 3072 × 2048@20 fps
  • 4 mm fixed lens
  • Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
  • H.265+, H.265, H.264+, H.264
  • 2 Behavior analyses
  • 120dB WDR
  • BLC/3D DNR/ROI
  • IP67
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

Download

Product Manual

No related firmware found.
Additional information
Lens Size

Color

White

Image Sensor

1/2.9" Progressive Scan CMOS

Minimum Illumination

Color: 0.01Lux@ (F1.2, AGC ON), 0 Lux with IR

Digital Noise Reduction

3D DNR

Wavelength

850nm

3‐Axis Adjustment

Pan:0° to 360°,tilt:0° to 75°,rotate:0° to 360°

Focal Length

2.8/4/6/8mm

Max. Aperture

F2.0

Lens Mount

M12

IR Range

Up to 30 m

Camera Style

WDR

120 dB

Max. Resolution

3072 × 2048

Interface Network

1 RJ45 10M/100M self-adaptive Ethernet Interface

Power

12VDC±25%

,

Φ5.5mm coaxial power plug PoE(802.3af

,

class3)

Power Consumption and Current

12VDC,0.5A, max.6.0W PoE:(802.3af,36Vto57V), 0.3A to 0.2A, max.7.5W

Camera Resolutions

Protection

IP67

Material

Metal

Dimensions

Camera:Φ127.3×95.9mm(5″×3.8″) Package:150×150×141mm(5.9″×5.9″×5.6″)

Weight

Camera:620g(1.4lb.)
