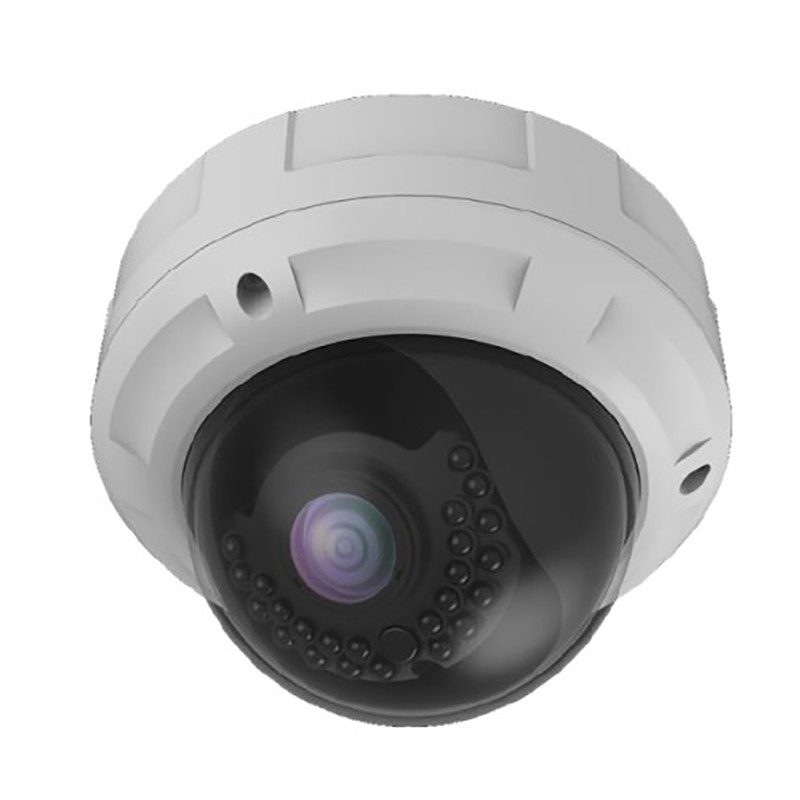

NC312-VD 2 Megapixel CMOS Vandal-proof Network Dome Camera

Name: NC312-VD 2 Megapixel CMOS Vandal-proof Network Dome Camera
SKU: NC312-VD

SKU: NC312-VD

2 Megapixel CMOS Vandal-proof Network Dome Camera

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Up to 2 megapixel (1920 x 1080) resolution, real-time output
Support ROI function
Standard video compression with high compression ratio
Progressive scan CMOS, capture motion video without incised margin
Support dual stream, and the sub-stream for mobile surveillance
High-performance and long service life Infrared LED, Approx. 10 to 20 meters IR range
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
IR cut filter with auto switch
PoE (Power over Ethernet)
Ingress Protection level: IP66
Electronic shutter for different surveillance environments
Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10
Other functions: reset, heartbeat, mirror, etc
Support intrusion detection and line crossing detection
Support VCA, which is compatible with NVR for the second time of video searching and analysing

Product Manual

No related firmware found.

Additional information

Image Sensor	1/3" Progressive Scan CMOS
Camera Style	Dome
Camera Resolutions	2 MP
Minimum Illumination	0.01 lux @(F1.2 , AGC ON) , 0 Lux with IR 0.014 lux @(F1.4 , AGC ON) , 0 Lux with IR
Shutter Speed	1/3 s to 1/100000 s
Angle Adjustment	Pan:0° – 355° , Tilt: 0° – 75° , Rotation: 0° – 355°
Lens Size	2.8 ~ 12mm
Lens Mount	Φ14
IR Range	Up to 30 m
Video Compression	H.264/ MJPEG
Max. Resolution	1920 × 1080
Video Bit Rate	N/A
Power	DC12V±10% , PoE (802.3af)
Power Consumption and Current	Max. 5.5 W
Ingress Protection level	IP66
Product Dimension	Φ 140 × 99.9 mm (Φ 5.51” × 3.94”)
With Package Weight	1000g
