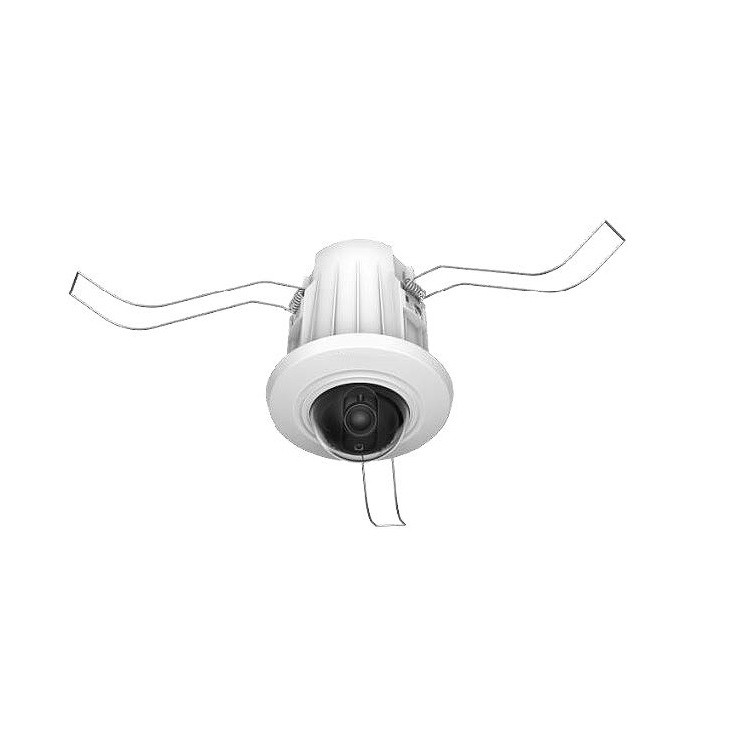

NC312-RDW 2.0MP Recessed Mount Dome Network Camera

SKU: NC312-RDW 2.8mm

2.0MP Recessed Mount Dome Network Camera

Add to wishlist

Add to compare

14 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Up to 1920 x 1080 resolution
Full HD1080p real-time video
Efficient encoding capability
Support SD/SDHC/SDXC card, up to 128GB Tool-free installation
Support DC12V and PoE power supply
3D Digital Noise Reduction
Digital WDR
Dual-streams
Backlight Compensation
Support EZVIZ Cloud service
Mobile monitoring (IVMS-4500 or EZVIZ app) Built-in Wi-Fi optional

Download

Product Manual

Download file for product 17773

No related firmware found.

Additional information

Alarm Trigger	Motion detection , Tampering alarm , Network disconnect , IP address conflict , Storage exception
Angle of View	2.8mm: 106°
BLC	Support , zone configurable
Channel Bandwidth	20/40MHz Support
Communication Interface	1 RJ45 10M/100M Ethernet port
Day & Night	Auto/Schedule/Triggered by Alarm In
Digital Noise Reduction	3D DNR
Dimensions	Φ93.9×121.6
Dual Stream	Support
Electronic Shutter Speed	1/3s ~ 1/100 , 000s
Frame Rate	50Hz: 25fps (1920 x 1080 , 1280 × 960 , 1280 × 720) 60Hz: 30fps (1920 x 1080 , 1280 × 960 , 1280 × 720)
Frequency Range	2.4 GHz ~ 2.4835 GHz
General (Network)	One-key reset , Flash-prevention , dual stream , heartbeat , mirror , password protection , privacy mask , watermark , IP address filtering , Anonymous access
H.264 Type	Baseline Profile / Main Profile
Image Sensor	1/3’’ Progressive Scan CMOS
Image Settings	Rotate Mode , Saturation , Brightness , Contrast , Sharpness adjustable by client software or web browser
Lens Mount	M12
Lens Size	2.8mm
Max. Resolution	1920 x 1080
Min. Illumination	0.01 Lux @ F1.2 , AGC ON
Network Protocols	TCP/IP , UDP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , UPnP , SMTP , SNMP , IGMP , 802.1X , QoS , IPv6 , Bonjour
Network Standards	ONVIF (PROFILE S , PROFILE G) , PSIA , CGI , ISAPI
Network Storage	NAS (Support NFS , SMB/CIFS) , ANR
On-Board Storage	Built-in Micro SD/SDHC/SDXC slot , up to 128 GB
Operating Conditions	-10 °C ~ 40 °C (-14 °F – 104 °F) , Humidity 95% or less (non-condensing)
Power Consumption	Max. 4.2W
Power Supply	DC12V ± 10% , PoE (802.3af)
Protocols (Wireless)	802.11b: CCK , QPSK , BPSK , 802.11g/n: OFDM
Receive Sensitivity	11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical)
ROI	Support
Security (Wireless)	64/128-bit WEP , WPA/WPA2 , WPA-PSK/WPA2-PSK , WPS
Transfer Rates	11b: 11Mbps , 11g: 54Mbps , 11n: up to 150Mbps
Transmit Output Power	11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm
Video Bit Rate	32 Kbps – 8 Mbps
Video Compression	H.264 / MJPEG
Weight	200g
Wide Dynamic Range	Digital WDR
Wireless Range	50 meters *The performance varies based on actual environment.
Wireless Standards	IEEE802.11b , 802.11g , 802.11n
Camera Style	Dome
