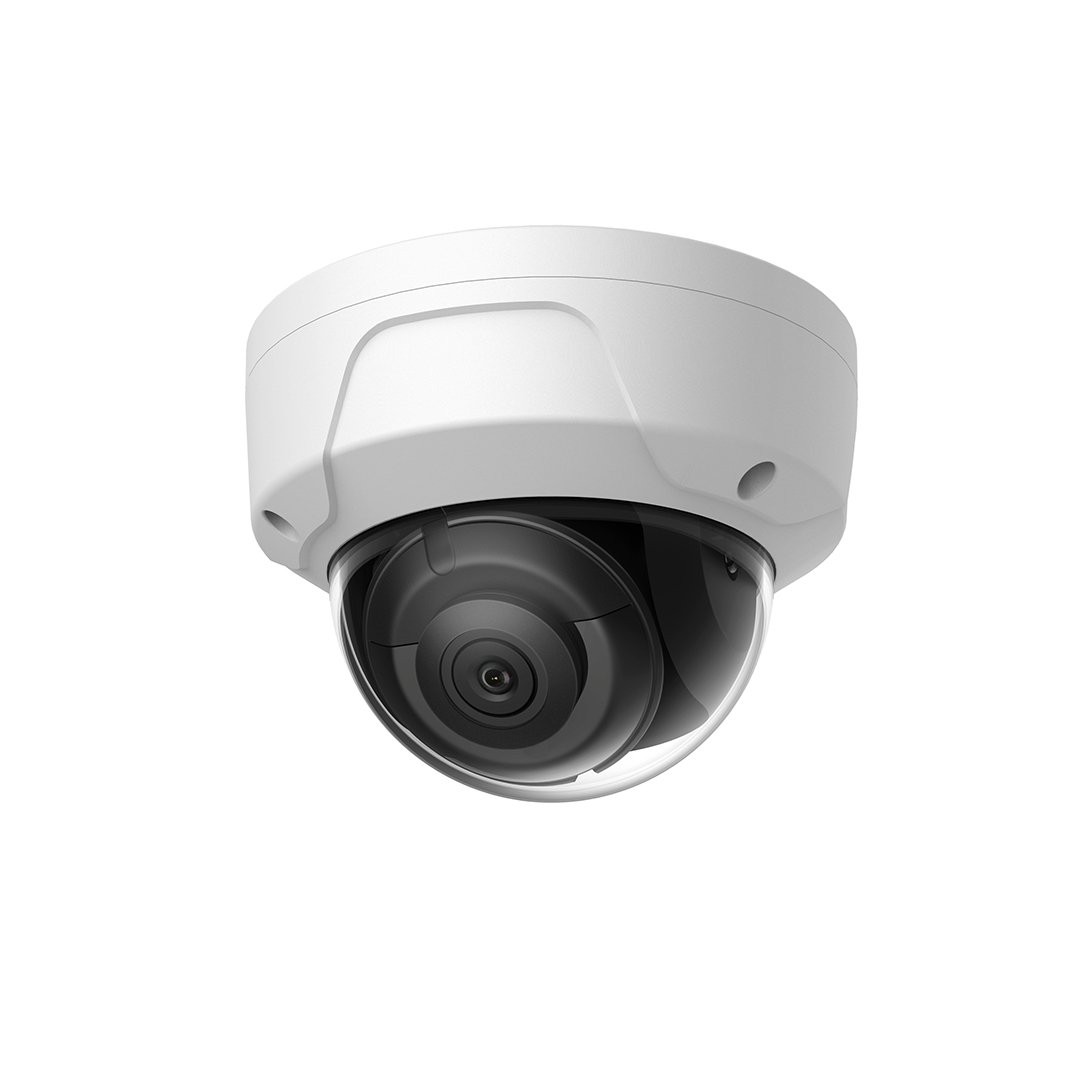

NC328G2-TD 8 MP AcuSense Vandal WDR 2.8mm Fixed Dome Network Camera
Click to enlarge

NC328G2-TD 8 MP AcuSense Vandal WDR 2.8mm Fixed Dome Network Camera

SKU: NC328G2-TD 2.8mm

8 MP AcuSense Vandal WDR Fixed Dome Network Camera

Add to wishlist
Add to compare
13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • High quality imaging with 8 MP resolution
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Camera Style

Image Sensor

1/2.8" Progressive Scan CMOS

Min.Illumination

Color: 0.005 Lux@ (F1.6

,

AGC ON)

,

B/W:0 Lux with IR

Lens Size

Shutter Speed

1/3s to 1/100

,

000s

Slow Shutter

Yes

Wide Dynamic Range

120dB

Day & Night

IR cut filter

Angle Adjustment

Pan:0°to 355°

,

tilt:0°to 75°

,

rotate:0°to 355°

Lens Type

Lens Mount

M12

Aperture

F1.6

IR Wavelength

850nm

Color

White

IR Range

Up to 30 m

Video Bit Rate

32 Kbps to 16 Mbps

SNR

≥52dB

Ethernet Interface

1RJ45 10M/100M self-adaptive Ethernet port

Camera Material

Aluminum alloy body Bubble:plastic

Camera Dimension

Ø110.8mm×84.7mm (Ø4.4"×3.3")

Package Dimension

134mm×134mm×108mm (5.3"×5.3"×4.3")

With Package Weight

Approx.720g(1.6lb.)

Power Consumption and Current

12V DC

,

0.5A

,

max.6W PoE(802.3af

,

36V to 57V)

,

0.25A to 0.15A

,

max.7.5W

Power Supply

12V DC±25%

,

reverse polarity protection PoE:802.3af

,

Class3

Power Interface

Ø5.5mm coaxial power plug

Protection

IK10

,

IP67
