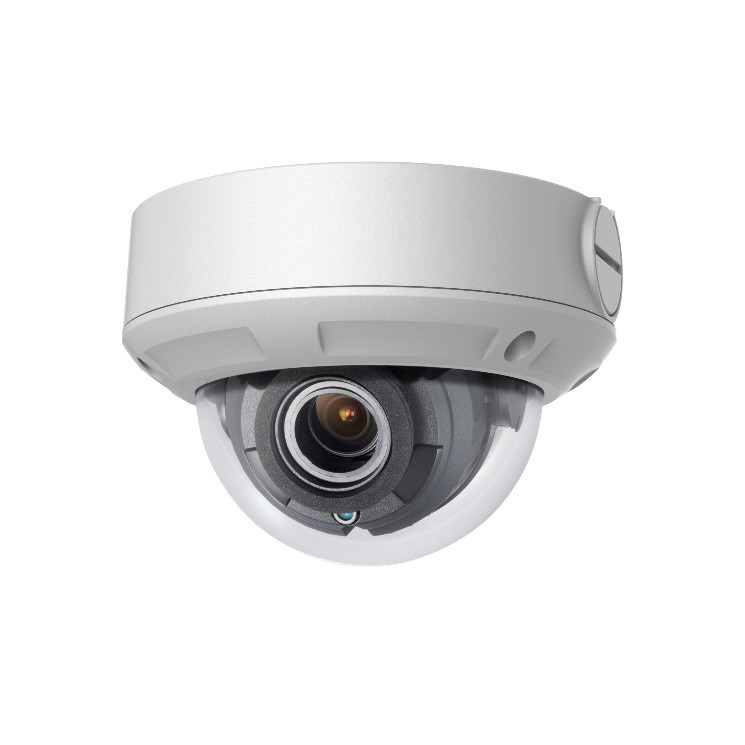

NC224G2-VDZ 4 MP Accsense VF 2.8-12mm Network Dome Camera

SKU: NC224G2-VDZ

4 MP MD 2.0 Varifocal Dome Network Camera

Add to wishlist

Add to compare

13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 256 GB SD card slot for storage
Water and dust resistant (IP67) and vandal proof (IK10)
EXIR 2.0: advanced infrared technology with long IR range
Clear imaging even with strong back lighting due to 120 dB WDR technology
Efficient H.265+ compression technology

Download

Product Manual

No related firmware found.

Additional information

Alarm Trigger	Motion detection , video tampering alarm , network disconnected , IP address conflicted , illegal login
Angle Adjustment	Pan: 0° to 355° , tilt: 0° to 70° , rotation: 0° to 360°
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Auto iris	No
Client	CMS , Guarding Vision
Communication Interface	1 RJ45 10M/100M self‐adaptive Ethernet port
Day & Night	Auto , scheduled
Digital Noise Reduction	3D DNR
Dimensions	Camera: Φ 141 mm × 99.9 mm (5.6" × 3.9") With package: 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
Electronic Shutter Speed	1/3 s to 1/100 , 000 s , support slow shutter
Focal Length	2.8 to 12 mm
Focus Control	Auto
FOV	Horizontal field of view: 95.9° to 29.2° Vertical field of view: 50.6° to 16.4° Diagonal field of view: 114.7° to 33.5°
General Function	One‐key reset , anti‐flicker , heartbeat , mirror , password protection , privacy mask , watermark , IP address filter
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Image Enhancement	BLC , 3D DNR
Image Sensor	1/3" progressive scan CMOS
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
IR Range	Up to 30 m
Lens Mount	Φ14
Main Stream	60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Material	Metal
Max. Resolution	2560 × 1440
Max. User Access	Up to 32 users 3 levels: Administrator , Operator and User
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Network Protocols	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , UPnP , SMTP , SNMP , IGMP , 802.1X , QoS , IPv6 , UDP , Bonjour
Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Consumption	12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
Power Supply	12 VDC ± 25% , 5.5 mm coaxial power plug PoE (802.3af , class 3)
Protection	IP67 , IK10 TVS 2000V lightning protection , surge protection and voltage transient protection
Simultaneous Live View	Up to 6 channels
Sub‐Stream	60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Bit Rate	32 Kbps to 8 Mbps
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
Web Browser	IE8+ , Chrome 31.0‐44 , Firefox 30.0‐51 , Safari 8.0+
Weight	Camera: approx. 820 g (1.8 lb.) With package: approx. 1200 g (2.6 lb.)
Wide Dynamic Range	120 dB
Camera Style	Dome
