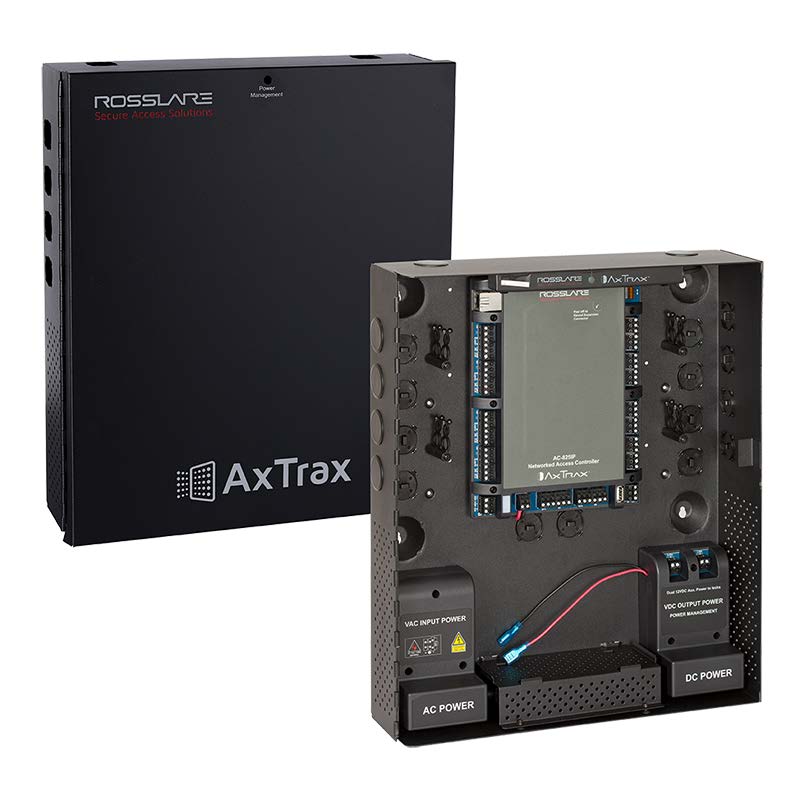

ME-1515-U AC-825IP Series Controller Enclosure with Integrated Power Supply

SKU: ME-1515-U

Enclosure for AC-825IP Series

13 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Global input voltage-100 to 240 VAC, 1.6 A, 50/60Hz auto select.
Power module delivers isolated 13.8 VDC power @ 2 Amp output channels with PTC resettable fuse and LED indications.
Built-in power event generation to let the control panels receive power supply and UPS events.
Built-in Rosslare LightBar for lighting the way during maintenance and installation.
Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating.
Silk screen of all the connections on inside of door.
Rosslare PowerLock C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket. Can be supplied with various C14 power plugs per country requirements.
Supplied with removable terminal blocks and special key for ease of installation.

Product Manual

No related firmware found.

Additional information

Switch Mode PS Input Voltage	100 ~ 240 VAC,50 ~ 60 Hz from main power Maximum input current: 1.6A
Switch Mode PS Output Voltage	15 VDC,4 A (60 W) to the PM-10 power management board
Power Output from PM-10	Isolated PTC fused output, providing 13.8 VDC, 2A
Battery Charger Output	13.8 VDC, 300mA for 12 VDC, 7Ah lead acid battery
Built-In Speaker (Audio Indication)	0.5 W, 8Ω
LED Indicators	2 LED for Power Outputs 1 and 2 Green LED shows power status visible when case is closed
Light Bar/Tamper Switch	0.3 W for LED light bar
Lock Type	Mini-cylinder lock with 2 keys
Enclosure Dimensions	404 × 346 × 101 mm (15.9 x 13.6 x 4.0 in.)
Weight	4.5 kg (9.92 lb)
Product Warranty	2-year limited product warranty
