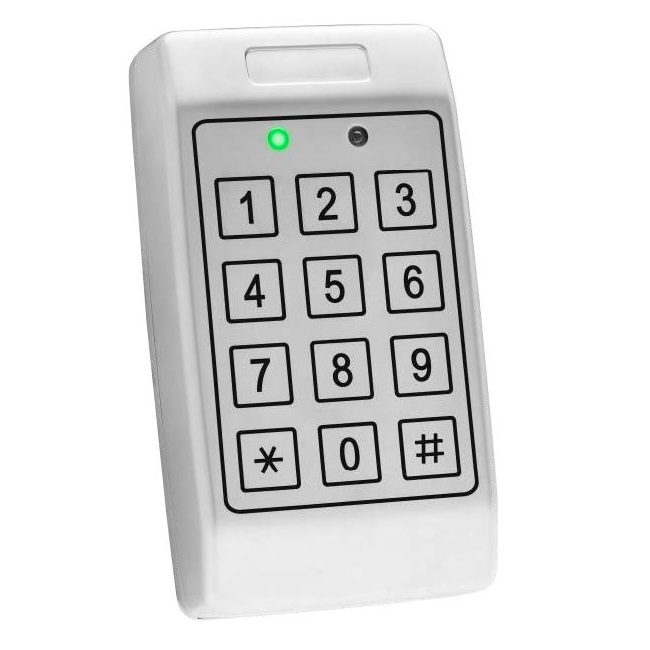

ANTI-VANDAL PIEZOELECTRIC PIN STANDALONE CONTROLLER
Carrier information
Payment methods
Unlimited help desk
| Operating Voltage Range | 12 to 24VDC, from a regulated power supply 16VAC, from a transformer |
|---|---|
| Input Current | Standby: 15mA, at 12VDC Maximum: 75mA, at 12VDC |
| Tamper | Optical back tamper sensor, O.C. active low 32mA max sink current |
| Relay Outputs | Lock Strike: 3A, N.O. and N.C. Auxiliary: 3A, N.O. and N.C. |
| Inputs | REX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Keypad | 3×4 Keys for local programming and 4 to 8 digit PIN codes entry |
| Design | Epoxy potted, fully sealed in a rugged metal slim enclosure, high strength construction, High-sensitive Piezo metal keys. Highly suitable for extremely harsh environments. |
| Audio/Visual | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, Built-in sounder |
| Capacity | 500 Users, single / dual code each |
| User Levels | Normal / Secure, Master |
| Security Modes | Normal, Bypass and Secure |
| Operating Environment | Water resistant, suitable for outdoor use, meets IP65 |
| Dimensions (H x W x D) | 120 x 65 x 27 mm (4.72 x 2.6 x 1.06 in.) |
| Weight | 400g (0.882 lbs) |
| SYSTEM COMPONENTS | The BL-D40 alarm, chime and door bell. Push to Exit buttons. |
| PRODUCT WARRANTY | 5-Year Limited Product Warranty |
