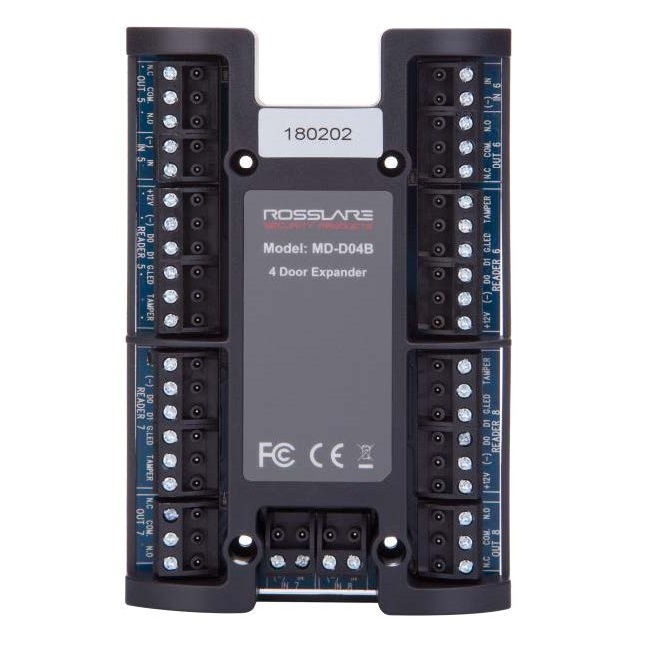

4-READER EXPANSION MODULE FOR AC-425X-B NETWORKED ACCESS CONTROL PANELS
Carrier information
Payment methods
Unlimited help desk
| Input Voltage | 12 VDC from host controller |
|---|---|
| Input Current (not including devices) | Standby: 30 mA Maximum: 135 mA |
| Number Reader Ports | 4 |
| Number of Inputs | 4 |
| Output Relays | 4 x 5 A with N.O., N.C. and COM contacts Form-C Relays |
| Inputs Voltage | 5 VDC maximum voltage |
| Reader Output Voltage | 12 VDC |
| Maximum Reader Current | 300 mA |
| LED Control Output | Open collector, active low |
| Tamper Output | 5 VDC maximum voltage, optical anti-tamper sensor |
| Supported Formats | Various, please refer to AxTraxNG User Guide or the AxTraxPro User Guide |
| Power LED | Active when mounted correctly on the host controller (AC-425) |
| Output LEDs | Four LEDs; Each output LED is active when an output relay is activated and N.O. to COM contacts are shorted |
| Dimensions | 115 x 75.9 x 32.5 mm (4.52 x 2.98 x 1.28 in.) |
| Weight | 98.2 g (0.21 lb) |
| PRODUCT WARRANTY | 2-year limited product warranty |
