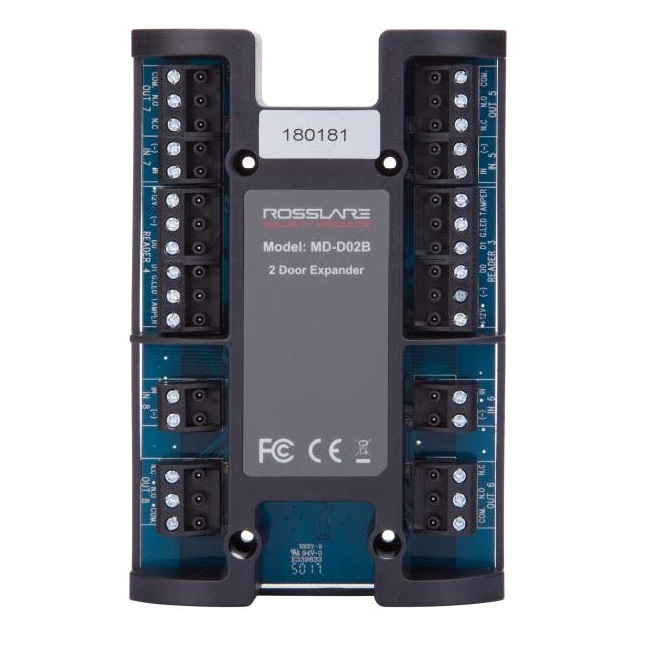

MD-D02B 2-READER EXPANSION MODULE FOR AC-225X-B CONTROL PANEL
Click to enlarge

MD-D02B 2-READER EXPANSION MODULE FOR AC-225X-B CONTROL PANEL

ROSSLARE
SKU: MD-D02B

Call for price

2-READER EXPANSION MODULE FOR AC-225X-B CONTROL PANEL

Add to wishlist
Add to compare
13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Additional two proximity readers or keypads
  • Four relay outputs and four supervised inputs to the access control panel
  • Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
  • LED status feedback for 12 V power and relay activation
  • Cost effective and modular installation
  • Input and output configurability using Rosslare’s AxTraxNG or AxTraxPro Access

Download

Product Manual

No related firmware found.
Additional information
Input Voltage

12 VDC from host controller

Input Current (not including devices)

Standby: 30 mA Maximum: 135 mA

Number of Reader Ports

2

Number of Inputs

4

Output Relays

4 x 5 A with N.O., N.C. and COM contacts Form-C Relays

Inputs Voltage

5 VDC maximum voltage

Reader Output Voltage

12 VDC

Maximum Reader Current

300 mA

LED Control Output

Open collector, active low

Tamper Input

5 VDC maximum voltage

Supported Formats

Various, please refer to the AxTraxNG User Guide or the AxTraxPro User Guide

Power LED

Active when connected to a power source

Output LEDs

Four LEDs, each output LED is active when an output relay is activated and N.O. to COM contacts are shorted

Dimensions

100 x 75.9 x 32.5 mm (3.9 x 3.0 x 1.3 in.)

Weight

98.2 g (0.2 lb)

PRODUCT WARRANTY

2-year limited product warranty
