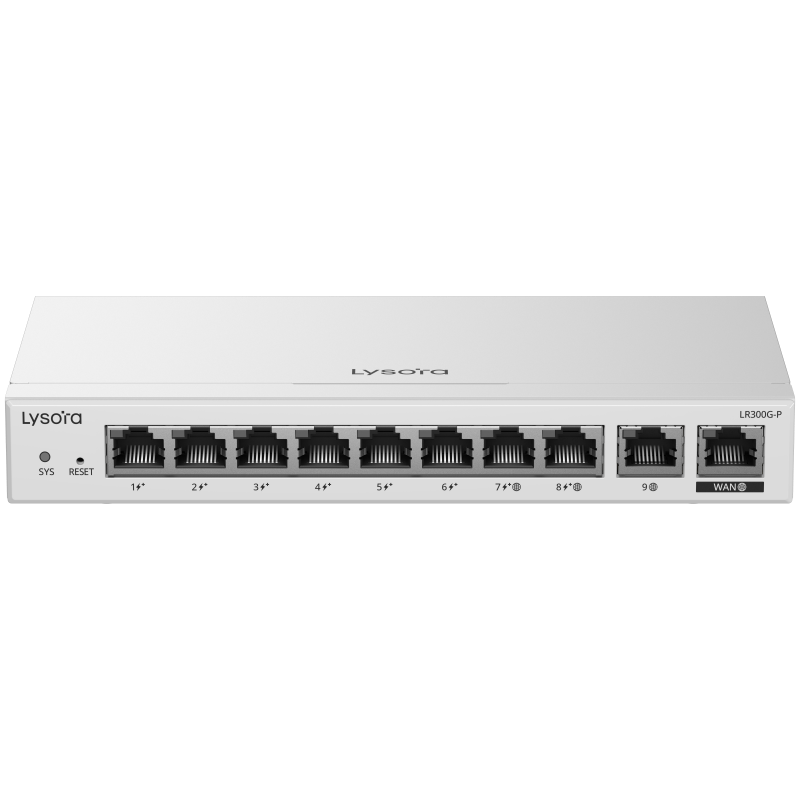

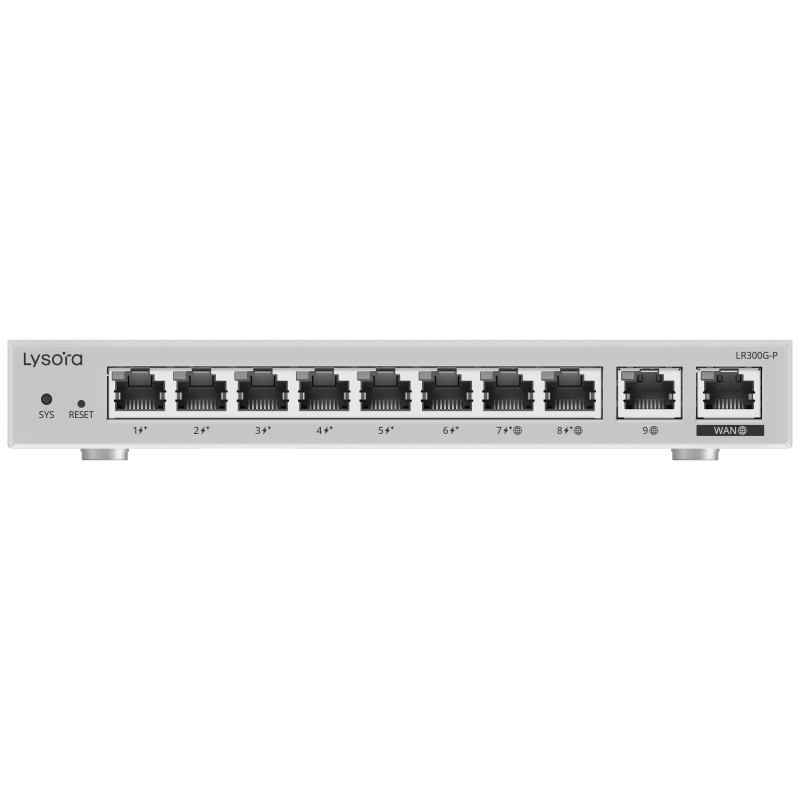

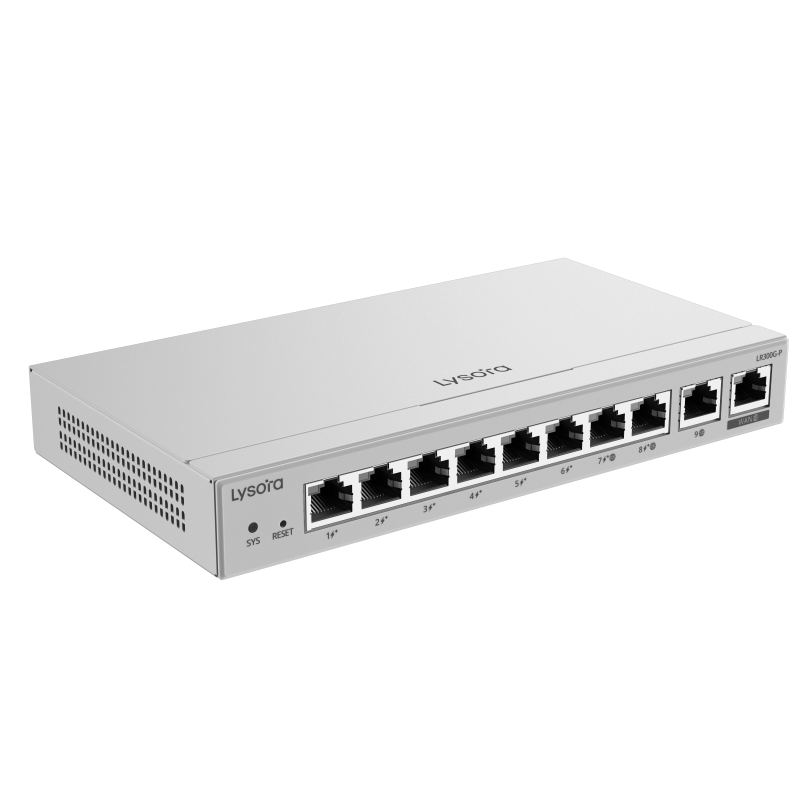

LR300G-P 10-Port Cloud Managed Router with 110 W PoE Budget

Product Overview

The LR300G-P is a professional-grade, high-performance 10-Port Gigabit PoE+ Gateway designed for small-to-medium enterprises (SMEs) and high-density environments. Built with a robust fanless metal enclosure, it integrates powerful routing, security, and wireless AC (Access Point Controller) capabilities into a single desktop unit. With a 1.5 Gbps throughput and a substantial 110W PoE budget across 8 ports, it is engineered to power and manage up to 150-500 APs while maintaining a massive concurrent session capacity of 100,000, ensuring stable connectivity for up to 350 users.

Key Features

• High-Capacity Performance: Powered by a 1.35 GHz dual-core processor and 512 MB RAM, delivering 1.5 Gbps throughput for seamless high-speed data handling.
• Massive Device Management: Operates as a versatile Wireless Controller capable of managing up to 150 APs in routing mode and 500 APs in AC mode.
• Integrated PoE+ Power: Features 8 dedicated RJ45 ports with a 110W total PoE budget to power IP cameras, VoIP phones, and Access Points directly.
• Advanced VPN Networking: Supports high-speed secure tunneling via WireGuard (300 Mbps), IPsec, and OpenVPN, alongside SD-WAN capabilities for multi-site connectivity.
• Comprehensive Security & UBM: Robust User Behavior Management (UBM) with application control, flow management, and multi-factor authentication (Portal, SMS, Voucher).
• Intelligent Load Balancing: Optimized WAN utilization with support for up to 4 WAN ports and policy-based routing (PBR) for traffic efficiency.

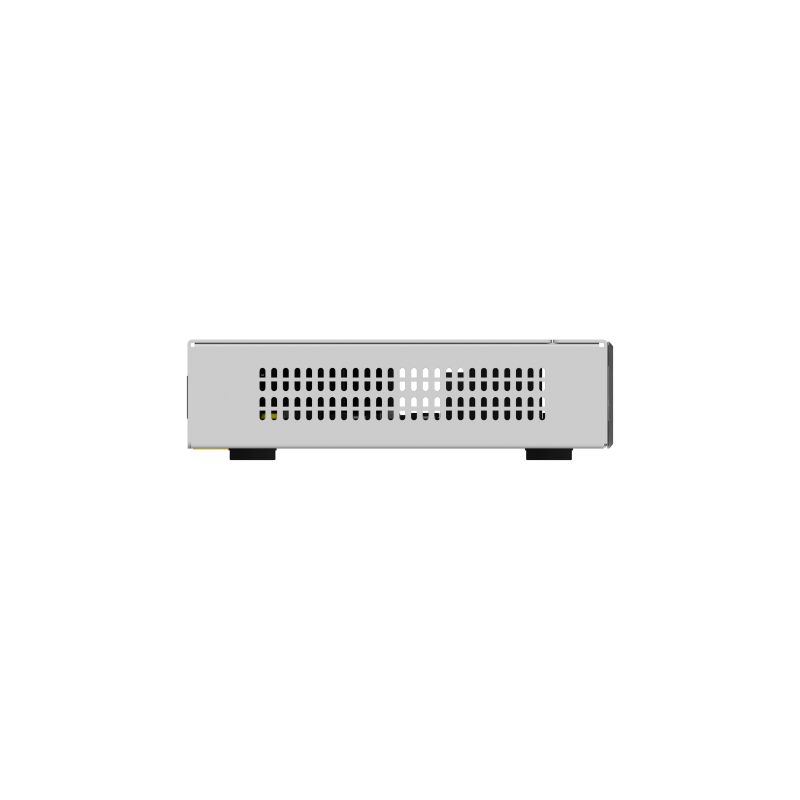

• Rugged Fanless Design: Industrial-grade metal housing with ±4 kV surge protection and natural cooling for silent, reliable 24/7 operation.
