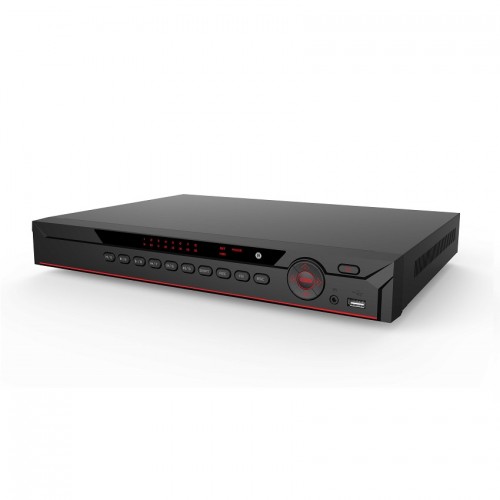

iXVR722A-16-4KL 16 Channel Penta-brid 4K 1U Digital Video Recorder

SKU: iXVR722A-16-4KL

16 Channel Penta-brid 4K 1U Digital Video Recorder

17 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

H.265+/H.265 dual-stream video compression
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Supports 32 channels of IPC access, each channel up to 8MP input; Max 64/128 Mbps Incoming Bandwidth
IoT & POS functionalities
Perimeter Protection and SMD Plus

Product Manual

No related firmware found.

Additional information

Main Processor	Embedded Processor
Operating System	Embedded LINUX
Analog Camera Input	16 Channel , BNC
HDCVI Camera	4K , 6MP , 4MP , 1080P@25/30fps , 720P@50/60fps , 720P@25/30fps
AHD Camera	5MP , 4MP , 3MP , 1080P@25/30 , 720P@25/30fps
IP Camera Input	16+16 Channel, each channel up to 8MP
Compression	H.265+/H.265/H.264+/H.264
Recording Resolution	4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF
Bit Rate	32Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Audio Bit Rate	64Kbps Per Channel
Playback	16CH: 1/4/9/16
Internal HDD	2 SATA Ports, up to 10TB capacity for each disk
USB/ RS232/ RS485	USB: 2 USB Ports (1 USB 2.0 , 1 USB 3.0) RS232: N/A RS485: 1 Port, for PTZ Control
Channels	16 Channel
HDD Support	2 HDD
Case	1U
Power	DC 12V
Power Consumption	16CH: <15W (Without HDD)
Dimensions	1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
Net Weight	1.8kg (3.70 lb) (without HDD)
Gross Weight	3.2kg (7.05lb)
Installation	Desktop installation
Certifications	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
