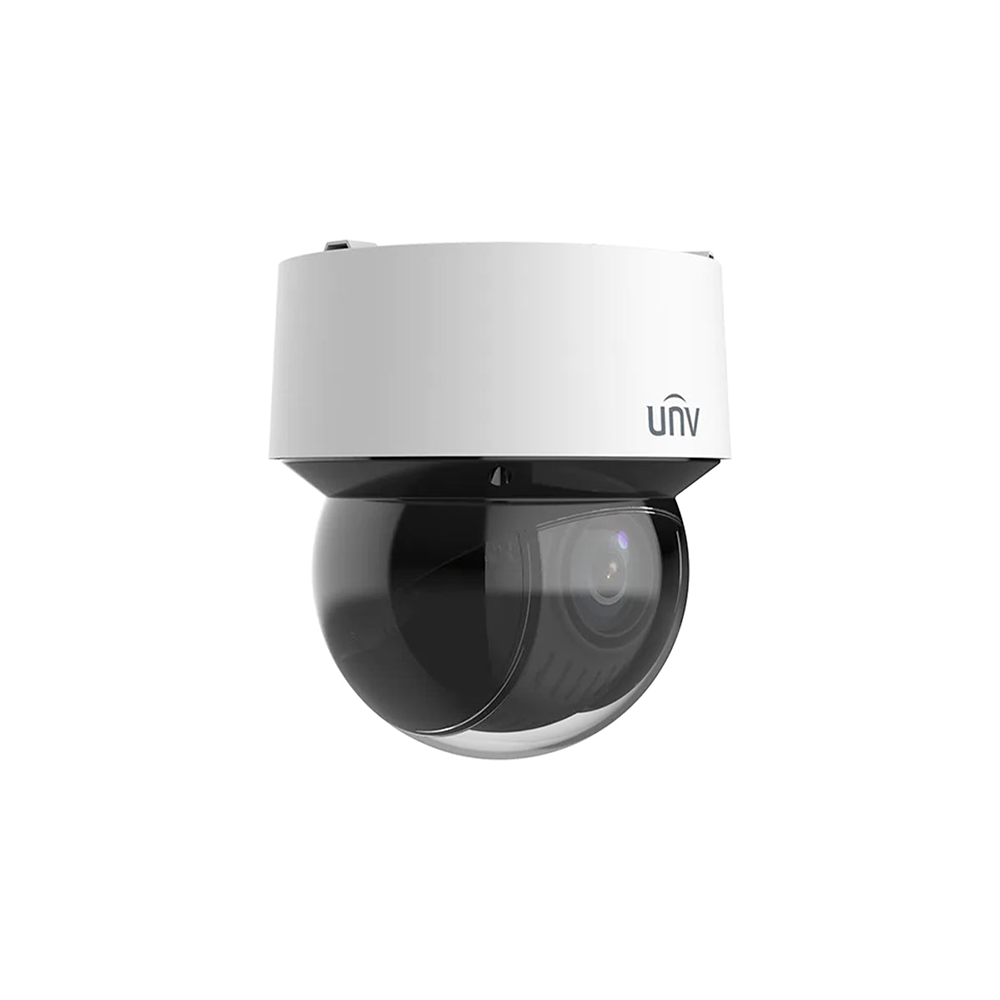

IPC6434LR-X10-VG1 4MP 10X LightHunter Network PTZ Dome Camera

Name: IPC6434LR-X10-VG1 4MP 10X LightHunter Network PTZ Dome Camera
Brand: UNV
SKU: IPC6434LR-X10-VG1

SKU: IPC6434LR-X10-VG1

4MP 10X LightHunter Network PTZ Dome Camera

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

High quality image with 4MP,1/2.9″ CMOS sensor
2688*1520@30fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Dual streams
10X optical zoom
LightHunter technology ensures ultra-high image quality in low illumination environment
Smart IR, up to 100m (328ft) IR distance
DC12V±10% or PoE+ (IEEE 802.3at)
Alarm 2 in and 1 out, audio 1 in and 1 out
IP66 ingress protection
IK10 vandal resistant

Product Manual

No related firmware found.

Additional information

Sensor	1/2.9" CMOS
Min. Illumination	Colour: 0.005 Lux (F1.78 , AGC ON) 0 Lux with IR
Camera Resolutions	4 MP
Camera Style	Dome
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
WDR	120 dB
S/N	>56 dB
Focal Length	5.5 to 55 mm
Iris	F1.78-F3.73
Illumination Distance (IR)	Up to 100m (328 ft) IR range
IR On/Off Control	Auto/Manual
Wavelength	850nm
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD , up to 512 GB
Network Storage	ANR , NAS (NFS)
Network	1*RJ45 10M/100M Base-TX Ethernet
Power	DC12V(±10% , 3A) , PoE+(IEEE 802.3at)
Power Consumption	Max 23W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø 167 x 181mm (Ø 6.6” x 7.1”) (Ø x H)
Weight	2.3Kg(5.07lb)
Surge Protection	6 KV
Protection	IK10 , IP66
