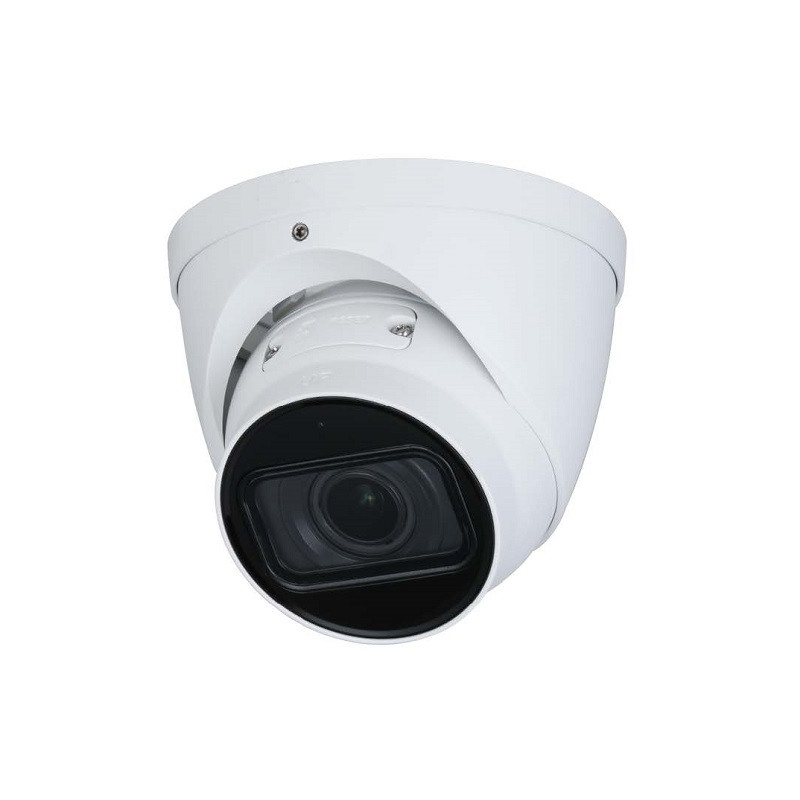

IPC-EB284T-IR-ZS 8MP LITE IR VARI-FOCAL EYEBALL NEWORK CAMERA

SKU: IPC-EB284T-IR-ZS

8MP LITE IR VARI-FOCAL EYEBALL NEWORK CAMERA

10 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

8MP, 1/2.7″ CMOS image sensor, low illuminance, high image definition
Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 40 m
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal ac- cess, voltage detection
Supports max. 256 GB Micro SD card
12V DC/POE power support
IP67 protection

Product Manual

No related firmware found.

Additional information

Camera Resolutions	8 MP
Image Sensor	1/2.7" Progressive Scan CMOS
Effective Pixels	3840(H)×2160(V)
ROM/ RAM	128 MB/256 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.008 Lux@F1.5
IR Distance	40 m
Pan/Tilt/Rotation Range	Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Video Bit Rate	H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps
Digital Noise Reduction	3D DNR
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
Camera Style	Eyeball
Lens Type	Varifocal Lens
Lens Mount	Φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Pan: 113°–31°/ Tilt: 58°–17°/ Diagonal: 138°–36°
Edge Storage	Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Power	12V DC/PoE (802.3af)
Power Consumption	< 7.6W
Protection	IP67
Casing	Metal
Dimensions	108.3 mm × Φ122 mm (4.26" × Φ1.80")
Gross Weight	0.88 kg (1.94 lb)
