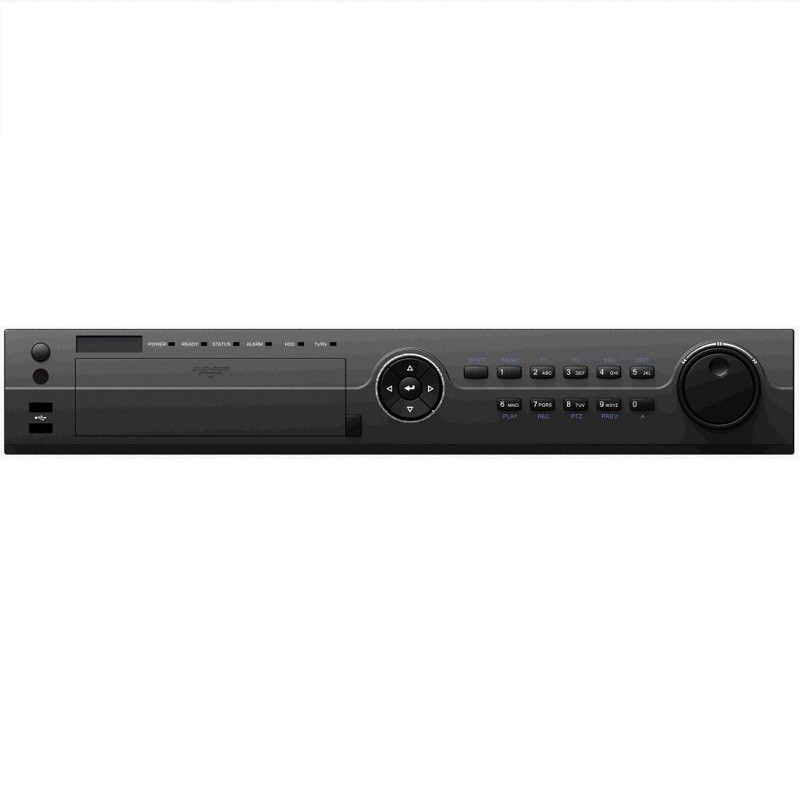

AR526-32 32 Channel 8MP H.265+ 1.5U 4HDD Bay TVI XDVR

Appearance Design

• Typical chassis design to guarantee the low noise and environmental protection of the device
• Front slot for insertion of DVD-R/W with bracket to make it more convenient to install and maintain

Video Input and Transmission

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 8 MP IP cameras input
• Long distance transmission over UTP and coaxial cable

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 5 MP resolution
• Supports POS triggered recording and POS information overlay
• Video Output
• Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
• Separate CVBS output

Storage and Playback

• Four SATA interfaces (up to 8 TB capacity per HDD) and one eSATA interface
• Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
• 16-ch synchronous playback
• Smart search for efficient playback
• Supports playback by main stream, or sub-stream for IP cameras
• Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Supports line crossing detection and intrusion detection of all channels and sudden scene change detection of 2-ch

analog cameras

• Supports people counting and heat map functions for 1-ch analog camera
• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Two RJ45 10M/100M/1000M Ethernet network interface
• Output bandwidth limit configurable
