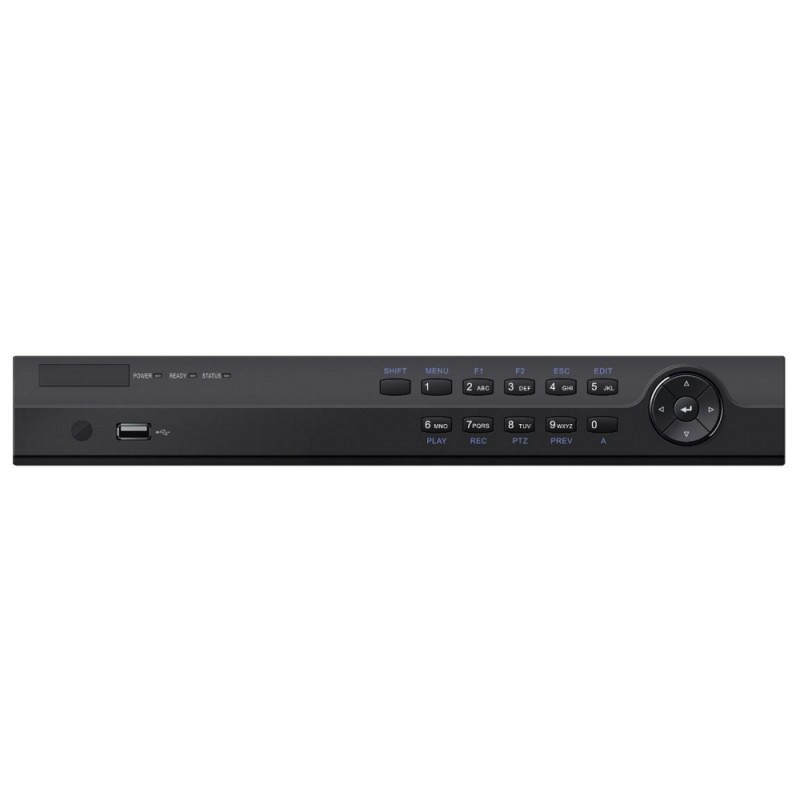

AR326-8/A 8 CHANNEL H.265 5 MP 1U 2HDD BAY TVI XDVR

Video Input and Transmission

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 4-ch 8 MP IP cameras input
• 8 MP HDTVI video input
• Support Audio over coax
• Defogging function enabled for the supported analog cameras
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 5 MP resolution

Video Output

• Simultaneous HDMI/VGA output
• HDMI output at up to 4K (3840 × 2160)
• Separate CVBS output

Storage and Playback

• 2 SATA interfaces (up to 8 TB capacity per HDD)
• 8ch synchronous playback
• Smart search for efficient playback
• Support the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Support line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
• VCA information overlay in live view and smart playback
• VQD (Video Quality Diagnostics)
• Support PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• GuardingVision & DDNS (Dynamic Domain Name System) for easy network management
• 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface for AR326-8
• Output bandwidth limit configurable
