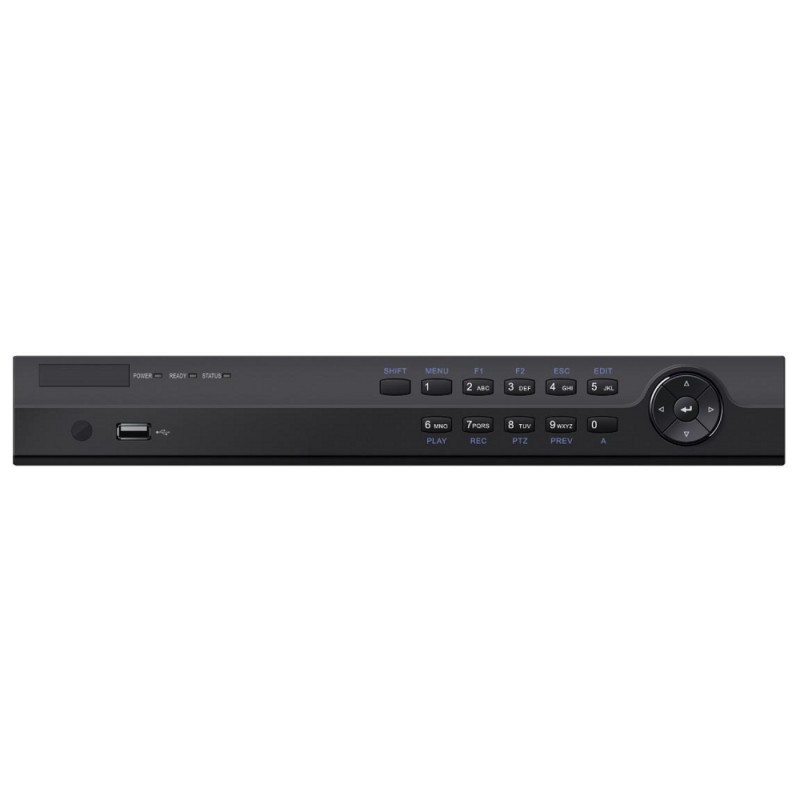

AR326-16/A 16 CHANNEL 8MP TVI HD DVR

SKU: AR326-16/A

16 CHANNEL 8MP TVI HD DVR

18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Key Feature

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 8/16/32-ch IP camera inputs (up to 8 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
  • Up to 10 TB capacity per HDD

Compression and Recording

  • H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Recording at up to 8 MP lite resolution

Storage and Playback

  • 2 SATA interfaces
  • Smart search for efficient playback
  • Support the third party cloud storage

Smart Function

  • Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • Support line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection

Network & Ethernet Access

  • Guarding Vision & DDNS (Dynamic Domain Name System) for easy network management
  • Max. 64/128 Mbps incoming bandwidth and output bandwidth limit configurable

Download

Product Manual

No related firmware found.
Additional information
Channels

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Video Bit Rate

32 Kbps to 10 Mbps

Audio bit rate

64 Kbps

IP Video Input

8-ch

Analog video input

16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Audio input

4-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable

Synchronous playback

16-ch

Total bandwidth

128 Mbps

HDD Support

Capacity

Up to 10 TB capacity for each disk

Power

DC 12V

Consumption (without HDD)

≤ 25 W

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

10% to 90%

Dimensions

380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)

Weight (without HDD)

≤ 2 kg (4.4 lb)
