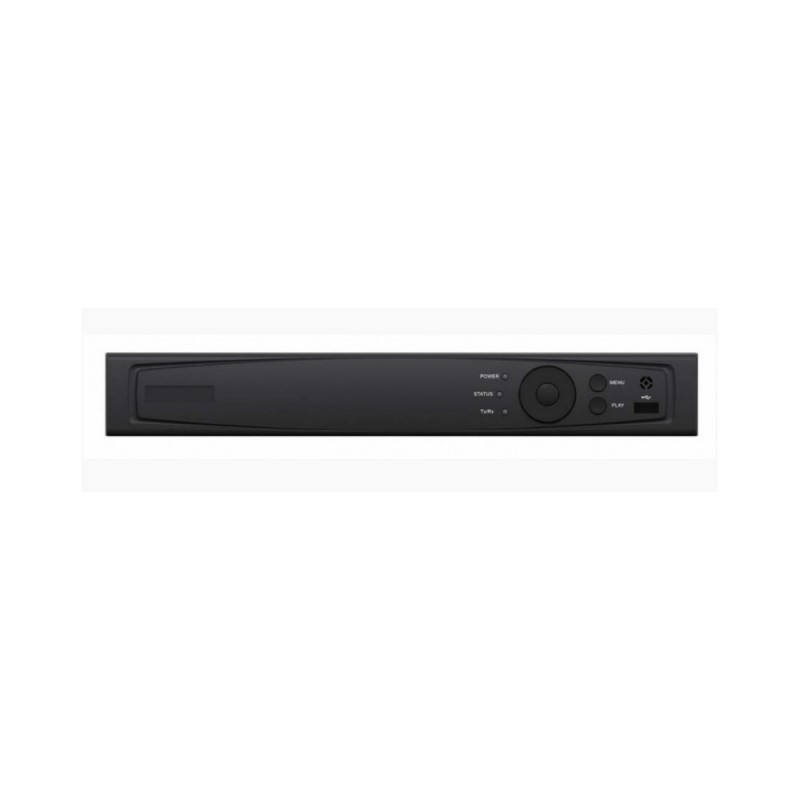

AR324-4

Please Log in For Pricing

TVI HD DVR

SKU: AR324-4 Categories: ,
Features

Description

Video Input and Transmission

  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • 1ch 4 MP IP cameras input
  • Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

  • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Up to 3 MP resolution for recording
  • Support real-time 1080p lite and when enabled, the image effect is similar with 1080p

Video Output

  • Simultaneous HDMI/VGA output
  • HDMI output at up to 4K (3840 ? 2160) resolution for AR324-16
  • Separate CVBS output

Storage and Playback

  • 1 SATA interfaces (up to 6 TB capacity per HDD)
  • 4ch synchronous playback
  • Smart search for efficient playback
  • Support 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

  • Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • AR324-4 support 2-ch line crossing detection and intrusion detection
  • VQD (Video Quality Diagnostics)
  • Support PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

  • GuardingVision & DDNS (Dynamic Domain Name System) for easy network management
  • 1 RJ45 10M/100M Ethernet network interface for AR324-4
  • Output bandwidth limit configurable
Specifications
General
Power Supply DC12V, PoE (802.3af)
Dimensions Φ70mm× 66mm× 155mm
Consumption (without hard disks) ≤ 10W
Weight (without hard disks) ≤ 1 kg
Working temperature (video recorder) -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working humidity (video recorder) 10 % ~ 90 %
Video/Audio input
IP Video Input 8-ch
Video compression(DVR) H.264
Analog video input(DVR) 24-chBNC interface (1.0Vp-p, 75 Ω)
HDTVI input 720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS
AHD input 1080p/30Hz, 1080p/25Hz
HDCVI input 720p25, 720p30, 1080p25, 1080p30
CVBS input Support
Audio compression(DVR) G.711u
Audio input(DVR) 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
HDMI/VGA Output 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Encoding Resolution Main stream: 1080P (non-real-time) / 720P / WD1 / VGA / 4CIF / CIFSub-stream: WD1 (non-real-time)/ 4CIF(non-real-time) / CIF / QCIF / QVGA
Stream Type Video, Video & Audio
Frame rate(video recorder) Main stream: 50 fps (P) / 60 fps (N)Sub-stream: 50 fps (P) / 60 fps (N)
Audio output(video recorder) 1-ch, RCA (Linear, 1kΩ)
Video bit rate(DVR) 32 Kbps-6 Mbps
Audio bit rate(DVR) 1-ch, RCA (Linear, 1KΩ)
Dual stream(DVR) Support
Decoding
Synchronous Playback 16-ch
Network(NVR)
Remote Connections 128
Network management
Network Protocols TCP/IP PPPoE DHCP EZVIZ Cloud P2P DNS DDNS NTP SADP NFS iSCSI UPnP™ HTTPS ONVIF
Hard disk
SATA 2 SATA interface for 2 HDDs
Capacity Up to 4TB for each disk
External Interface
Serial Interface 1 RS-485 (half-duplex), 1 RS-232
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Network interface (video recorder) 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
