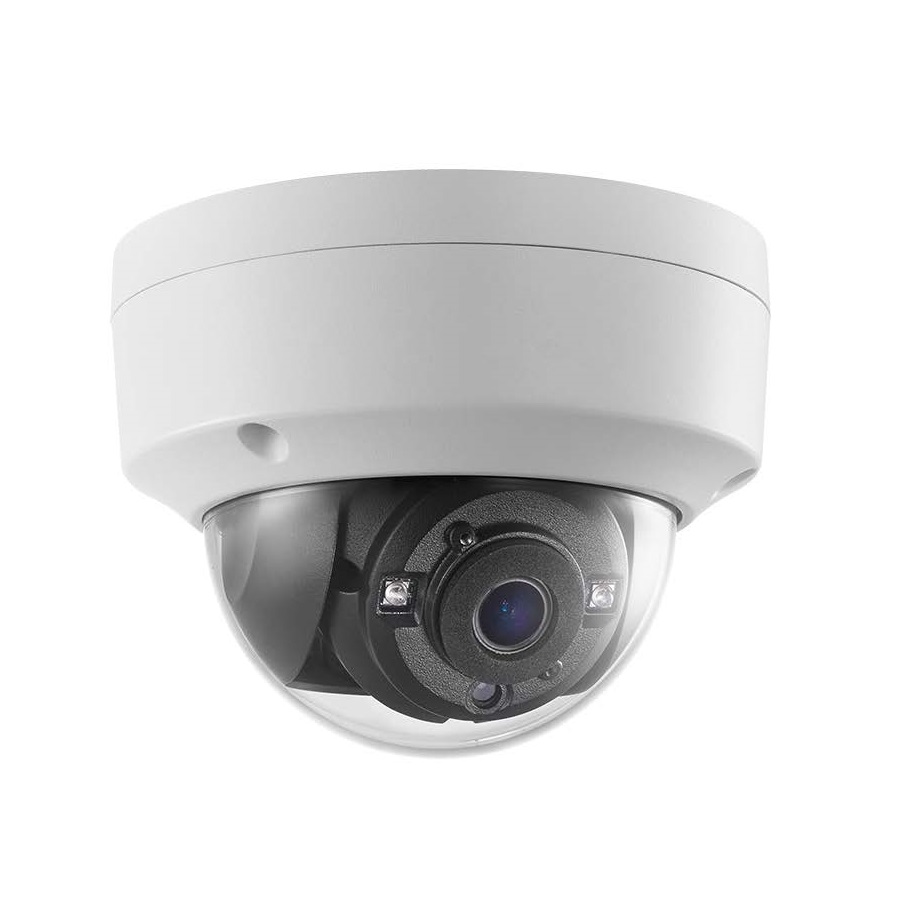

AC346-OD 5 MP Ultra-Low Light Fixed Camera
Click to enlarge

AC346-OD 5 MP Ultra-Low Light Fixed Camera

SKU: AC346-OD 2.8mm

Call for price

5 MP Ultra-Low Light Fixed Camera

Add to wishlist
Add to compare
14 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 5 MP high performance CMOS
  • 2560 × 1944 resolution
  • 2.8 mm fixed lens
  • EXIR 2.0, smart IR, up to 30 m IR distance
  • OSD menu, 3D DNR, 130 dB true WDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67, IK10
  • Up the coax (UTC‐C)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Signal System

PAL/NTSC

Max. Resolution

2560 × 1944

Minimum Illumination

0 Lux with IR

,

AGC ON)

,

Color: 0.003 Lux@(F1.2

Shutter Speed

PAL: 1/25s to 1/50000s NTSC: 1/30s to 1/50000s

Lens Size

Horizontal Field of View

98° (2.8 mm)

Lens Mount

M12

Day & Night

IR cut filter

Angle Adjustment

Pan:0°to 355°;Tilt: 0°to 75°;Rotate:0°to 355°

Synchronization

Internal synchronization

Video Output

1 HD analog output

Power

DC12V ±25%

Power Consumption

Max 5.8W

Protection

IK10

,

IP67

IR Range

Up to 30 m

Dimensions

Φ111 mm×82.4 mm(Φ4.4"×3.2")

Weight

Approx.500 g(1.10 lb.)
