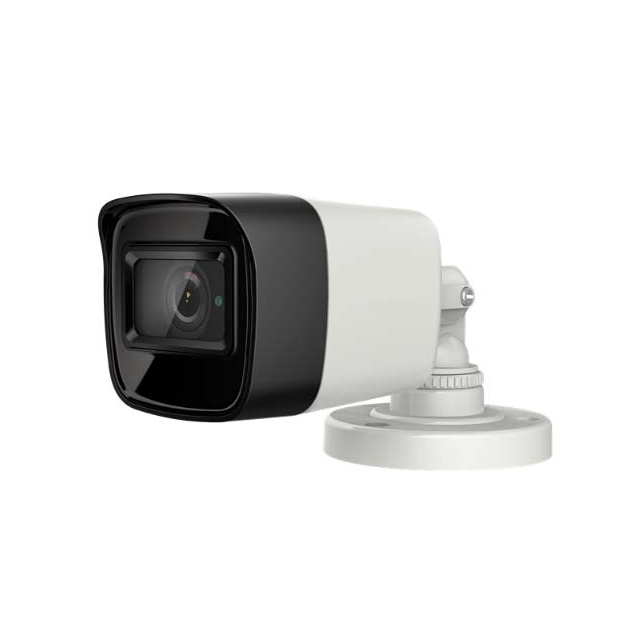

AC318-MB 8 MP Smart IR Fixed Bullet Camera
Click to enlarge

AC318-MB 8 MP Smart IR Fixed Bullet Camera

SKU: AC318-MB

8 MP Smart IR Fixed Bullet Camera

Add to wishlist
Add to compare
12 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 8.29 MP high performance CMOS
  • 3840 × 2160 resolution
  • 2.8 mm, 3.6 mm fixed lens
  • EXIR 2.0, smart IR, up to 30 m IR distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • Up the coax (UTC‐C)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Image Sensor

8.29 Megapixel Progressive Scan CMOS

Signal System

PAL/NTSC

Camera Style

Max. Resolution

3840 × 2160

Minimum Illumination

0Lux with IR

,

AGC ON)

,

Color: 0.01Lux@(F1.2

Shutter Speed

PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s

Lens Size

,

Horizontal Field of View

102.2°(2.8 mm),79°(3.6 mm)

Lens Mount

M16

Day & Night

IR cut filter

Angle Adjustment

Pan:0°to 360°;Tilt: 0°to 180°;Rotate:0°to 360°

Synchronization

Internal synchronization

WDR

105 dB

Video Output

1 HD analog output

Power

DC12V ±25%

Power Consumption

Max.5.3 W

Protection Level

IP67

Material

Metal

IR Range

Up to 30 m

Dimensions

58 mm×61 mm×159.8 mm(2.28"×2.40"×6.42")

Weight

Approx.345 g(0.76 lb.)
