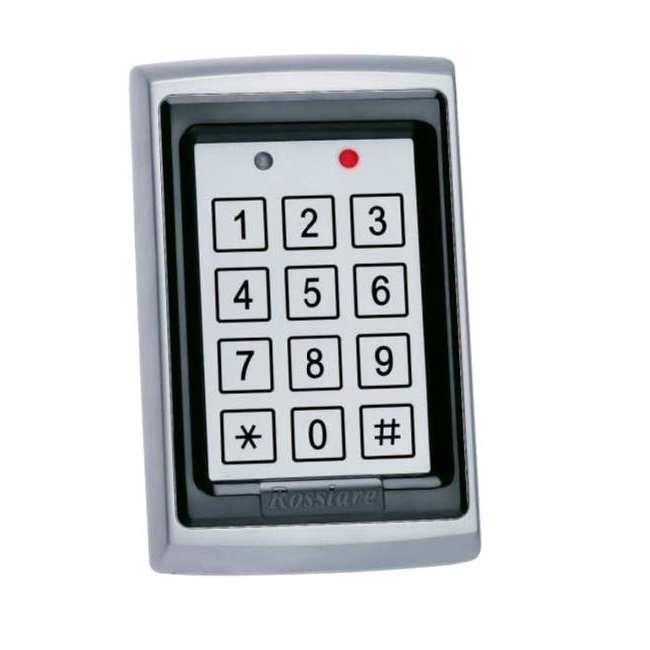

AC-Q44 ANTI-VANDAL PIEZO PIN & PROX STANDALONE CONTROLLER

SKU: AC-Q44

ANTI-VANDAL PIEZO PIN & PROX STANDALONE CONTROLLER

14 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Built-in 125 kHz RFID card reader
500 users can have PIN and / or RFID credentials to grant access
Smooth attractive design, with anti-vandal construction
Highly-visible blue backlit keypad
3 operational Security Levels can be selected with special PIN codes
Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts
2 tri-colored LEDs and integral sounder for programming and operation
Wide range of low voltage AC/DC power input

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer
Input Current	Standby: 65 mA, at 12 VDC Maximum: 125 mA, at 12 VDC
Relay Outputs	Lock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C.
Tamper	Optical back tamper sensor, O.C. active low 32 mA max sink current
Inputs	REX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact, 10 programmable modes
Capacity	500 users, single/dual code each
Keypad	3×4 keys for local programming and 4- to 8-digit PIN codes entry
User Levels	Normal, Secure, Master
Security Modes	Normal, Bypass, Secure
Audio/Visual	Interface for BL-D40 (bell, chime, and siren enunciator) Two tri-color LED indicators, built-in sounder
Operating Environment	Water resistant, suitable for outdoor use, IP65 rated
Dimensions	120 x 76 x 22 mm (4.72 x 3 x 0.85 in.)
Weight	521 g (1.18 lbs)
PRODUCT WARRANTY	5-year Limited Product Warranty
