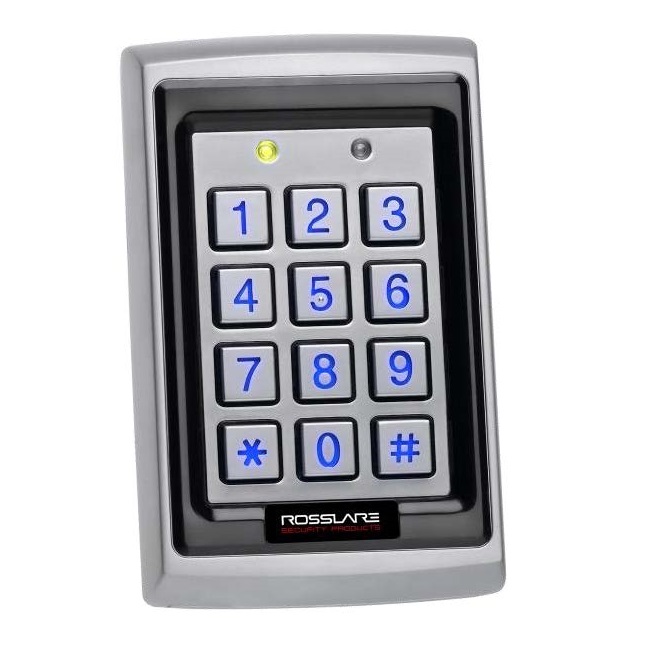

AC-Q42SB ANTI-VANDAL SLIM BACKLIT PIN & PROX STANDALONE CONTROLLER

SKU: AC-Q42SB

ANTI-VANDAL SLIM BACKLIT PIN & PROX STANDALONE CONTROLLER

19 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Built-in 125 kHz RFID card reader
500 users can have PIN and / or RFID user credentials for granting access
Highly-visible blue backlit keypad
Smooth attractive design, with anti-vandal construction
3 operational Security Levels can be selected with special PIN codes
Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong attempts
2 tri-colored LEDs and integral sounder for programming and operation
Removable terminal blocks are used for connecting the wires to the unit

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	12 to 24VDC, from a regulated power supply 16 to 24VAC, from a transformer
Input Current	(Heater Off) Standby: 85mA, Maximum: 145mA, at 12VDC (Heater On) Standby: 565mA, Maximum: 625mA, at 12VDC
Relay Outputs	Lock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C.
Tamper	Optical back tamper sensor, O.C. active low 32mA max sink current
Inputs	REX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
Capacity	500 Users, single / dual code each
Keypad	3×4 Keys for local programming and 4 to 8 digit PIN codes entry
User Levels	Normal / Secure, Master
Audio/Visual	Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, Built-in sounder
Security Modes	Normal, Bypass and Secure
Design	Epoxy potted, fully sealed in a rugged metal slim enclosure, highly strong construction, blue backlit metallic keys. Suitable for extremely harsh environments.
Operating Environment	Water resistant, suitable for outdoor use, meets IP65
Dimensions	120 x 76 x 22 mm (4.72 x 3 x 0.85 in)
Weight	521g (1.18 lbs)
PRODUCT WARRANTY	5-Year Limited Product Warranty
