AC-825IP-U PCBA BOARD FOR AC-825IP

SKU: AC-825IP-U

PCBA BOARD FOR AC-825IP

20 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Up to 58 doors, 100,000 users, and 500,000 history log entries (FIFO) per ACU
Onboard TCP/IP networking to the AxTraxNG or AxTraxPro server, bidirectional push communication for enhanced data transmission speed and reliability
Supports SIA Open Supervised Device Protocol (OSDP V2) including OSDP Secured Channel Protocol to let the AC-825IP controller connect to any peripheral device that supports OSDP1
AES 256-bit symmetric data encryption to the AxTraxPro server to make sure the data is secure
4 auxiliary inputs and 2 auxiliary outputs
One onboard expansion slot and an additional 12 expansion boards via OSDP V2 including secure channel protocol (R/S/D/P-805)
R-805 – 16 outputs
S-805 – 16 inputs
D-805 – 4-door expansion
P-805 – 16 inputs and 8 outputs

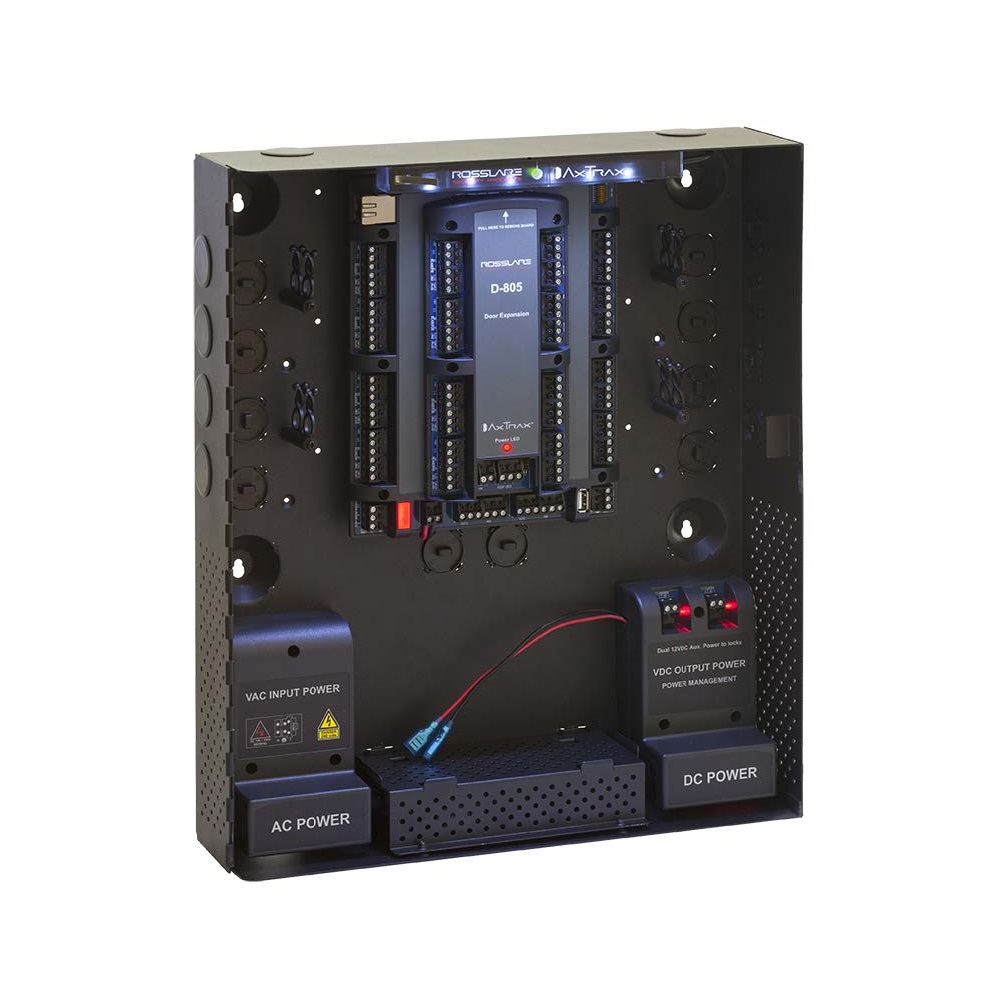

AC-825IP can be installed in a ME-1515 metal enclosure
Holds 2 expansion boards or an AC-825IP board
C14 power plug and supports Pull-Safe™ cable locks for secured wiring
Built-in tamper and light bar
DIN rail mounting option for space saving with no additional enclosure needed
Power management board indicates battery and power status

Product Manual

No related firmware found.

Additional information

Enclosure	ME-1515
Enclosure SMPS	Input: 90 to 265VAC, 50–60Hz, Switch mode power management board Output: 12VDC, 4A
PCBA Input Power	12VDC,2A, regulated power management board
Battery Charger	12V sealed lead acid (SLA) up to 7Ah
Relays5-A, Form-C	6
Connectivity	TCP/IP OSDP1 Wiegand
Capacity	Up to 100,000 users
History Event Log Size	Up to 500,000 entries
Expansion	One onboard expansion slot and an additional 12 expansion boards via OSDP V2 (R/S/D/P-805）
Secured Communication2	OSDP V2 including secure channel AES 256-bit symmetric data encryption
PCBA/Expansion Board Dimensions	224 x 164mm (8.8 x 6.46 in.)
PCBA/Expansion Board Weight	400 g(14.1 oz)
Enclosure Dimensions	346 x 404x101mm (13.6 x 15.9 x 3.9 in.)
Enclosure Weight	4.6 kg (10.1 lb)
