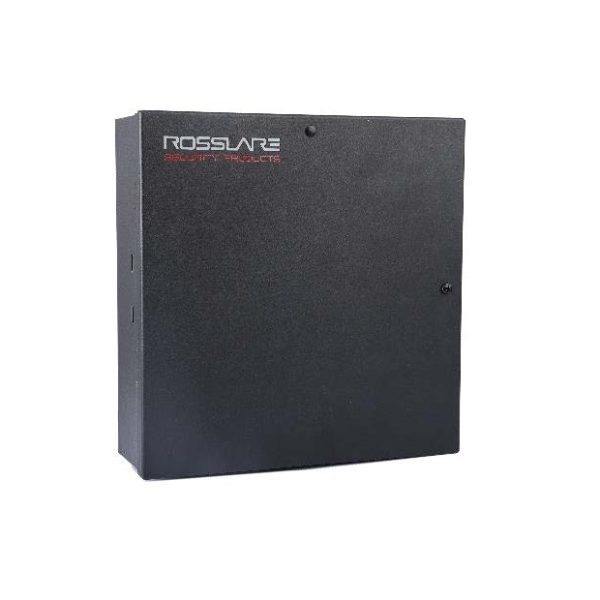

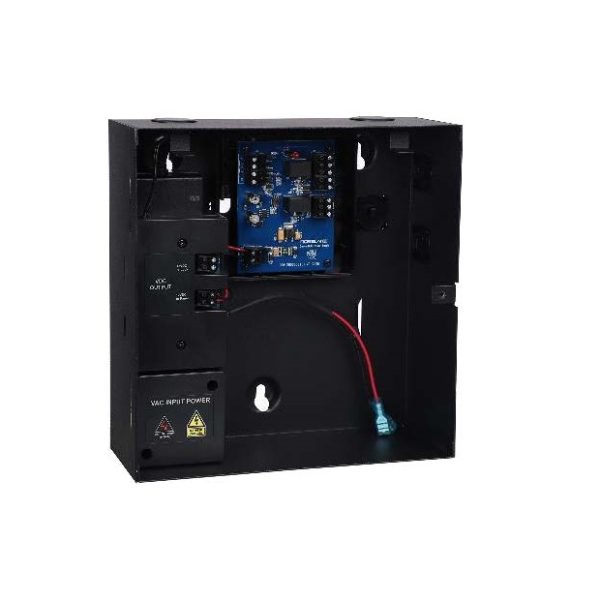

PS-C25TB-U Power Management Enclosure with built in Secure Relay I/O Module
Login to see prices SKU: PS-C25TB-U
| SMPS Input | 110 – 240 VAC, 50/60 Hz, 1.5 A |
|---|---|
| SMPS Output | 15 VDC, 4 A |
| PM-05 Input | 15 VDC, 4 A |
| PM-05 Output | 14.5 VDC, 2 A (CH1/CH2) |
| PM-05 Battery Charge current | 1.5 A |
| MD-25TB Input | 12 VDC, 2 A |
| MD-25TB Output | 12VDC 1 A max combined ACU output and lock power supply |
| MD-25TB Lock Output | 5 A Form C, SPDT Relay Max Switched Current: 5 A Max Switched Voltage: 150 VDC or 300 VAC UL Rating: 5 A at 30 VDC or 5 A at 125 VAC |
| MD-25TB Auxiliary Output | 5 A Form C, SPDT Relay Max Switched Current: 5 A Max Switched Voltage: 150 VDC or 300 VAC UL Rating: 5 A at 30 VDC or 5 A at 125 VAC |
| MD-25TB Speaker Output | 0.25 W, 8 Ω (minimum) |
| MD-25TB LED indicators | Power Status • Red shows power on • Off shows power off |
| Operating Environment | Indoor |
| Enclosure Dimensions | 228 x 224 x 84 mm (9.0 x 8.8 x 3.3 in.) |
| Weight | 2.21 kg (4.87 lb) |
| COMPATABILE DEVICES | Rosslare AYC readers |
| PRODUCT WARRANTY | 2-year limited product warranty |
PX-13 0-30VDC Rugged Piezoelectric Switches Metal Enclosure
Login to see prices SKU: PX-13
| Color | Black ,Blue ,Gold ,Natural ,Red ,White |
|---|---|
| Switch Voltage | 0 VDC to 30 V AC/DC |
| Switch Current | 1 A (max) |
| Wire Leads | 2 x 24 AWG 280 mm (11.0 in.) wires |
| 2-Wire Interface | No polarity |
| Button Life | Up to 20 million cycles |
| Impulse Time | >50 ms (on actuation) |
| Operating Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 0% to 99% Wet – Meets IP68 (waterproof) |
| Operating Environment | Indoor and Outdoor |
| Dimensions | Height: 19.5 mm (0.8 in.), Diameter: 29.5 mm (1.2 in.) |
| Standard Thread | 22 mm (0.9 in.) |
| Weight | 22 g (0.8 oz) |
| PRODUCT WARRANTY | Lifetime Warranty |
PX-23 5-12VDC Rugged Piezoelectric Switches Metal Enclosure
Login to see prices SKU: PX-23
| Voltage | 5 VDC to 12 VDC (Max) |
|---|---|
| Input current | < 1A |
| Contact Resistance | <100 Ohm |
| Wire Leads (Switch Output) | 2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) Yellow wires |
| '+VDC & Ground | 12VDC Red and Black wires for LED Power |
| Red LED Operation | Ground Brown wire to activate RED LED |
| Green LED Operation | Ground Green wire to activate GREEN LED |
| Button life | Up to one billion cycles |
| Impulse Time | >50 ms (on Actuation) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 0% to 99% Wet – Meets IP68 (Waterproof) |
| Operating Environment | Indoor and Outdoor |
| Dimensions | Height: 19.5 mm (0.76 in.), Diameter: 29.5 mm (1.16 in.) |
| Standard Thread | 22 mm (0.86 in.) |
| Weight | 22 g (0.0484 lbs) |
| SYSTEM COMPONENTS | The Piezoelectric switches are compatible with Rosslare’s controllers security systems and many third party systems. |
| PRODUCT WARRANTY | Lifetime Warran |
PX-34 5-30VDC Rugged Piezoelectric Switches Metal Enclosure
Login to see prices SKU: PX-34
| Color | Black ,Blue ,Gold ,Green ,Natural ,Red ,Yellow |
|---|---|
| Power Supply Voltage | 12 VDC |
| Voltage | 5 VDC to 30 VDC (max) |
| Input Current | < 1A |
| Contact Resistance | <100 Ohm |
| Wire Leads (Switch Output) | 2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) yellow wires |
| Red LED Operation | Ground brown wire to activate red LED |
| Green LED Operation | Ground green wire to activate green LED |
| Button Life | Up to one billion cycles |
| Impulse Time | >50 ms (on actuation) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Environment | Indoor and outdoor |
| Dimensions | Height: 19.5 mm (0.76 in.), Diameter: 29.5 mm (1.16 in.) |
| Standard Thread | 22 mm (0.86 in.) |
| Weight | 22 g (0.0484 lbs) |
| SYSTEM COMPONENTS | The Piezoelectric Toggle switches are compatible with Rosslare’s controllers security systems and many third-party systems. |
| PRODUCT WARRANTY | Lifetime Warranty |
PYR-2023 Dual PIR/Microwave Motion Detector with Anti-Masking
Login to see prices SKU: PYR-2023
| Lens type | Spherical with mirror SSFL look-down and adapter for curtain mask |
|---|---|
| Field of view | 115˚ horizontal; 100˚ vertical |
| Max coverage | 12 m (39 ft) radius |
| Vertical adjustment | No |
| Mounting height | Selectable from 2.0 to 2.8 m |
| Input voltage | 9-16 VDC |
| Input current | 15mA @ 12VDC nominal |
| LEDs | Red – Alarm; Yellow – PIR; Green – MW |
| Alarm signals | Red LED two seconds, alarm output (35V DC100mA max N.C.) |
| Microwave detector | Doppler technology |
| MW Frequency | 10.525 GHz |
| MW output level | 13 dBm EIRP |
| PIR detector | Dual-element low noise pyro-electric sensor |
| Sensitivity modes | Low and high interchangeable modes, jumper selectable |
| Sensitivity | ΔT – 1.1˚C @ 0.9 m/sec (ΔT = 2˚F @ 3 ft/sec) |
| Tamper detection | Cover and optional back (jumper selectable) |
| Operating environment | Indoor use |
| Operating temperature | -10˚C to 60˚C (14˚F to 140˚F) |
| Dimensions | 127 x 80 x 63 mm (5 x 3.15 x 2.48 inch) |
| Weight | 130 g (0.287 lbs) |
PYR-3021 Wired Ceiling PIR Motion Detector UL & CENELEC Certified
Login to see prices SKU: PYR-3021
| Lens type | 360˚full vision Fresnel lens |
|---|---|
| Coverage | 7 m (23 ft.) diameter @ 2.4 m (94.5 inch) height |
| Optical filter | White light protection |
| Field of view | 360˚ |
| Mounting height | Mounting height |
| Input voltage | 9-16 VDC |
| Input current | 10mA @12 V DC nominal |
| Alarm signals | Red LED light for two seconds (push button setting) |
| Detector | Quad-matrix pyro IR element (IR filter 5um÷14um) |
| Sensitivity | Three levels fuzzy logic (jumper setting) |
| Tamper detection | Back and front cover tampers |
| Supervisory signals | Electronic malfunction, temperature out of range (by flashing LED) |
| Operating environment | Indoor us |
| Operating temperature | -10˚C to 60˚C (14˚F to 140˚F) |
| Dimensions | 70.7 x 30.85 mm (2.783 x 1.215 inch) |
| Weight | 84 g (2.96 oz) |

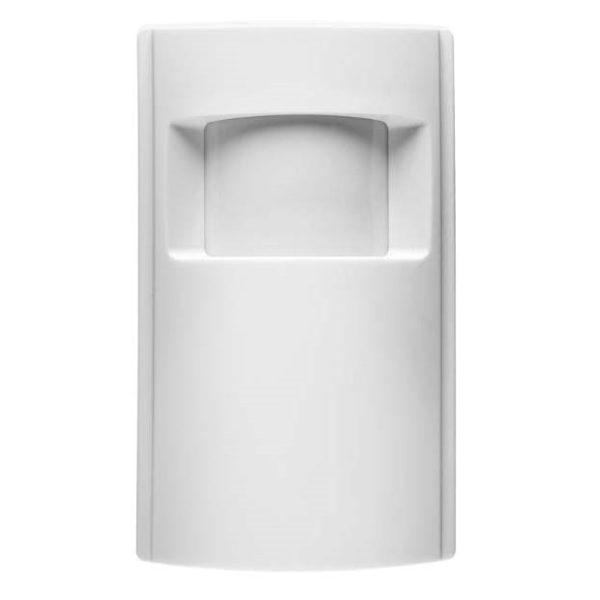

PYR-4122 Analog Hardwire Pet Immune Passive Infrared Motion Detector
Login to see prices SKU: PYR-4122
| Operating Voltage Range | 9–16 VDC |
|---|---|
| Input Current, Max. | Standby: 15 µA Maximum: 10 mA |
| Alarm Signaling | Red LED 2 seconds on event transmission |
| Alarm Output | Solid states relay N.C. |
| Alarm Period | 2–3 seconds |
| Temperature Compensation | Analog single slope (+/- 1°C) |
| Speed Detection | 0.2 m/s ÷ 5 m/s∆t = 1.1°C (0.66 ft/s ÷ 16.4 ft/s∆t = 2°F) |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Operating Humidity | 0 to 95% (non-condensing) |
| Operating Environment | Indoor use |
| Dimensions | 110 x 64 x 31.4 mm (4.3 x 2.5 x 1.2 in.) |
| Weight | 90 g (3.2 oz) |
| SYSTEM COMPATIBILITY | AuraSys P-6 AuraSys L-2/K, L-4/K, L-6 |
| PRODUCT WARRANTY | 2-Year Limited Product Warranty |
