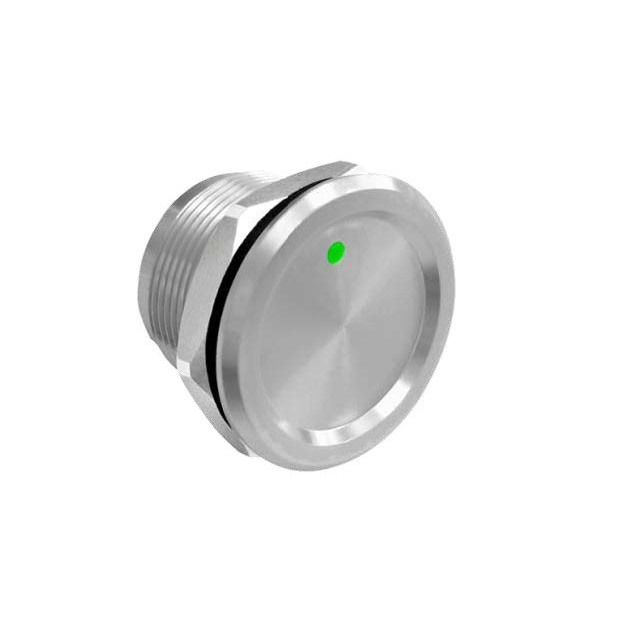

PX-23 5-12VDC Rugged Piezoelectric Switches Metal Enclosure

SKU: PX-23

5-12VDC Rugged Piezoelectric Switches Metal Enclosure

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

MAIN FEATURES

Easy to install and use
Light indicator switch colors between red and green when the button is pressed
Wide range of input voltage from 5V to 12V DC
Piezoelectric technology can sense actuation within a solid metal enclosure
Low temperature operation down to -40 degrees Celsius
Meets IP68, fully potted design resists penetration of dirt and dust and water
Available in a range of seven attractive anodized Aluminum colors – Black , Natural (Mat) , Gold, Green, Red, Blue, White (silver)

PROFESSIONAL GRADE FEATURES

SMT designed electronics for higher quality, superior performance, and reduced cost
Compatible with Rosslare’s Access Controllers as a REX or a system input (Alarm or Event)
No polarity considerations for Switch wiring

Product Manual

No related firmware found.

Additional information

Voltage	5 VDC to 12 VDC (Max)
Input current	< 1A
Contact Resistance	<100 Ohm
Wire Leads (Switch Output)	2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) Yellow wires
'+VDC & Ground	12VDC Red and Black wires for LED Power
Red LED Operation	Ground Brown wire to activate RED LED
Green LED Operation	Ground Green wire to activate GREEN LED
Button life	Up to one billion cycles
Impulse Time	>50 ms (on Actuation)
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	0% to 99% Wet – Meets IP68 (Waterproof)
Operating Environment	Indoor and Outdoor
Dimensions	Height: 19.5 mm (0.76 in.), Diameter: 29.5 mm (1.16 in.)
Standard Thread	22 mm (0.86 in.)
Weight	22 g (0.0484 lbs)
SYSTEM COMPONENTS	The Piezoelectric switches are compatible with Rosslare’s controllers security systems and many third party systems.
PRODUCT WARRANTY	Lifetime Warran
