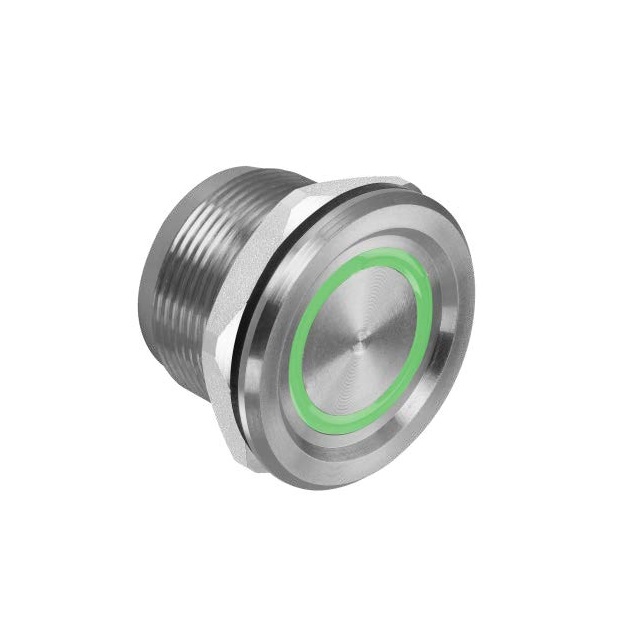

PX-34 5-30VDC Rugged Piezoelectric Switches Metal Enclosure

SKU: PX-34

5-30VDC Rugged Piezoelectric Switches Metal Enclosure

12 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

MAIN FEATURES

Easy to install and use
Light indicator switch colors between red and green when the button is pressed
Wide range of input voltage from 5 to 30 VDC
Piezoelectric technology can sense actuation within a solid metal enclosure
Low temperature operation down to -40°C
Meets IP68, fully potted design resists penetration of dirt and dust and water
Available in a range of seven attractive anodized Aluminum colors – Black , Natural (Mat) , Gold, Green, Red, Blue, White (silver)

PROFESSIONAL GRADE FEATURES

SMT designed electronics for higher quality, superior performance, and reduced cost
Compatible with Rosslare’s access controllers as a REX or a system input (Alarm or Event)
No polarity considerations for toggle switch wiring

Product Manual

No related firmware found.

Additional information

Color	Black , Blue , Gold , Green , Natural , Red , Yellow
Power Supply Voltage	12 VDC
Voltage	5 VDC to 30 VDC (max)
Input Current	< 1A
Contact Resistance	<100 Ohm
Wire Leads (Switch Output)	2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) yellow wires
Red LED Operation	Ground brown wire to activate red LED
Green LED Operation	Ground green wire to activate green LED
Button Life	Up to one billion cycles
Impulse Time	>50 ms (on actuation)
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Environment	Indoor and outdoor
Dimensions	Height: 19.5 mm (0.76 in.), Diameter: 29.5 mm (1.16 in.)
Standard Thread	22 mm (0.86 in.)
Weight	22 g (0.0484 lbs)
SYSTEM COMPONENTS	The Piezoelectric Toggle switches are compatible with Rosslare’s controllers security systems and many third-party systems.
PRODUCT WARRANTY	Lifetime Warranty
