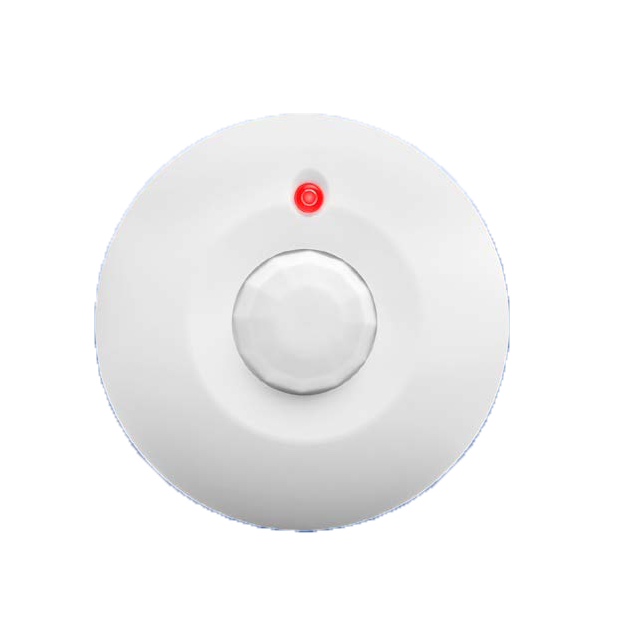

PYR-3021 Wired Ceiling PIR Motion Detector UL & CENELEC Certified

SKU: PYR-3021

Wired Ceiling PIR Motion Detector UL & CENELEC Certified

12 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 360 7m diameter coverage at 2.4 m (94.5 inch) height
  • Digital and analog motion analysis with internal ambient temperature compensation
  • High sensitivity quad element pyro-sensor, from world-leading manufacturers
  • Test and go walk test feature for
  • Screw-free cover and snap-in mount for easy installation and cover removal
  • Clear high bright LED indication
  • Attractive design, with a professional look and feel

PROFESSIONAL GRADE FEATURES

  • Selectable three sensitive levels to meet the need of environment
  • Advanced spherical high performance lens for full area monitoring
  • Draft and insect immune with a sealed chamber for optical components
  • Solid state relay: Provides a nearly unlimited lifespan, EMC resistance and silent operation
  • Meets or exceeds USA Standard UL 639, Intrusion Detection Units
  • Meets or exceeds CENELEC 50131-2-2 PIR Standard, Security Grade 2, and Environmental Grade 1

Download

Product Manual

No related firmware found.
Additional information
Lens type

360˚full vision Fresnel lens

Coverage

7 m (23 ft.) diameter @ 2.4 m (94.5 inch) height

Optical filter

White light protection

Field of view

360˚

Mounting height

Mounting height

Input voltage

9-16 VDC

Input current

10mA @12 V DC nominal

Alarm signals

Red LED light for two seconds (push button setting)

Detector

Quad-matrix pyro IR element (IR filter 5um÷14um)

Sensitivity

Three levels fuzzy logic (jumper setting)

Tamper detection

Back and front cover tampers

Supervisory signals

Electronic malfunction, temperature out of range (by flashing LED)

Operating environment

Indoor us

Operating temperature

-10˚C to 60˚C (14˚F to 140˚F)

Dimensions

70.7 x 30.85 mm (2.783 x 1.215 inch)

Weight

84 g (2.96 oz)
