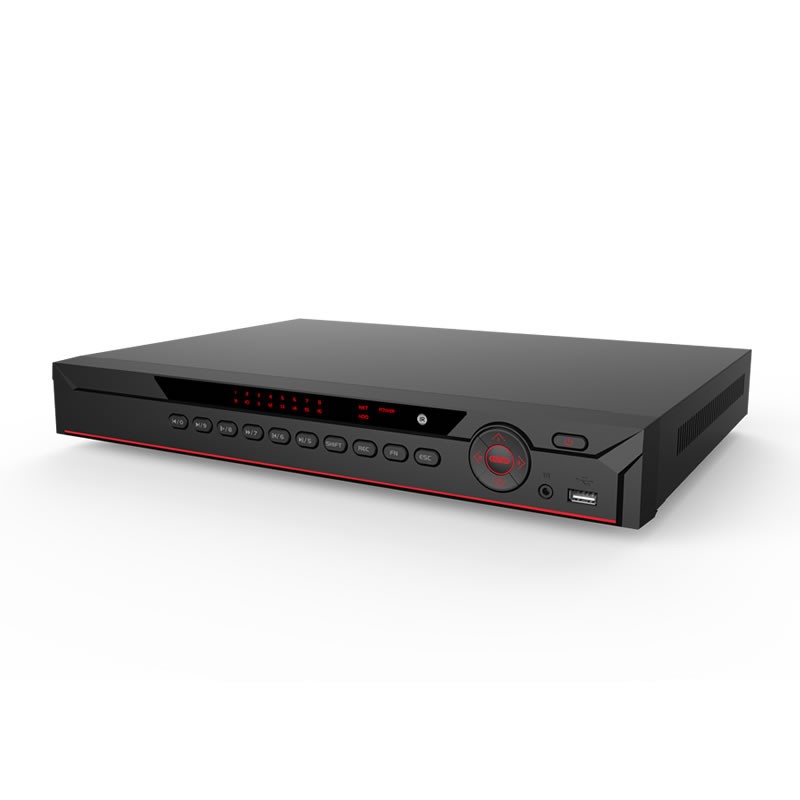

XVR522AN-16-4KL 16 Channel Penta-brid 4K 1U Digital Video Recorder

SKU: XVR522AN-16-4KL

16 Channel Penta-brid 4K 1U Digital Video Recorder

12 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

H.265+/H.265 dual-stream video compression
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 12/24 channels IP camera inputs, each channel up to 8MP; Max 96 Mbps Incoming Bandwidth
Smart Search and Intelligent Video System

Product Manual

Title	Description	Download
XVR522AN-16	XVR522AN-16	XVR522AN-16-4KL_V4.001.16.221124

Additional information

Main Processor	Embedded Processor
Operating System	Embedded LINUX
Analog Camera Input	8/16 Channel , BNC
HDCVI Camera	4K , 6MP , 4MP , 1080P@25/30fps , 720P@50/60fps , 720P@25/30fps
AHD Camera	5MP , 4MP , 3MP , 1080P@25/30 , 720P@25/30fps
IP Camera Input	8+4/16+8 Channel, each channel up to 8MP
Compression	H.265+/H.265/H.264+/H.264
Bit Rate	32Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Audio Bit Rate	64Kbps Per Channel
Resolution	HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Playback	8CH: 1/4/9 16CH: 1/4/9/16
Storage Internal HDD	2 SATA Ports, up to 10TB capacity for each disk
USB/RS232/RS485	USB:2 USB Ports (1 USB 2.0 , 1 USB 3.0) RS232: N/A RS485: 1 Port, for PTZ Control
Power	8CH:DC12V/4A 16CH:DC12V/5A
Power Consumption (without HDD)	8CH: <10W 16CH: <20W
Dimension	1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
Device with PFH101 Rack Mount Tray	483mmx281mmx56mm (19.0"x11.1"x2.2")
Gross Weight	8CH: 2.9kg (6.4 lb) 16CH: 3.1kg (6.8 lb)
Installation	Desktop installation
Certifications	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Case	1U
